A Detailed Breakdown of Gas Discharge Tubes: Types and Buying Tips

Introduction

A Gas Discharge Tube (GDT) is an electrical component that consists of two or more electrodes in a sealed envelope of either glass or ceramic material. It is then filled with a specific gas or gas mixture at a low pressure. The tube exploits the phenomenon of electric discharge in gases to serve as a voltage protection device, switch, or light source.

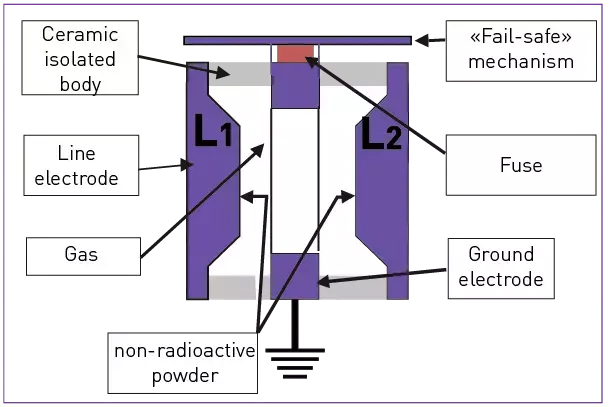

How Gas Discharge Tubes Work

Under normal and low-voltage conditions, the gas in the tube works as a nearly perfect insulator, having very high resistance. Whenever the voltage across the electrodes reaches a specific voltage called the strike or breakdown voltage, the electric field ionizes the gas. This creates a conducting path of plasma.

The ionization process is an avalanche effect that rapidly changes the GDT from a high-impedance or open-circuit state to a low-impedance or near-short-circuit state.

Once the voltage in the tube drops below a certain point, the gas deionizes and the tube returns to its insulating state. The process is repeatable, making GDTs even more durable for applications such as surge protection.

Impact of Gas Type, Pressure, and Electrode Spacing

Several crucial physical parameters must be met to determine how well the gas discharge tube will perform. Such include gas type, pressure, and electrode space.

Gas Type

The composition of the gas is important to how GDT operates. Rare gases such as helium, argon, and neon are used because they exhibit stable, predictable breakdown characteristics and color emissions when used in lighting applications. Small amounts of impurities can dramatically change how the tube operates.

Different gases have different ionization potentials. This definitely affects the required breakdown voltage.

Pressure

The gas pressure determines the density of atoms and the mean free path of the electrons between collisions. This is a very important factor in getting the desired breakdown voltage.

Electrode Spacing

The distance between electrodes can also impact the potential difference needed for breakdown. The geometry and materials of the electrodes are also factors of performance and discharge capacity.

Internal Structure and Construction of Gas Discharge Tubes

The internal structure of a gas discharge tube involves a ceramic or glass envelope with two or more electrodes separated by a precisely controlled inert gas. The material generally determines the performance, response time, and durability.

Ceramic vs. Glass Tube Bodies

The envelope material is vital for containing the gas and providing the right insulation between the electrodes.

Ceramic Bodies

These are generally preferred for transient-voltage-suppression applications. This is because of their superior durability, ability to withstand extreme surges, and high thermal resistance, which helps prevent damage. They also offer high mechanical strength and are less prone to shattering than glass.

The ceramic GDTs are also often smaller and more robust for use on circuit boards.

Glass Tubes

These are typically used in lighting and displaying applications such as neon signs or nixie tubes. This is where a transparent tube is necessary to observe the change in light emissions.

Glass tubes can still be durable, but not as much as ceramic. They are also less suited for high-energy industrial surge protection. A careful design is needed for this one.

Electrode Materials and Coatings

Electrodes are vital for providing the interface for the electrical discharge.

Common electrode materials include nickel, copper, and alloys of copper or iron-nickel. High-energy, long-lasting applications use refractory metals such as molybdenum and tungsten. This is because they offer high melting points and the ability to handle high current densities.

Coating electrodes improves their performance. The coatings can lower the wok function, improve stability and response time, and act as getters.

So, why is it important to lower the work function? This is done to facilitate easier electron emission. This helps provide reliable, faster arc initiation.

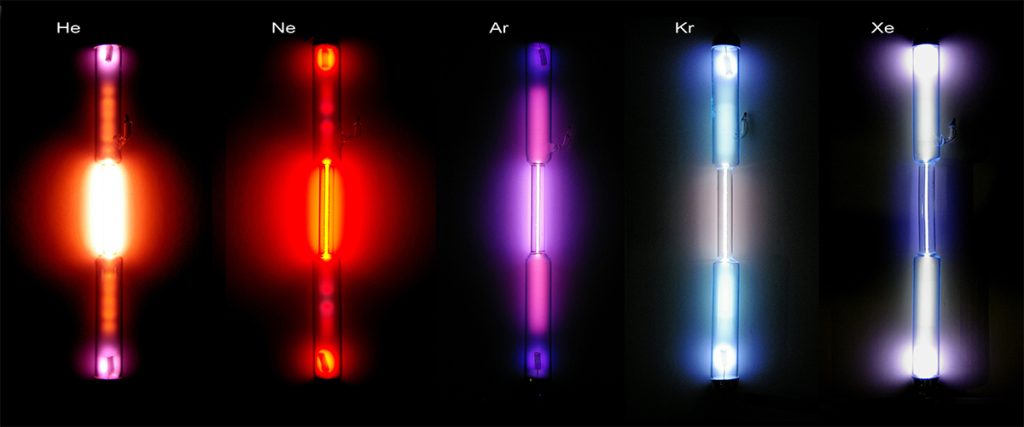

The common gases used can determine the electrical characteristics and the color in lighting applications. The common gases used are:

• Argon
• Neon
• Helium
• Krypton
• Xenon

You can still come across gas mixtures, for example, a Penning mixture of Neon and Argon. These specific mixtures fine-tune the breakdown and maintain voltages, optimizing performance for a specific use case.

Electrical Characteristics of GDTs

The electrical characteristics of the GDTs define how they perform as surge protectors or lighting components. Here are the electrical characteristics of GDTs you should know.

Breakdown Voltage

This is the critical voltage threshold at which the gas discharge tube fires or initiates an arc.

The DC breakdown voltage is the voltage at which the GDT fires when a slow-rising DC or AC voltage is applied.

Impulse breakdown voltage is the voltage at which the GDT fires whenever a fast-rising transient voltage surge is applied. For example, lighting impulses.

Surge Current Rating (kA)

This rating specifies the maximum current the GDT can safely divert without being damaged.

GDTs are built to be robust and can handle very high surge currents. They are often rated in kiloamperes. A higher kA rating indicates a more durable component that can withstand severe electrical environments.

Arc Voltage

Once the GDT fires, it is then in the conducting or arc state. The voltage drop across its terminals falls to a very low level, somewhere between 10 and 80V. This is the arc voltage or operating voltage.

Capacitance and impact on High-Frequency Circuits

GDTs offer an impressive performance for protecting high-frequency communication lines due to their physical construction.

In their non-conducting state, GDTs come with very low capacitance. This is typically less than two picofarads.

Having low capacitance also means GDT can appear almost invisible to high-frequency signals. This minimizes signal attenuation, distortion, and insertion loss.

Responsive Time and Delay Factors

GDTs can have a slight delay between the arrival of a surge and their activation. The response lag is the physical process of gas ionization, which takes a finite amount of time.

During this brief delay, the voltage on the protected may overshoot the DC breakdown voltage. Sensitive circuits include fast-acting protection devices, such as TVS diodes, to manage initial voltage spikes.

The response time is also influenced by design factors such as gas pressure, electrode spacing, and the presence of radioisotopes or coating vital for providing initial free electrons to kickstart the avalanche process.

Leakage Current and Insulation Resistance

GDT acts as a perfect insulator in the non-conducting state. The resistance is extremely high. It is mostly over 10 GΩ.

GDT draws no leakage current from the circuit whenever operating normally. This is unlike some other technologies, which can have measurable leakage.

GDTs are highly durable with a long service life if they are used within their ratings. Expect them to withstand thousands of surges within their kA rating.

Types of Gas Discharge Tubes

Gas Discharge Tubes are categorized spending on their physical structure and their applications. Here is what to expect.

By Electrode Configuration

GDTs are primarily differentiated depending on the number of electrodes in a single sealed housing. This determines how they can protect multiple lines.

The two-electrode GDTs are the most basic, featuring two electrodes. Such a GDT is used to protect a single line to ground or across two lines. Whenever a surge occurs, the single gas gap breaks down and diverts the current.

There are also the three-electrode GDTs. These come with two line terminals and a common ground terminal. Expect to encounter it in telecommunication lines to provide protection. The advantage is that whenever there is a surge, the breakdown of one gas gap instantly ionizes the second gap via the shared plasma. This ensures that both lines can fire simultaneously, preventing damaging voltage differences between them.

By Packaging Type

The physical packaging can dictate how the GDT is added to a circuit board. Examples of packaging types include through-hole GDTs and surface-mount (SMD) GDTs.

The through-hole GDTs come with wire leads that you can insert into holes on the PCD and solder to the board. They are used in applications that require robust connections and high energy handling.

The SMD GDTs are compact and are soldered into the PCB surface. They are essential for modern, high-density electronic assemblies where space might be limited.

By Application and Performance

Specific internal construction techniques are used to optimize GDTs for different performance needs.

RF-rated GDTs and high-frequency GDTs are engineered to be used in radio frequency and high-frequency communication circuits. Their internal structure minimizes parasitic capacitance to very low levels. This ensures they do not interfere with RF signals or high-speed data whenever in standby mode.

High-energy surge GDTs are designed with robust electrode materials, such as tungsten, and operate at specific gas pressures to handle massive surge currents. They are commonly used in primary protection stages such as main power distribution panels.

Fast-response GDTs use technologies such as optimized electrode spacing, internal radioactive coatings, and specific gas mixtures to provide an initial supply of free electrons. This reduces the time lag and improves response time to faster voltage transients.

Applications of Gas Discharge Tubes

GDTs can work quite well in many fields. Such fields include:

1. Telecom and Communication Lines

GDTs are generally vital for protecting the communication infrastructure. This infrastructure is often exposed to external transient overvoltages via long cable runs. Having low capacitance ensures they do not interfere with the high-frequency signals.

2. Power and Industrial Systems

GDTs are primary components in a multi-stage surge protection device for a power system. This is thanks to their ability to handle significant power surges.

3. Lightning and High-Energy Protection

GDTs also excel in applications that require protection against direct and indirect lightning strikes. They are vital for handling high energies.

4. Electronics and Consumer Devices

GDTs come integrated into many everyday devices. This makes them more reliable and have long-life protection mechanisms.

How to Select the Right Gas Discharge Tube

Selecting the right gas-discharge tube involves many factors. Here is how you should pick yours.

Choosing the Breakdown Voltage

The correct breakdown voltage is significant. The GDT needs to remain non-conductive during regular operation but would activate quickly during an overvoltage event.

2-Electrode vs 3- Electrocode Selection

The choice between the two depends on the configuration of the lines that require protection. The 2-electrode GDTs are suitable for protecting a single wire to ground or across two power lines where simultaneous firing of both gaps is necessary.

The 3-electrode GDTs are recommended for balanced communication pairs. They are used to ensure that both lines are clamped simultaneously to the same low-voltage potential, preventing voltage differentials that may damage sensitive inputs.

Environmental Factors

The GDT performance can be influenced by ambient conditions such as temperature, humidity, and altitude.

GDT specifications include the operating temperature range. Always pick a GDT that can operate within the expected temperature extremes of the equipment enclosure.

Humidity is also important to consider. The GDT seal must be robust to prevent moisture ingress. This can alter the gas characteristics over time. Ceramic and high-quality glass seals are necessary for such reasons.

Energy and Surge Rating

The amount of energy the GDT must divert is a key selection factor.

The kA rating determines how much surge current it can handle and safely protect the device connected to it.

For sensitive electronics, GDTs are used as the primary high-energy diversion stage. Fast-acting TVS diodes follow this to manage voltage overshoot during the GDT’s response delay.

Conclusion

A Gas Discharge Tube is a reliable and highly durable electrical component that leverages the physics of gas ionization to act as an effective voltage-dependent switch. It can transition from an insulating state to a conductive plasma arc when its precise breakdown voltage is achieved. For this reason, it is best for diverting massive electrical surges, making it essential for protecting sensitive equipment from transient overvoltages and lightning strikes.
