What is DIMM? A Simple Guide to Computer Memory



Introduction

DIMM or Dual In-line Memory Module, is a type of computer memory module. We commonly refer to it as RAM stick, but as we know, there are many types of RAM, and each works differently.

Still on the question of what is DIMM memory, we see how important it is for your computer as it provides short-term storage that the CPU needs to run the applications and programs of a computer system.



Key Features and Parameters of DIMM

Now that you know what is DIMM, we should talk about its features and parameters.

Form Factor

DIMMs come in two main forms: the PC DIMM and the SO-DIMM. The PC DIMM is the standard-size memory module used commonly for desktop and server computers. It is mostly 133.35mm in length.

The SO-DIMM is smaller and used in laptops and other similar portable devices. It is usually half the length of the PC-DIMMs.

Speed

The speed of the DIMM is measured in terms of bit rate. This is important to keep in mind as it can determine if it is suitable for your computer. The speed is indicated as DDR or Double Data Rate, followed by the generation and speed rating, for example, DDR4-2400.

Capacity

Other than the DIMM’s speed, we also have an equally important feature: capacity. The market offers various capacities, mostly expressed as gigabytes (GB).

Memory Rank

The DIMMs can also be designed to support several memory ranks. Such a feature is essential because it allows for independent memory chip management of each module.

Pins

The DIMMs come with a specific number of pins for connecting to the motherboard, which largely varies with the DDR generation. For example, you can get 184 pins for DDR1 and 288 pins for DDR4.

Voltage

Yes, even DIMMs operate at specific voltage levels. They primarily operate between 1.5V and 1.35V depending on the DDR generation and any additional module specifications.



The Purpose of DIMM in a Computer

When you get to understand more about what is a DIMM slot and why getting a better DIMM is important, the more you will invest in the best quality modules available.

DIMMs store the computer’s RAM, which is an important temporary workspace for the CPU. When you increase the available RAM with the use of more DIMMs, it means the CPU will work faster. That is how you end up with apps that load more rapidly and the processing speed is also improved.

DIMMs are also energy efficient compared to SIMMs. This makes it more reason to find more people considering using DIMMs as they consume less energy while providing you with faster performance.

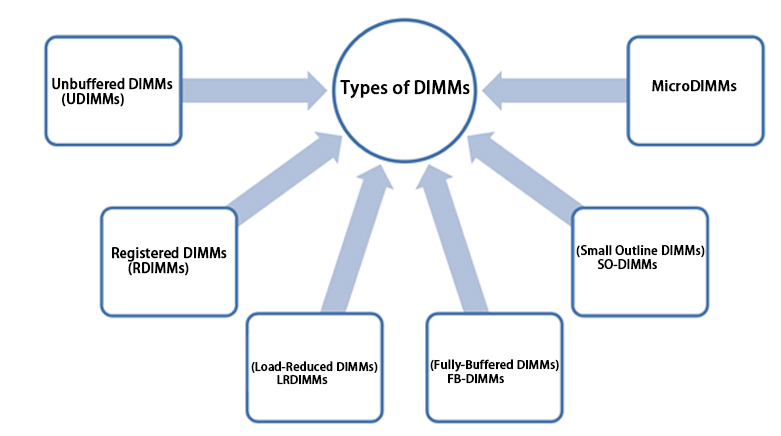

Types of DIMMs

There are different types of DIMMs in the market. What is important is that you understand how each works so that you can choose the right one for an application. The main options include:

UDIMMs (unbuffered DIMMs)

These are the most common and cost-effective DIMMs in the market. They are commonly used in desktop and laptop computers. They can communicate with the CPU’s memory controller without the need for buffering.

RDIMMs (Registered DIMMs)

They come with an additional register between the memory module and the CPU. This creates a buffer, which provides stability in various applications. Expect it to be common in server environments.

LRDIMMs (Load-Reduced DIMMs)

These work the same as the RDIMMs, but they have a buffer key to reduce the load on the memory controller. This is vital to providing better performance and capacity, especially when working with high-end server environments.

FB-DIMMs (Fully-Buffered DIMMs)

These offer a more complex memory buffer than the abovementioned ones. This buffer can handle writing and reading at the same time, which improves performance exponentially. They are handy when working with servers and workstations that need large memory modules.

SO-DIMMs (Small Outline DIMMs)

These are smaller versions of the standard DIMMs, mainly designed for portable devices. They will be common in laptops or similar devices.

MicroDIMMs

This is another small DIMM factor that works best for smaller devices than laptops. Expect them in embedded systems as well.

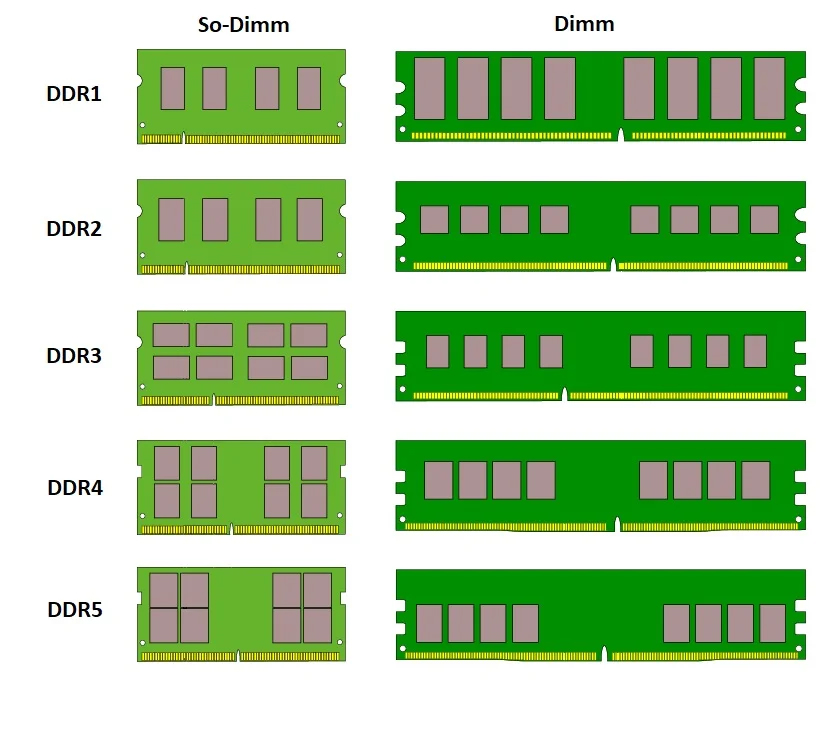

DIMM Generations

The DIMM is categorized based on the Double Data Rate (DDR) combined with the generation. Each generation comes with an improvement in terms of performance, speed, capacity, and power efficiency.

The generations include:

DDR1 – This is the first generation of the DIMM characterized for having 184 pins for Desktop and 200 pins for laptop SO-DIMMs.

DDR2 – This is the second generation with 240 pins for desktop DIMMs and 204 pins for the SO-DIMMs for laptops.

DDR4 – In the fourth generation, the pins increased to 288 for desktop DIMMs and 256 pins for SO-DIMMs for laptops.

DDR5 – This is the latest generation of DIMMs, offering more significant performance enhancements and power efficiency than previous generations.



How to Identify the Right DIMM for an Application

You cannot just choose any DIMM and expect it to fit into the DIMM slot. Below are some of the things you have to keep in mind before you can buy the right DIMM.

Understand the Motherboard Specifications

These specifications are important in determining which type of DIMM to get. The generation is also important. You have to ensure the DIMM generation is compatible with the motherboard.

The supported speed is also key. Even if you get a high-speed DIMM, but the motherboard does not support it, it will not offer the expected performance.

The motherboard’s manual also details the maximum RAM capacity it can handle. You may want to add more DIMMs in the slots, but keep in mind the motherboard’s capacity as well.

The DIMM Types

Of course, each type is designed for a specific function. The main types include UDIMM, RDIMM, LRDIMM, and SODIMM.

The UDIMM is meant for desktop PCs and laptops. If you need memory modules for servers, you can use either the RDIMM or LRDIMM.

SODIMM is meant for laptops and other small-factor computer systems because of its small-factor form.

Assess Your Needs

It is definitely important to assess your needs first before choosing the right DIMM. for example, the needs of a gamer are different for a person who uses the laptop or desktop for word processing. Your needs can determine the capacity and speed of RAM you need to make it a success.

Price, Brand, and Other Considerations

We always recommend going for modules from top brands. This ensures you get the best quality products. The top brands include Corsair, Adata, HyperX, Samsung, Crucial, Kingston Technology, G.Skill, Sk Hynix, and Micron.

The price can also be important to consider, as some brands are more expensive than others. Even if they are pricey, what will be their performance? These are some of the things to consider to ensure you get value for money.

Does the DIMM have more features? Yes, some come with heat sinks to help dissipate more heat to ensure stable performance, especially for demanding applications.



How to Install a DIMM

The installation process is not hard. It can involve a few simple-to-follow steps. Consider the steps below.

• Power off the computer before opening the back panel to locate the DIMM slot.
• It is easy to locate the slot as it has a removable RAM stick.
• Eject the current DIMM using the ejector levers which are on either side of the RAM stick.
• Align the new DIMM so that it is easy to insert it. Carefully push the DIMM into the slot until it locks in place.
• You can lock the ejector levers if they are the ones that can be locked.
• Once installed, power the computer to verify if the new DIMM has been detected and working properly.



When To Upgrade the DIMM in a Computer

Sometimes, it gets to a point where you just have to get yourself a new DIMM to upgrade your computer. The first thing that would prompt you to do so will be the performance bottlenecks. If you notice that the computer tends to freeze or crash all the time when you load more apps, it could be time to add in a new DIMM to improve performance.

You may also be facing multitasking issues where the system fails to run multiple programs simultaneously. So, upgrading the DIMM will help alleviate the strain on your computer.

We also recommend loading the Task Manager window to see how much memory you are using. If you notice that you are using close to 100%, then it is an indicator to consider adding more RAM.

There are task specific needs that also need a new DIMM. For example, you can be gaming and notice the system is slower. That is one reason to get better and more advanced DIMMs for the system. The same applies to video editing and rendering. These are activities that demand a lot of resources and will make you find the need for newer and better-compatible DIMMs.



Conclusion

Looking at the different types of DIMMs, we can see how they are important in terms of computer system performance. It is better to take more time to compare the different modules available to pick the right one. This is because it affects a computer’s overall performance. If you are unsure which one to choose, consult your computer manual to find the recommended options.
