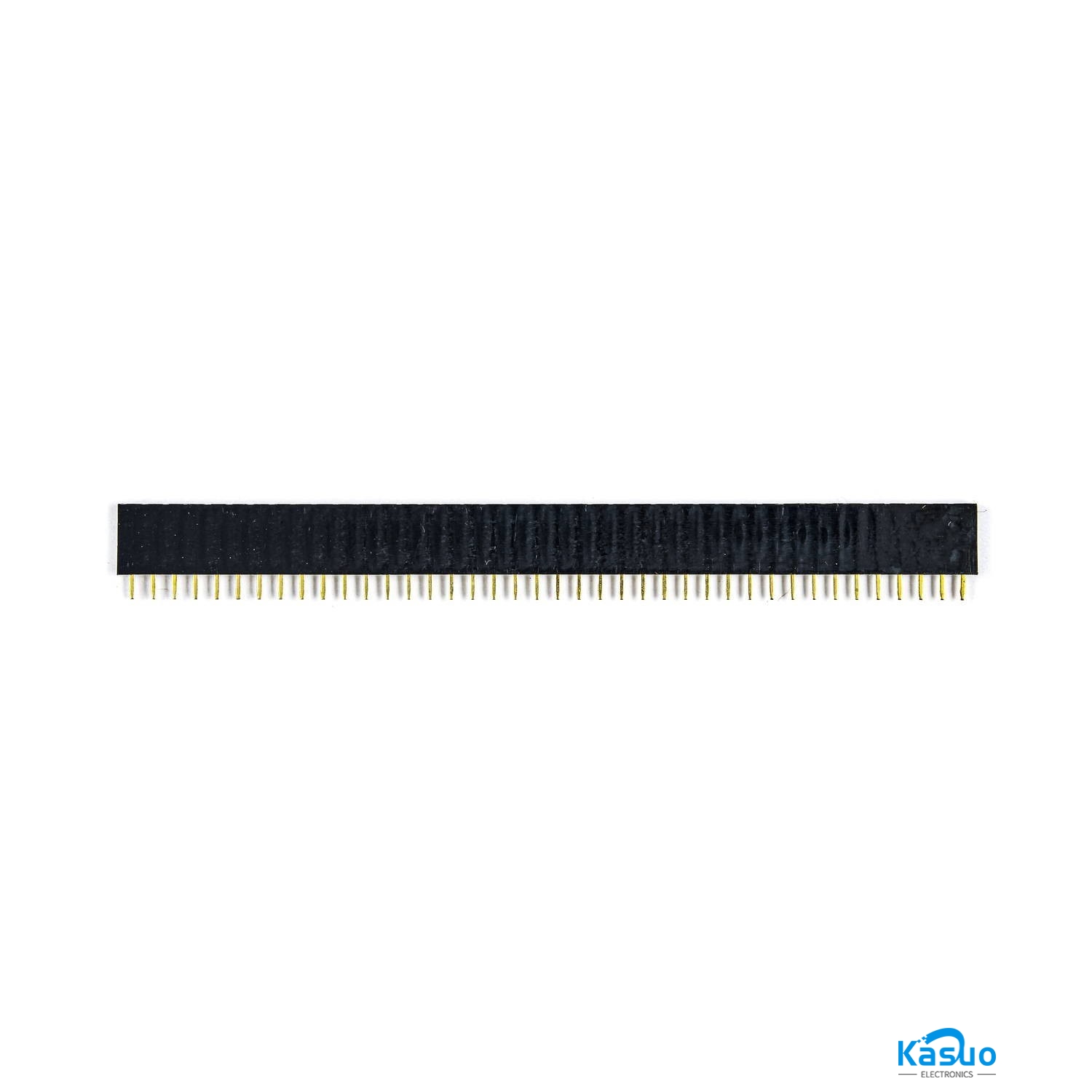

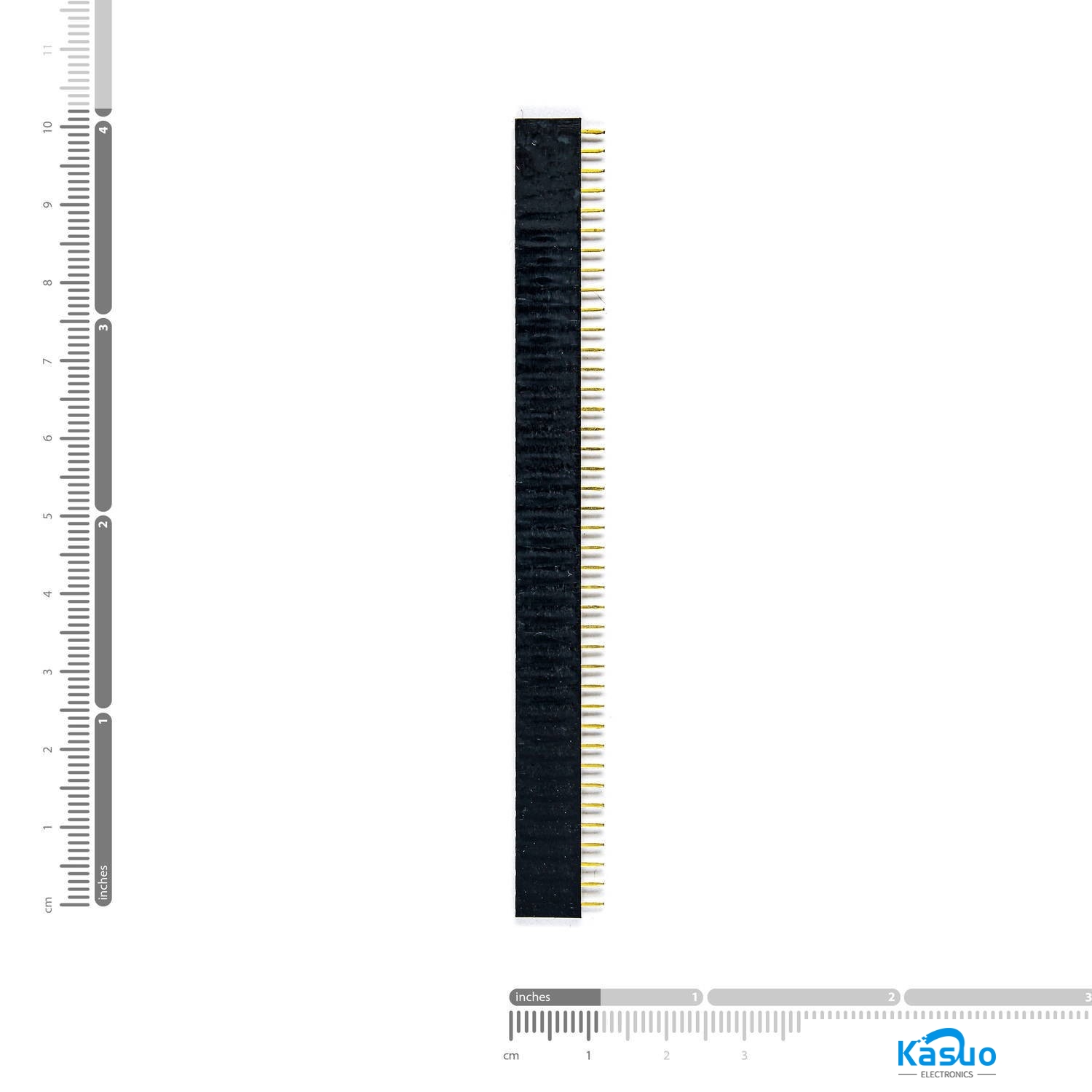

1x40 Pin Female Header - 2.54mm Pitch

The 1×40 Pin Female Header with a 2.54mm pitch is a connector component commonly used in electronics projects and printed circuit board (PCB) designs. This header provides a means of connecting and interfacing various components, modules, and boards with standard pin spacing. It’s especially popular for connecting microcontrollers, display modules, and other electronic components to PCBs or breadboards.

Specificatoins of 1×40 Pin Female Header – 2.54mm Pitch0:

• Connector Type: Female header with 1 row of 40 pins
• Pin Pitch: 2.54mm (0.1 inches)
• Pin Configuration: 1×40 configuration, meaning a single row of 40 pins
• Mounting angle: Straight needle
• Color:Black

Features of 1×40 Pin Female Header – 2.54mm Pitch0:

• Versatile Connectivity: The 1×40 pin female header allows for flexible connections between components with matching male headers or pins.
• Standard Pitch: The 2.54mm pitch (0.1 inches) is a widely used standard, ensuring compatibility with many breadboards, modules, and PCBs.
• Secure Soldering: The header can be securely soldered onto PCBs to establish reliable electrical connections.
• Usage Tip:
• Use the 1×40 pin female header to connect microcontrollers, displays, sensors, and other components to your PCB or breadboard. Ensure proper orientation and alignment when soldering.
• Precaución:
• Take care when soldering the header to prevent solder bridges between adjacent pins. Avoid excessive heat that might damage components. Double-check pin numbering and orientation to ensure proper connectivity.

How to Use 1×40 Pin Female Header – 2.54mm Pitch0:

Pin header produced by 2.54 millimetres (0.1 in) , 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in) apart distance between the pins, which 2.54 mm apart is most common.
