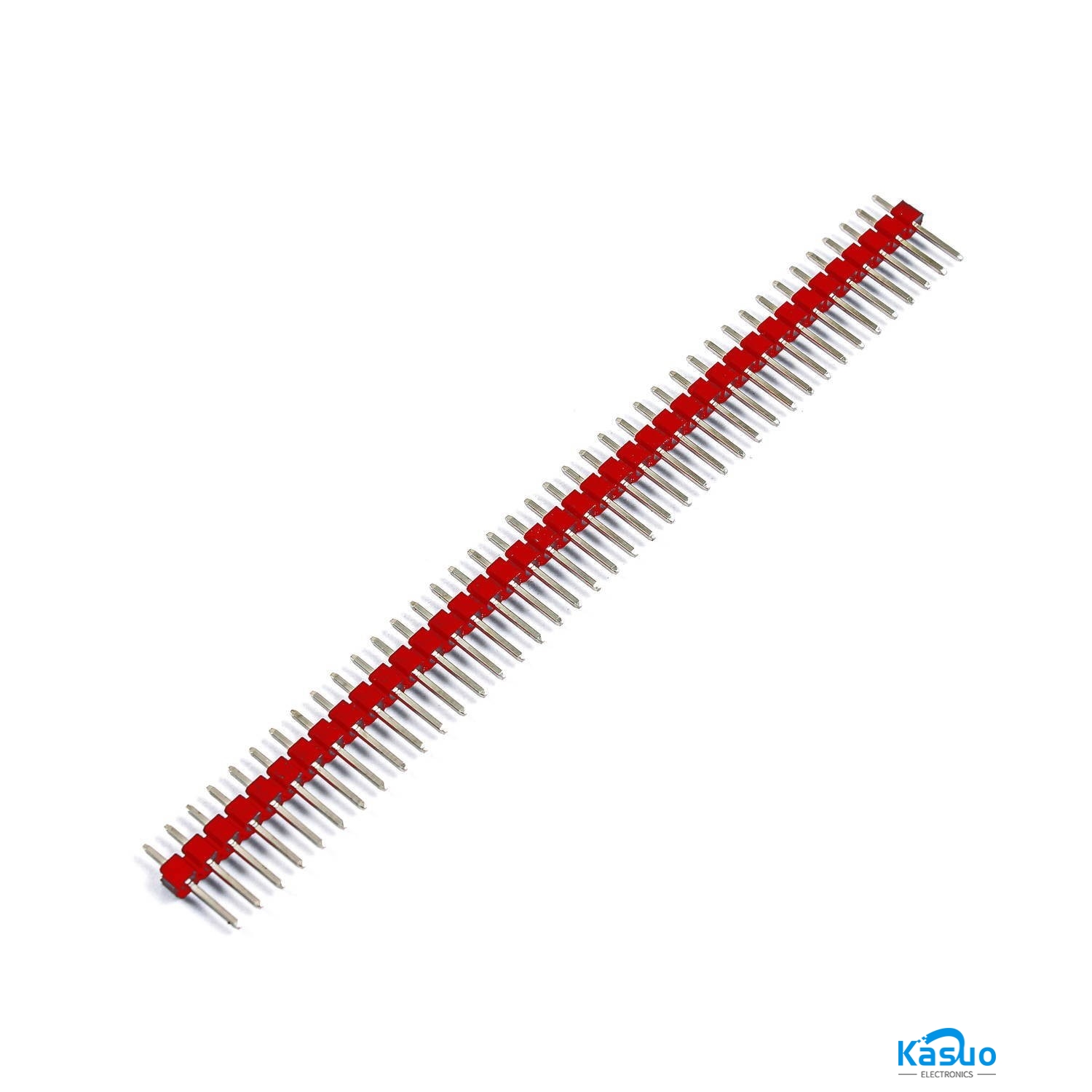

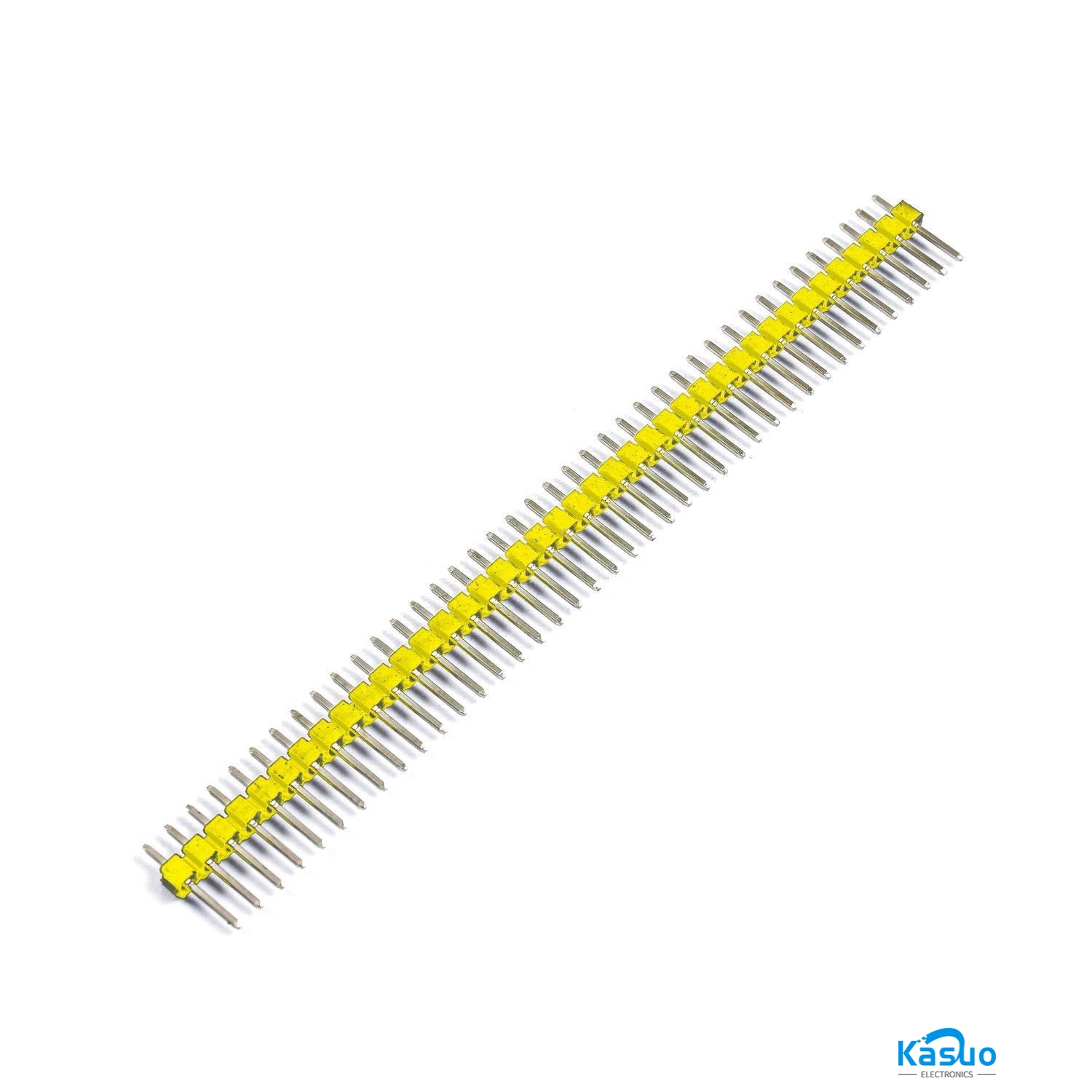

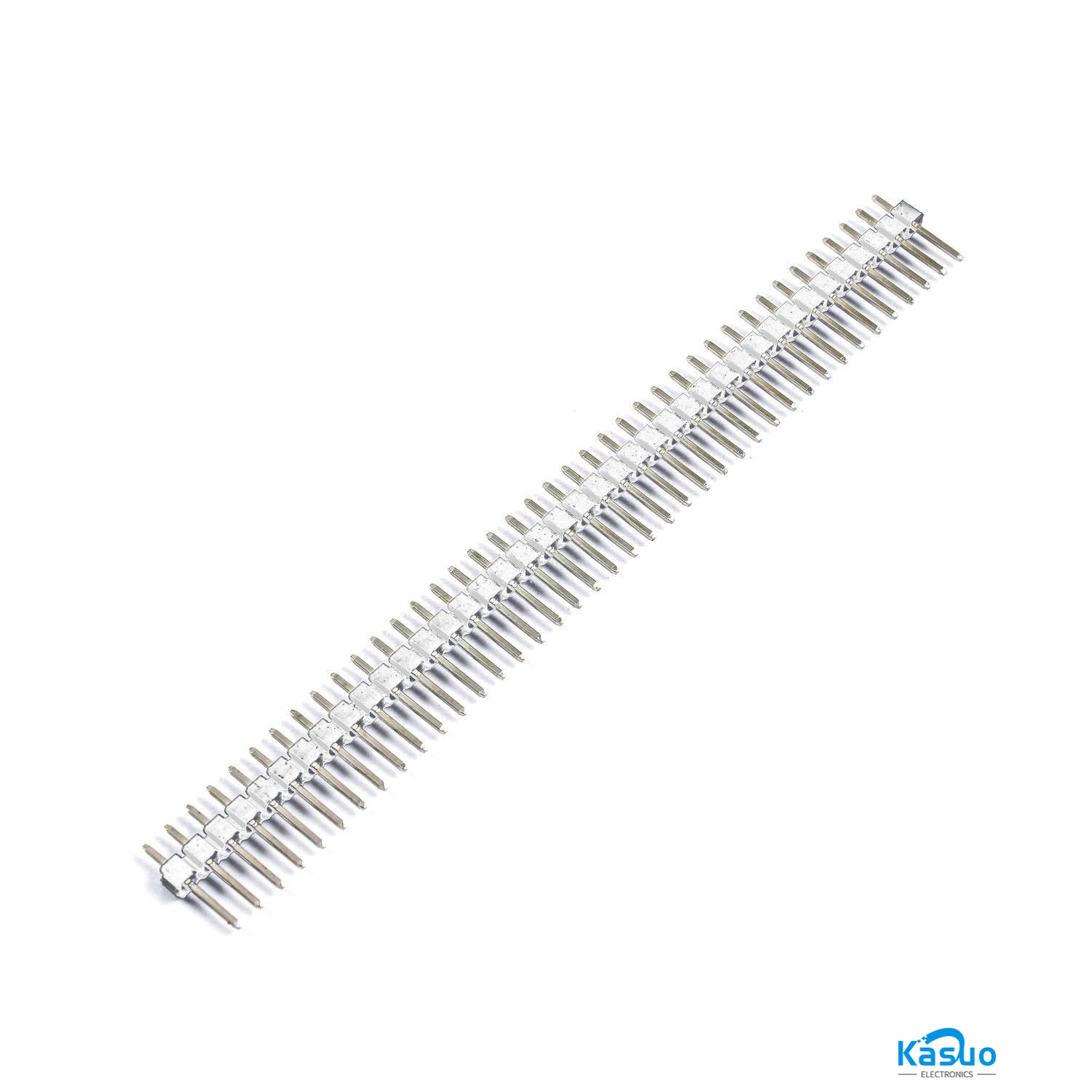

1x40 Pin Male Header - 2.54mm Pitch

The 1×40 Pin Male Header with a 2.54mm pitch is a fundamental electronic component commonly used for creating connections and interfaces in electronics projects, PCB designs, and prototyping. This male header features a single row of 40 pins spaced at a standard 2.54mm interval, making it compatible with various boards, modules, and components.

Specificatoins of 1×40 Pin Male Header – 2.54mm Pitch :

• Connector Type: Male header with 1 row of 40 pins
• Pin Pitch: 2.54mm (0.1 inches)
• Pin Configuration: 1×40 configuration, meaning a single row of 40 pins
• Mounting angle: Straight needle
• Features of 1×40 Pin Male Header – 2.54mm Pitch :

• Compact Design: The 2mm pitch makes this header suitable for space-constrained designs while still offering multiple pins for connections.
• Flexible Connectivity: The 1×40 pin male header allows for various configurations, including connections to female headers, sockets, or receptacles.
• Solderable and Insertable: It can be soldered onto PCBs or inserted into compatible female connectors, making it versatile for different applications.
• Usage Tip:
• Solder the 1×40 pin male header onto a PCB to provide connection points for interfacing with other components, modules, or devices. Ensure proper alignment and spacing during soldering.
• Precaución:
• Take care when soldering to prevent solder bridges or cold joints that can affect connectivity. Verify proper alignment and orientation of the header pins before soldering to ensure correct connections.

How to Use 1×40 Pin Male Header – 2.54mm Pitch :

Pin header produced by 2.54 millimetres (0.1 in) , 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in) apart distance between the pins, which 2.54 mm apart is most common.
