2x40 Pin Male Header - 2mm Pitch

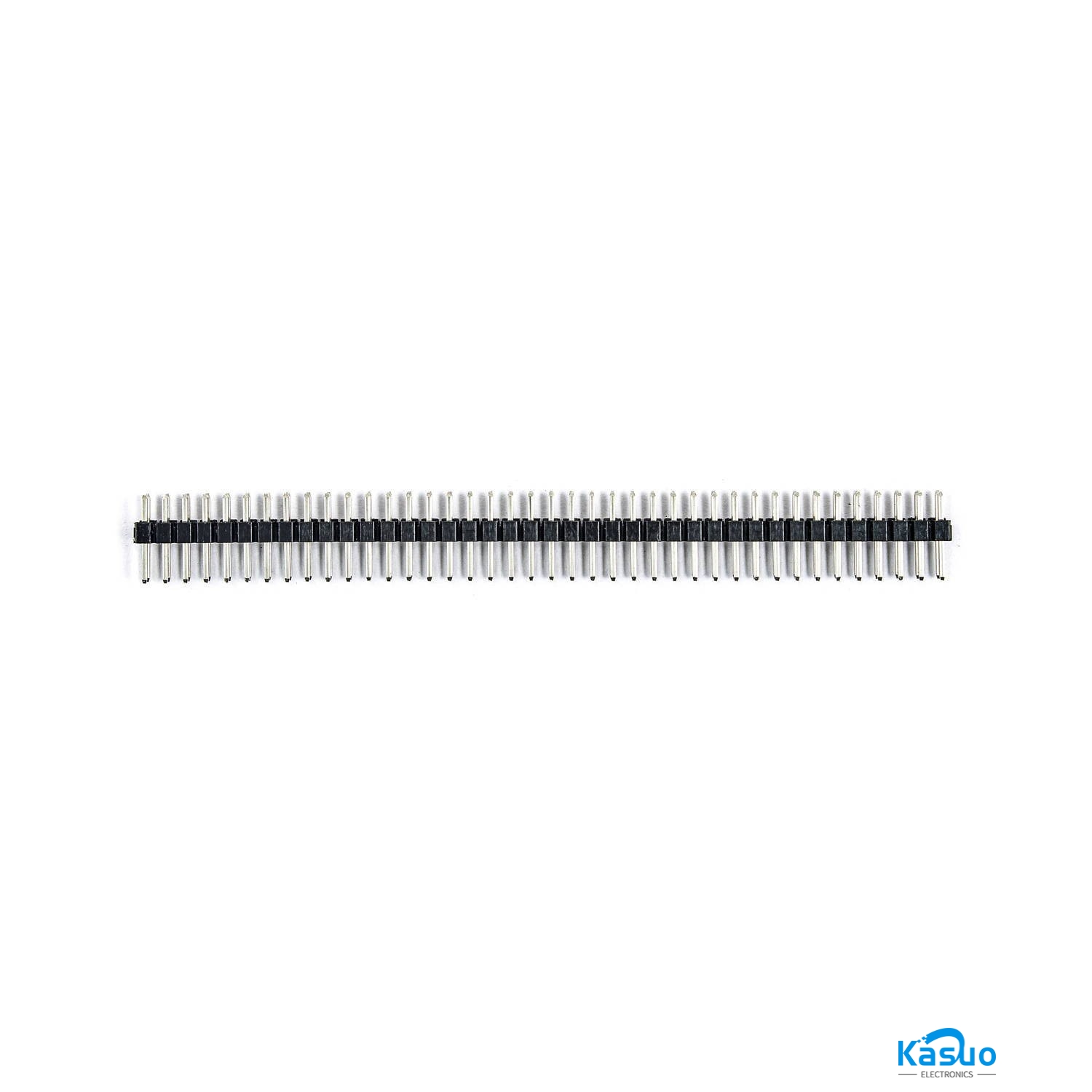

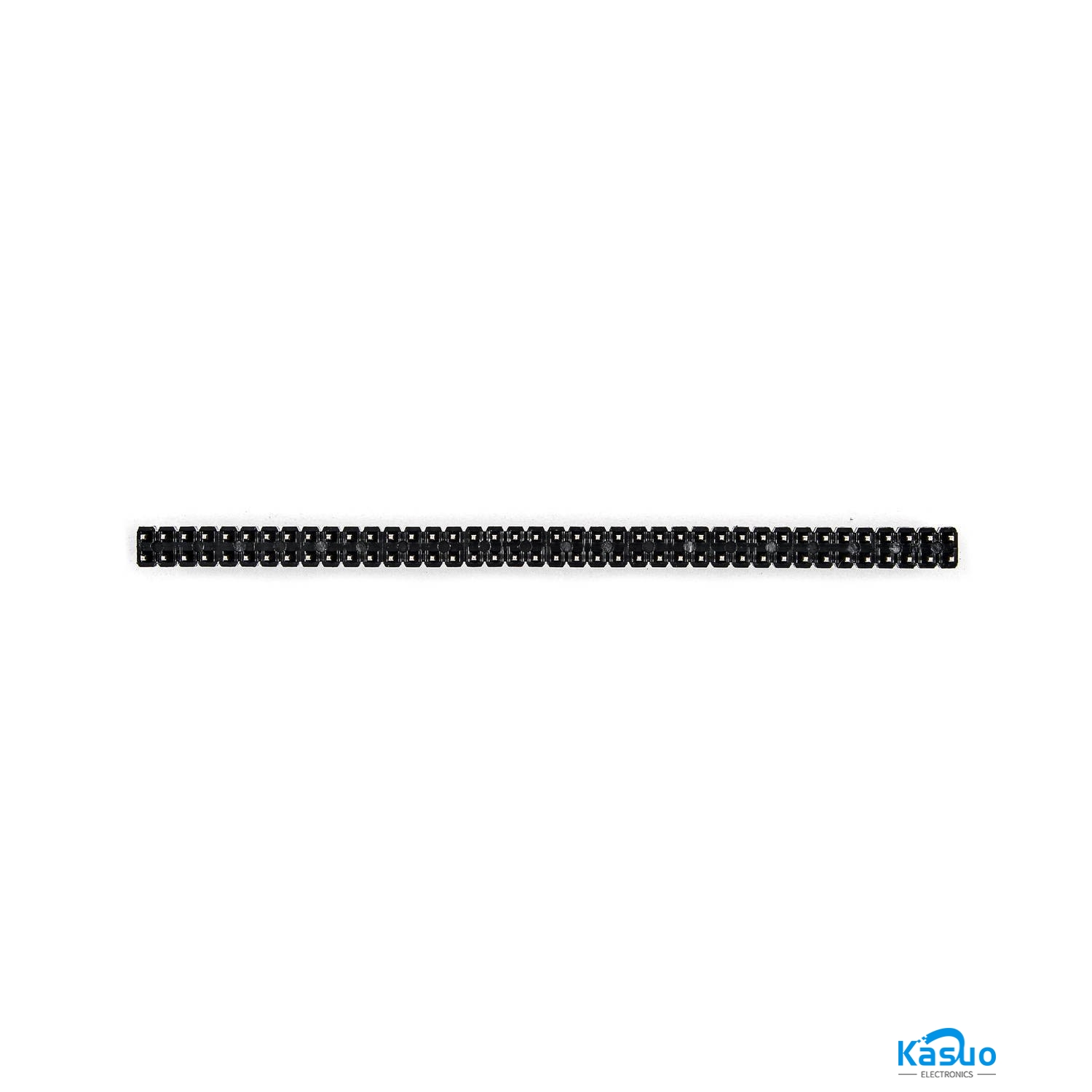

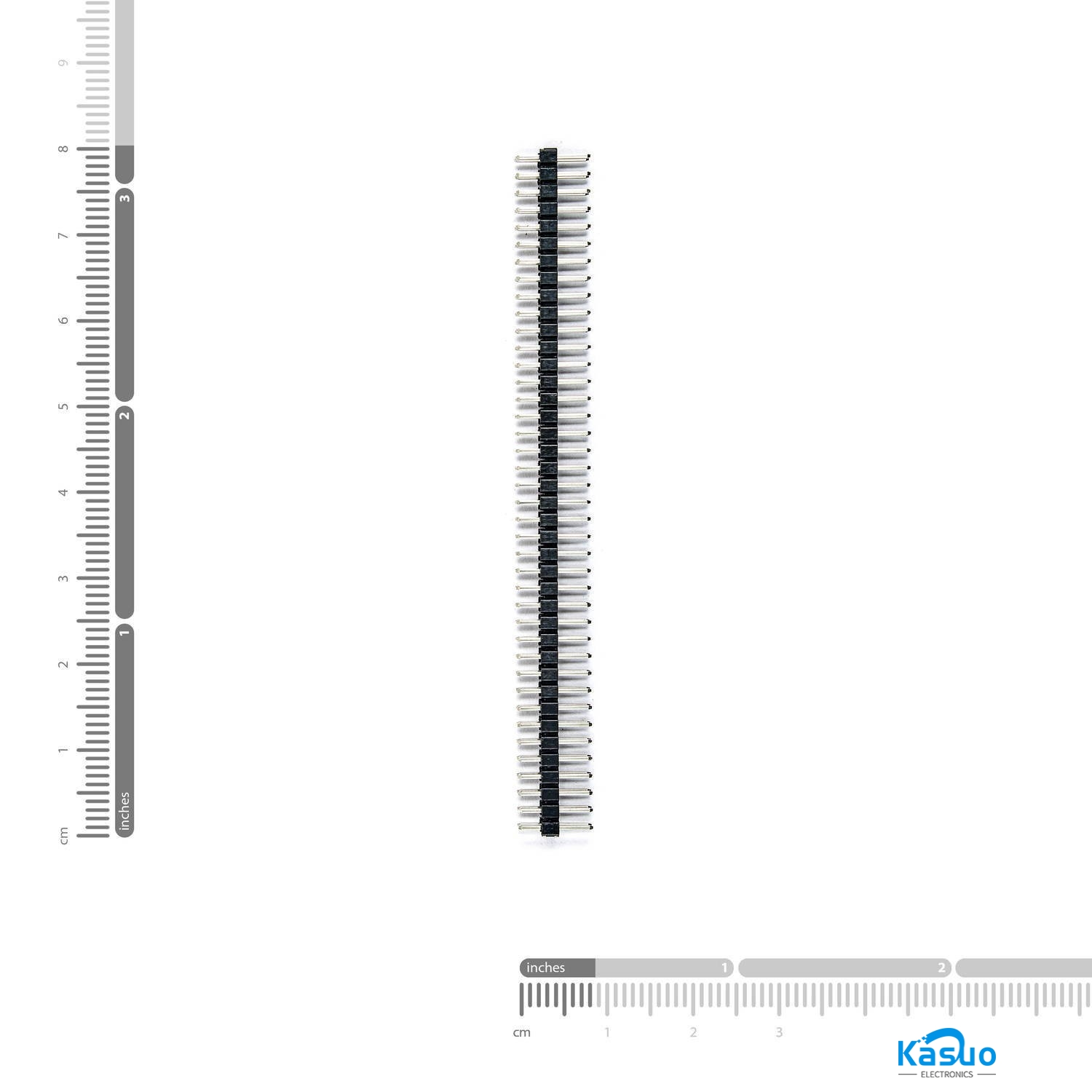

The 2×40 Pin Male Header with a 2mm pitch is a fundamental electronic component commonly used for creating connections and interfaces in electronics projects, PCB designs, and prototyping. This male header features a double row of 80 pins spaced at a standard 2mm interval, making it compatible with various boards, modules, and components.

Specificatoins of 2×40 Pin Male Header – 2mm Pitch:

• Connector Type: Male header with 2 row of 40 pins each (total of 80 pins)
• Pin Pitch: 2mm
• Pin Configuration: 2×40 configuration, meaning a two row of 40 pins
• Mounting angle: Straight needle
• Color:Black

Features of 2×40 Pin Male Header – 2mm Pitch:

• High-Density Connectivity: The 2×40 pin male header offers a high number of pins in a compact form factor, suitable for densely packed designs.
• Versatile Interface: Use it to connect a wide range of components, modules, or devices, enabling complex circuitry and interconnections.
• Standard Pitch: The 2mm pitch adheres to a widely used standard, ensuring compatibility with breadboards, modules, and PCBs.
• Usage Tip:
• Solder the 2×40 pin male header onto a PCB to provide a large number of connection points for interfacing with various components, modules, or devices. Ensure proper alignment and spacing during soldering.
• Precaución:
• Take care when soldering to prevent solder bridges or cold joints that can affect connectivity. Verify proper alignment and orientation of the header pins before soldering to ensure correct connections.

How to Use 2×40 Pin Male Header – 2mm Pitch:

Pin header produced by 2.54 millimetres (0.1 in) , 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in) apart distance between the pins, which 2.54 mm apart is most common.
