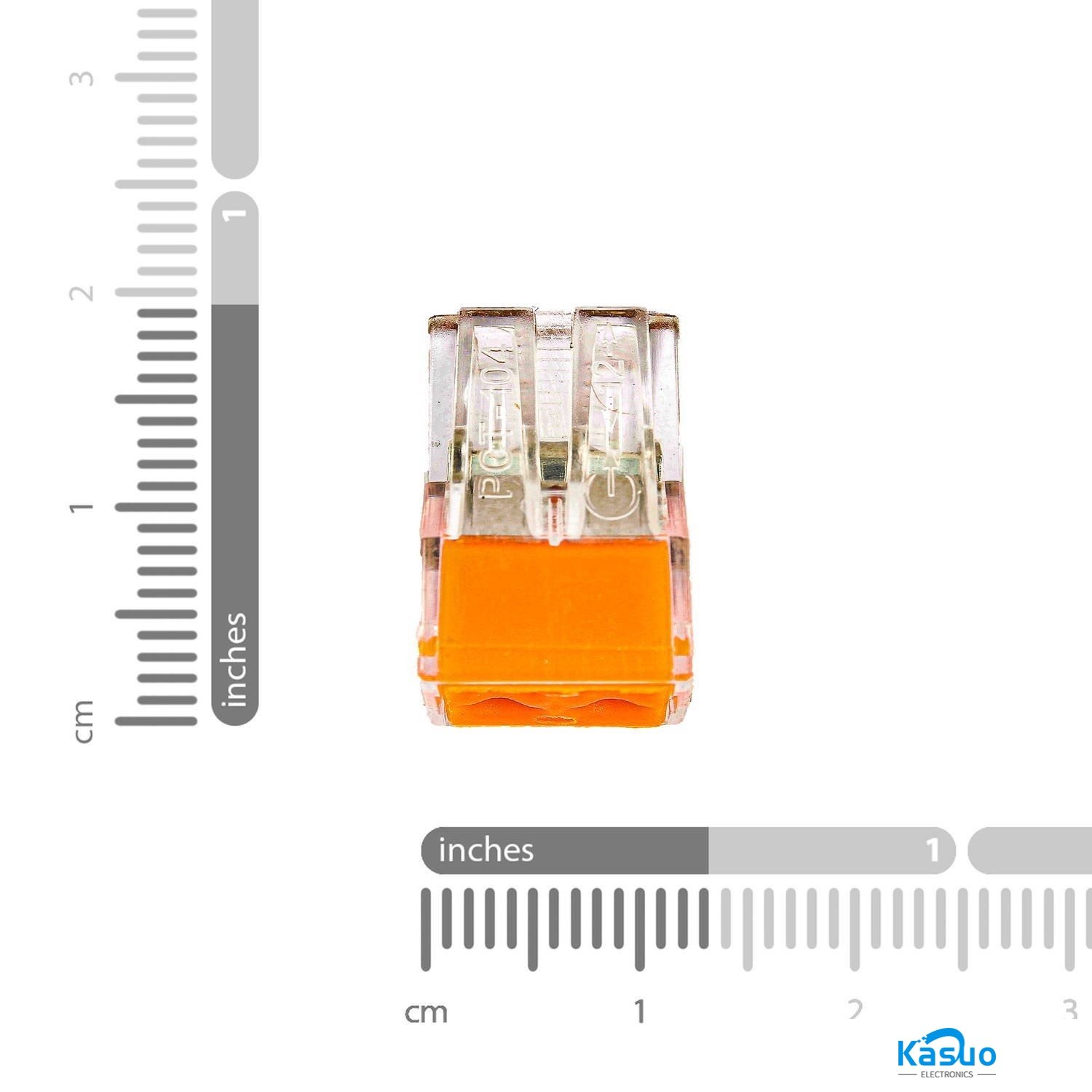

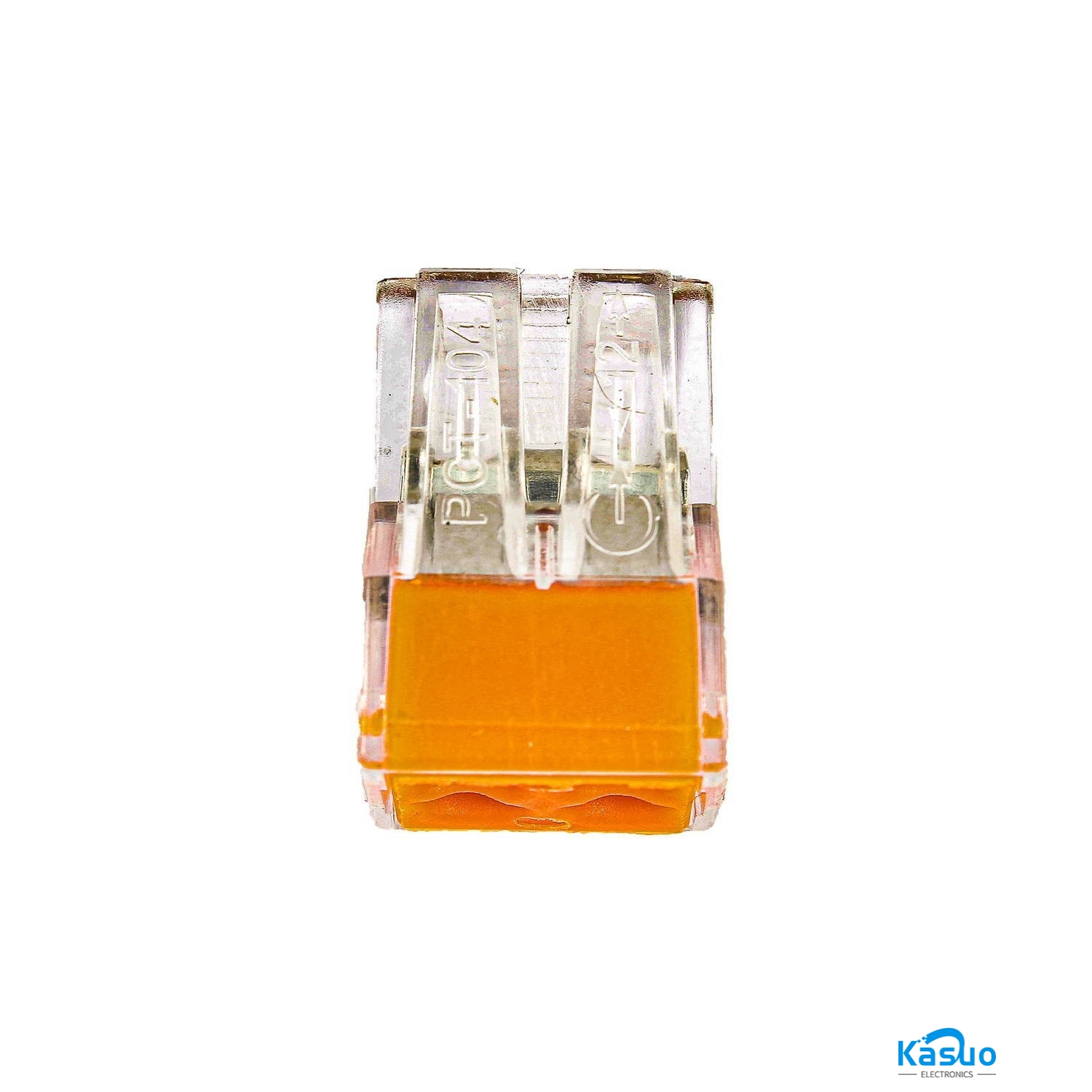

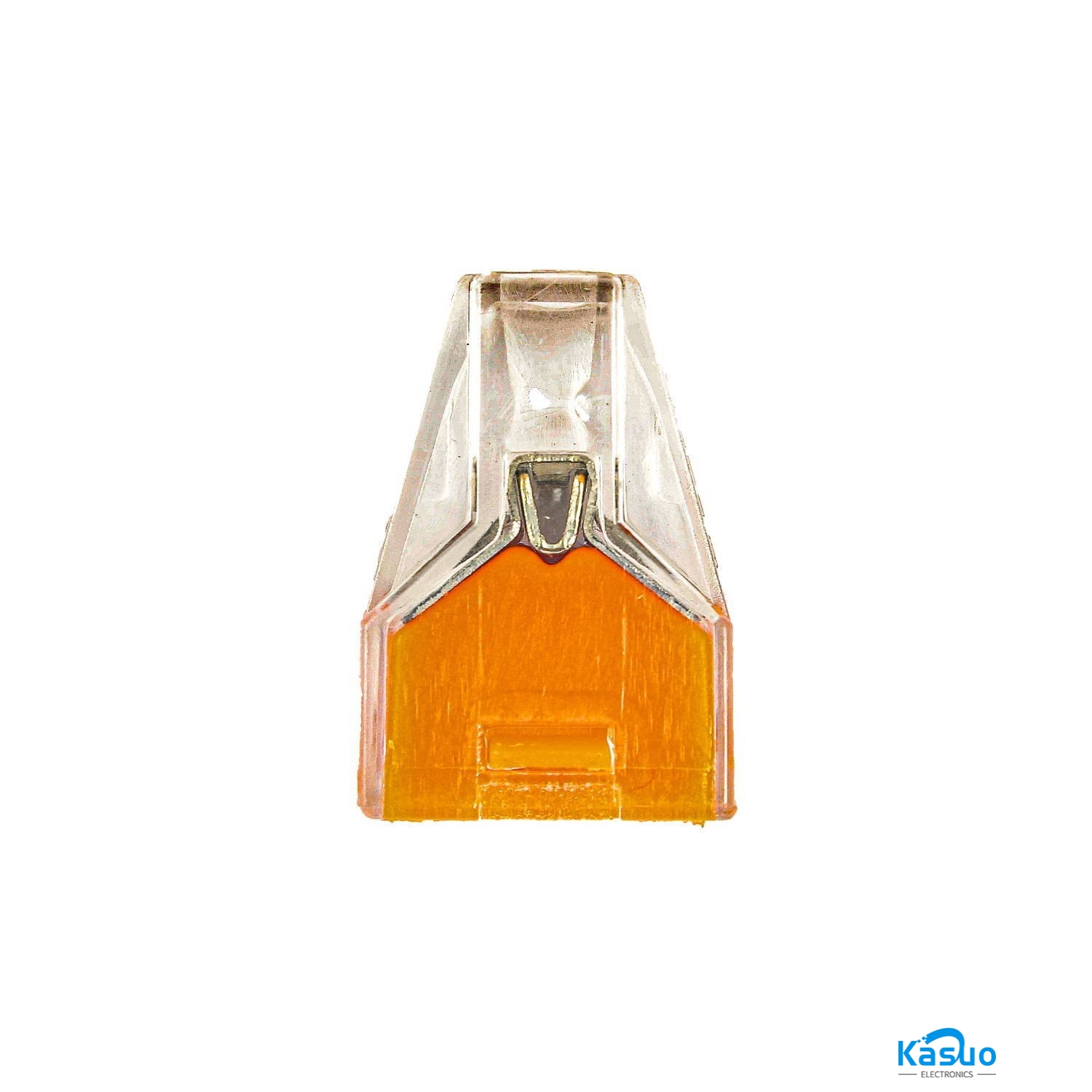

PCT-104 Push Wire Connector - 4-Pin Conductor

Descripción
PCT Push Wire Connector [102, 103D, 104, 104D, 106] package contains of push connector, to make the fastest connection which is designed for home building, light commercial, city lighting, and modular wiring systems, etc. This PCT connector can easily and quickly connect two or more wires, at first stripe the wires, second, simply by a little force push the wire in the connector hole. This push connector has a transparent shell to achieve the capability of visual inspection of the terminal connection. This terminal has an ergonomic design in a compact size. This PCT terminal is presented in 5 optional models, with two holes (at PCT 102), 3 holes in one row (at PCT 103D), 4 holes in one row(at PCT 104D), 4 holes in two rows (at PCT 104), or 6 holes in two rows (at PCT 106).

Características
FOR PCT-102
Number of Channels: 2
Rated voltage: 400V
Rated current: 24A
Rated impulse voltage: 4KV
Size:19.5mm x 9.2mm x 13.1mm

FOR PCT-103D
Number of Channels: 3
Rated voltage: 250V
Rated current: 41A
Rated impulse voltage: 4KV
Size: 25.6mm x 20.2mm x 14mm

FOR PCT-104
Number of Channels: 4
Rated voltage: 400V
Rated current: 24A
Rated impulse voltage: 5KV
Size: 19mm x 13mm x 13mm

FOR PCT-104D
Number of Channels: 4
Rated voltage: 400V
Rated current: 24A
Rated impulse voltage: 5KV
Size: 28mm x 20mm x 12mm

FOR PCT-106
Number of Channels: 6
Rated voltage: 250V
Rated current: 24A
Rated impulse voltage: 4KV
Size: 19.8mm x 12.8mm x 13.3mm
