IRF3205 MOSFET: Pinout, Features, Applications, Datasheet & Equivalents

Explore the IRF3205 Reference Manual for comprehensive details on its amplifier circuit, circuit diagram, gate voltage, pinout, and specifications. Understand its applications in inverters, motor drivers, and voltage regulators. Learn about its alternatives, equivalents, and replacement options.

Marques : Infineon / IR

Télécharger: IRF3205 Datasheet PDF

Prix: enquête

En stock: 20227

Type de transistor : 1 canal N

Délai d'arrêt typique : 50 ns

Délai de mise en marche typique : 14 ns

Emballer: -

send your inquiry

Livraison GRATUITE pour les commandes supérieures à HK$250.00

Réponse rapide, devis rapide

Expédition rapide, pas de soucis après-vente

Chaîne originale, garantie de produits authentiques

IRF3205 MOSFET Complete Details | Working Principle and Best Equivalent MOSFETs

What is the IRF3205 ?

The IRF3205 is a N-Channel Power MOSFET commonly used in power switching circuits. Thanks to its low Rds(on), fast switching speed, and ability to handle high currents, it’s well-suited for DC-DC converters, motor drivers, and automotive systems.

IRF3205 MOSFET Pinout

IRF3205 comes in a TO-220 package with three pins: Gate, Drain, and Source.
IRF3205 MOSFET Pinout

IRF3205 Pin Configuration：

Numéro de code PIN	Nom	Function Description
1	Grille	Control terminal, receives control signal
2	Vidange	Load terminal, connected to one end of the load
3	Source	Connected to ground or power negative terminal

IRF3205 Features & Specifications

Paramètre	Value
Drain-Source Voltage (Vds)	55 V
Continuous Drain Current (Id)	110A @ Vgs = 10V
Gate Threshold Voltage (Vgs(th))	2.0 – 4.0V
Gate-Source Voltage (Vgs, max)	±20V
On-Resistance (Rds(on))	8.0mΩ
Gate Charge (Qg, max @ Vgs=10V)	146nC
Total Power Dissipation (Pd)	200W
Rise Time (tr)	101ns
Type de colis	TO-220
Typical Application	Power switching circuits

IRF3205 Application

Automotive Power Systems – Switching relays, solenoids, and lighting circuits
Motor Control – DC motor speed control using PWM
DC-DC Converters – Efficient voltage step-down or boost solutions
Inverter Circuits – High-current output stage in low-frequency inverters

IRF3205 MOSFET Equivalent & Alternative

Modèle	Notes
IRF1405	Higher current rating (169A)
IRFZ44N	Lower current, logic-level gate drive
IRFB4110	Lower Rds(on), good for high efficiency
IRF3708	Enhanced switching speed
IRFZ46N	Similar specs, widely available
IRF1407	Close thermal and switching characteristics
IRFB3077	Strong alternative for motor applications
IRF3703	Lower gate charge, fast switching

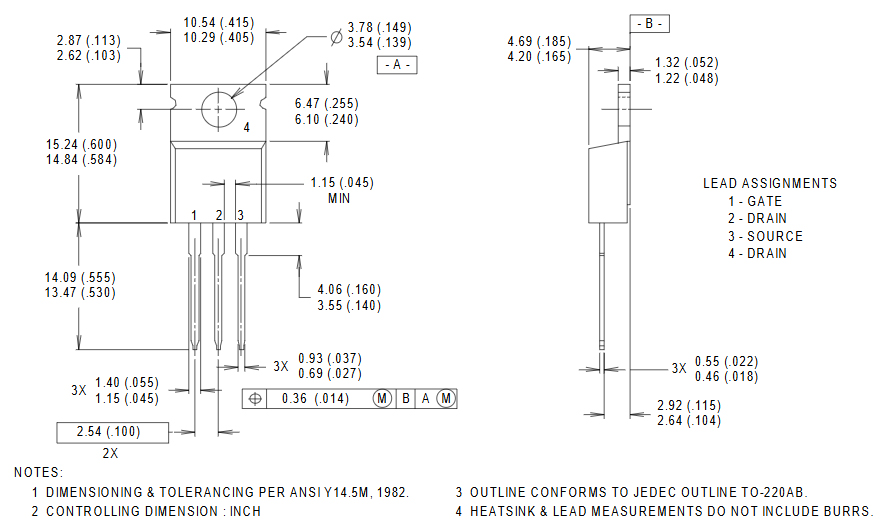

IRF3205 Package Dimensions
