1x40 Pin Right Angle Male Header - 2.54mm Pitch

The 1×40 Pin Male Right Header with a 2.54mm pitch is a commonly used connector component in electronics projects and printed circuit board (PCB) designs. This male header provides a means of establishing connections and interfacing various components, modules, and boards with standard pin spacing. It’s especially popular for connecting to female headers, sockets, or receptacles.

Specificatoins of 1×40 Pin Right Angle Male Header – 2.54mm Pitch0:

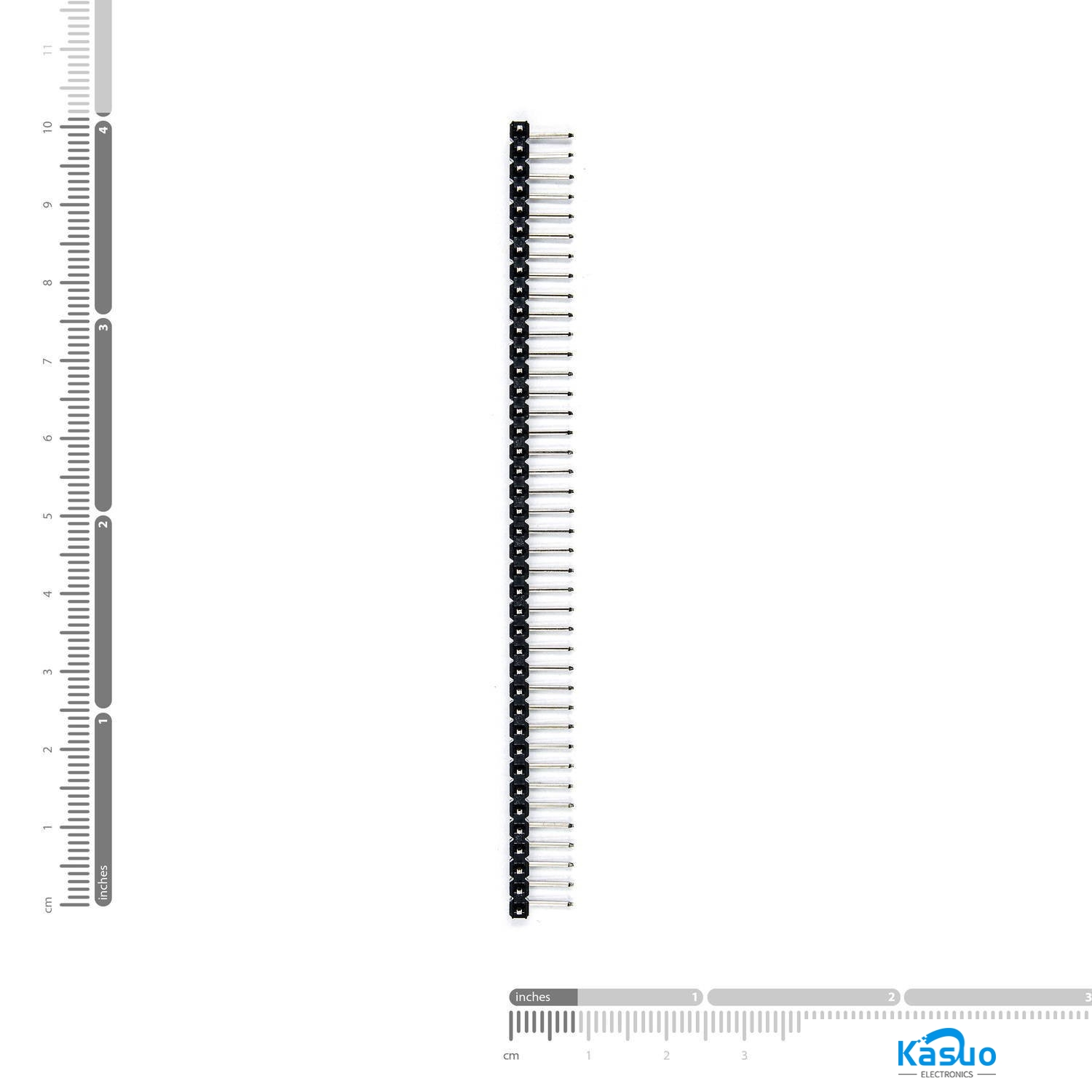

• Connector Type: Male header with 1 row of 40 pins
• Pin Pitch: 2.54mm (0.1 inches)
• Pin Configuration: 1×40 configuration, meaning a single row of 40 pins
• Mounting angle: 90 Degree needle (Right)
• Color:Black

Features of 1×40 Pin Right Angle Male Header – 2.54mm Pitch0:

• Secure Connectivity: The 1×40 pin male right header ensures secure connections when inserted into compatible female headers, sockets, or receptacles.
• Standard Pitch: The 2.54mm pitch (0.1 inches) is a widely used standard, ensuring compatibility with many breadboards, modules, and PCBs.

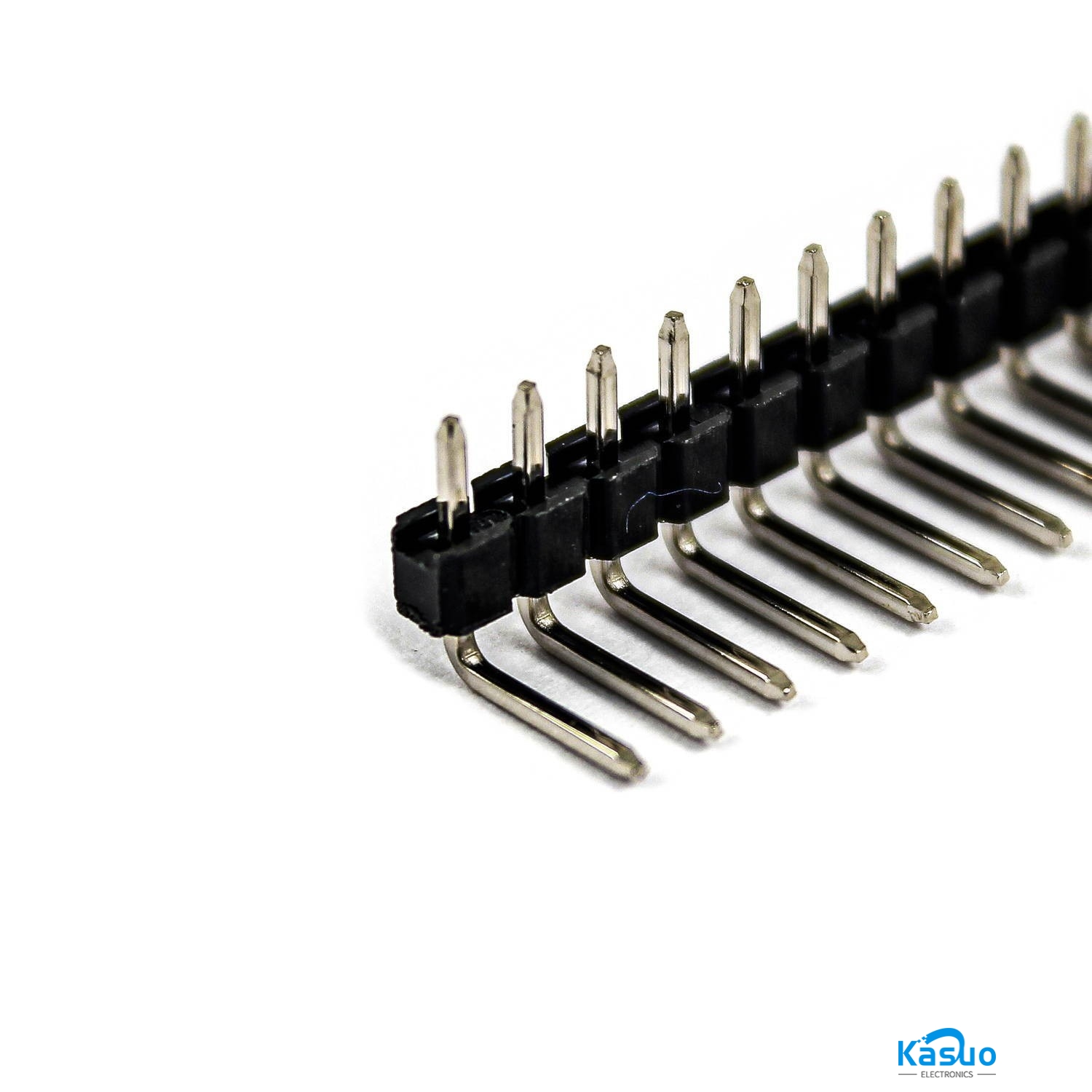

• Right Angle Insertion: The right angle design allows for perpendicular insertion into PCBs, making it suitable for space-constrained designs.
• Usage Tip:
• Insert the 1×40 pin male right header into a corresponding female header, socket, or receptacle to establish reliable electrical connections. Ensure proper alignment and orientation.
• 注意：
• Avoid applying excessive force during insertion to prevent damaging the pins or components. Double-check pin numbering and orientation to ensure proper connectivity.

Extra Notes:

Pin header produced by 2.54 millimetres (0.1 in) , 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in) apart distance between the pins, which 2.54 mm apart is most common.
