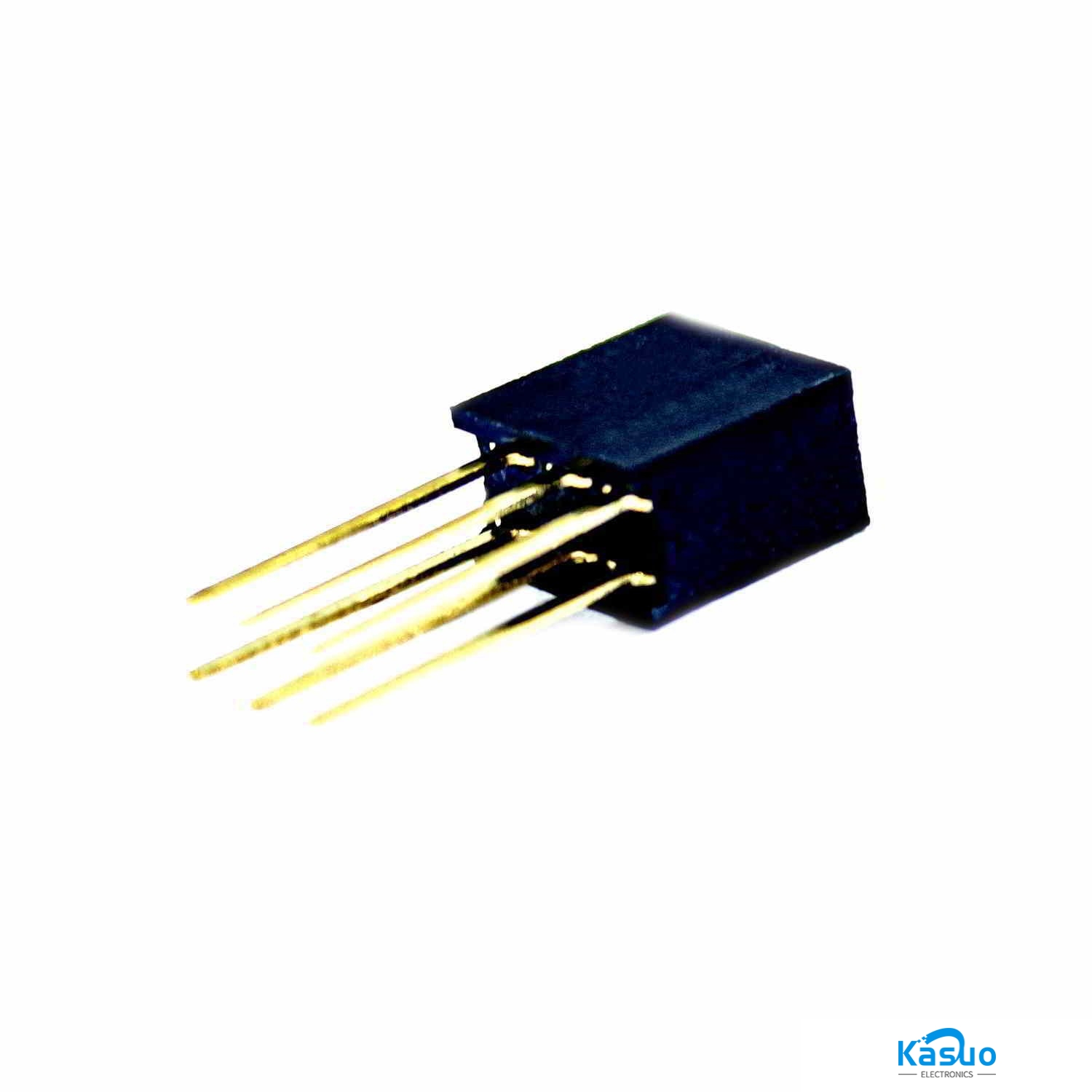

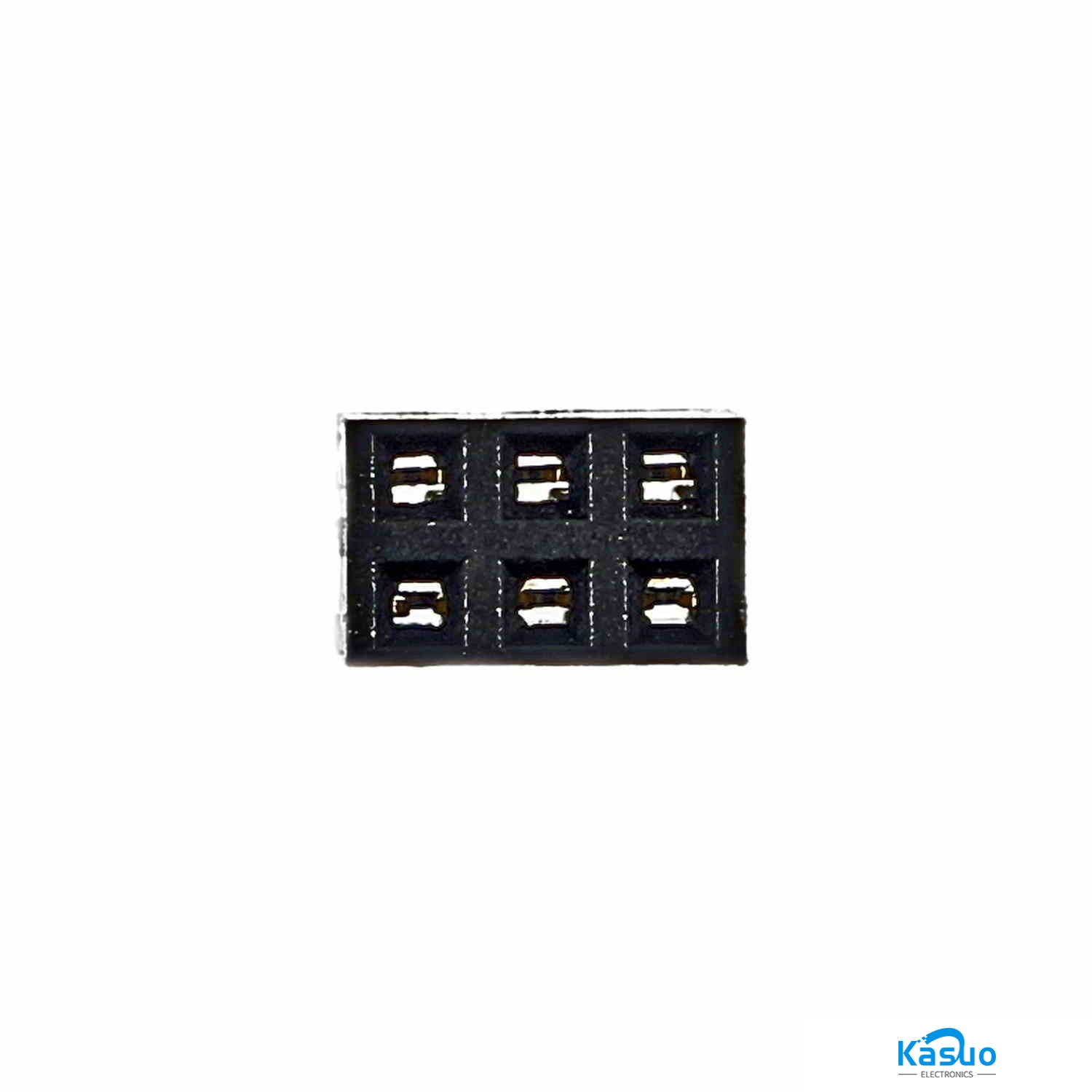

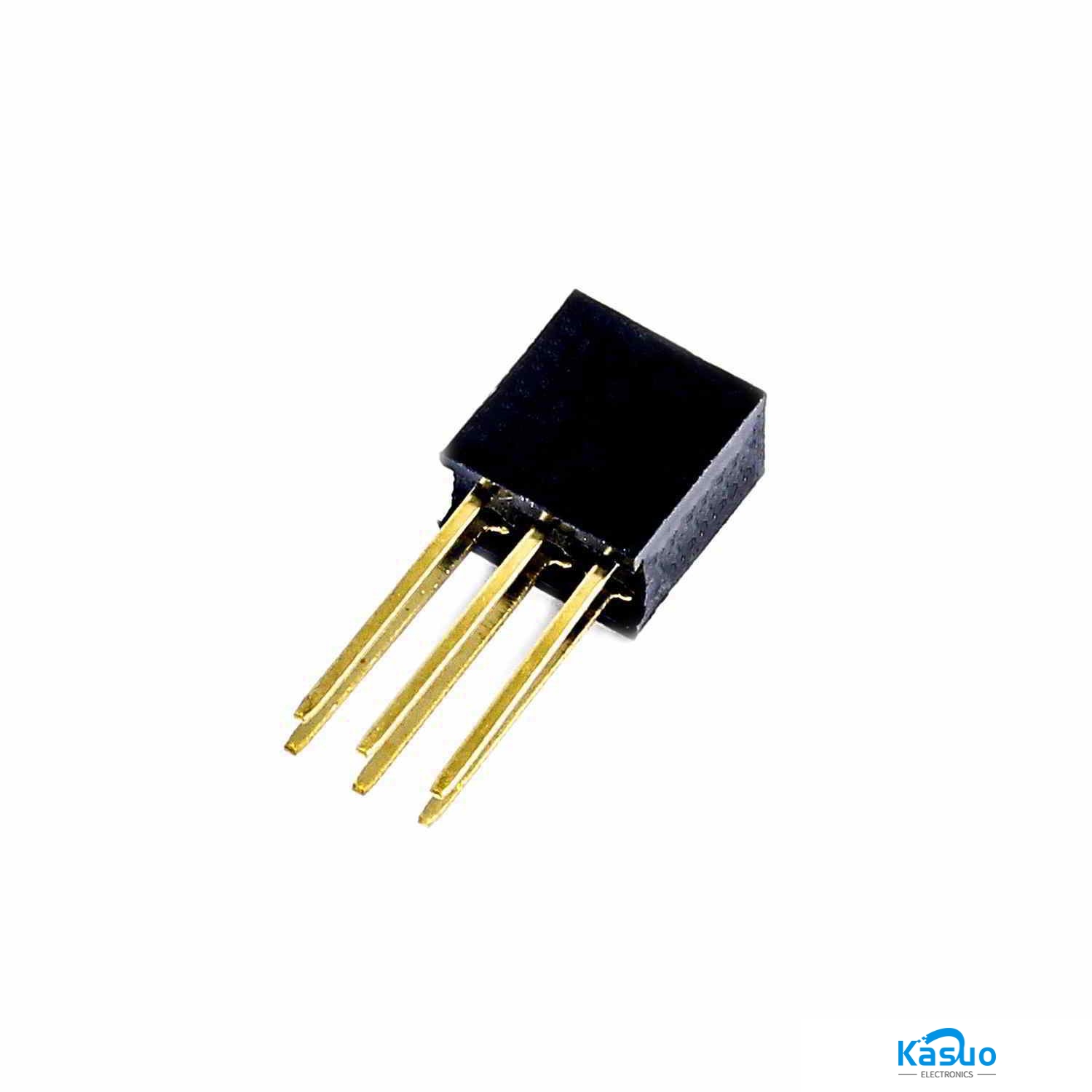

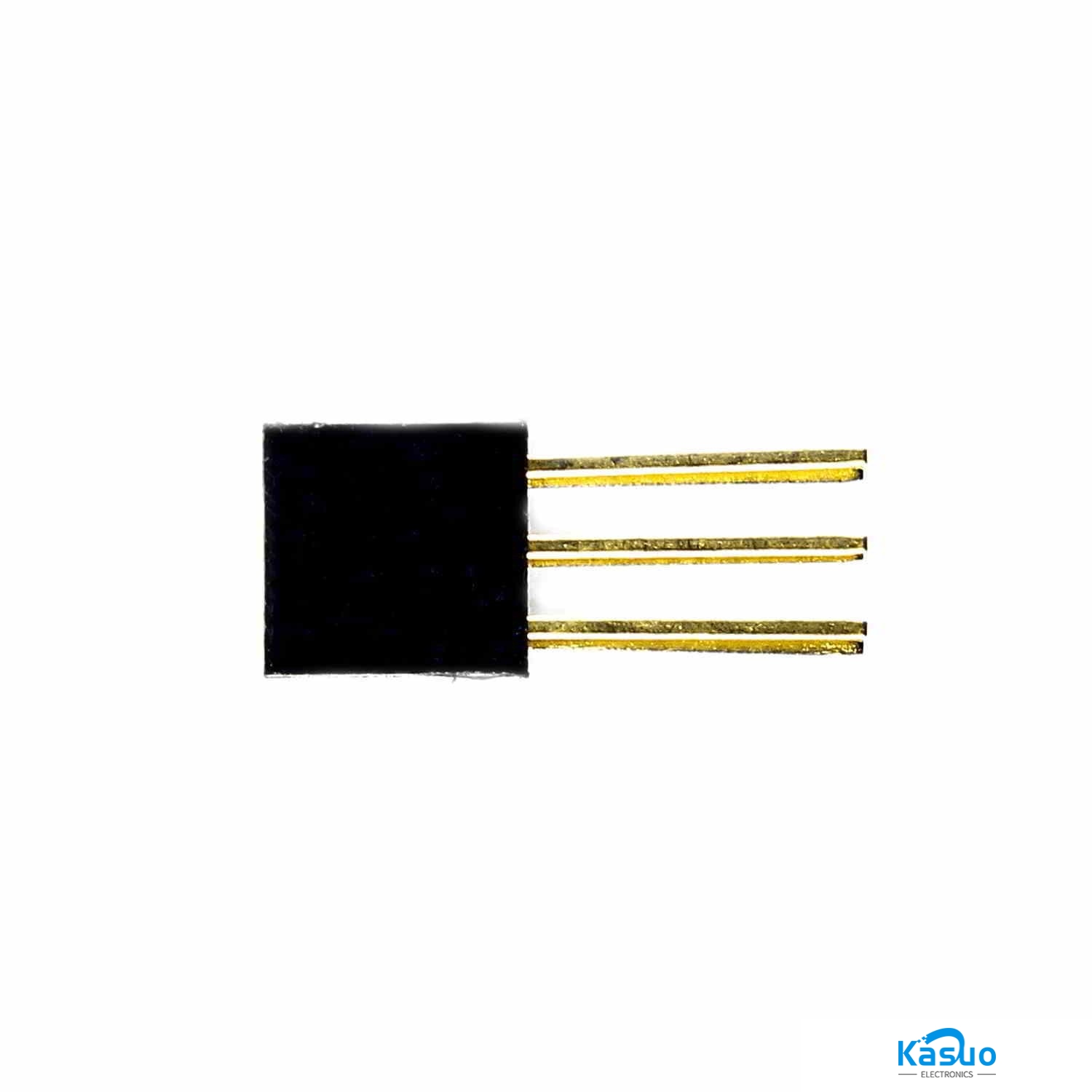

2x3 Pin Female Long Header- 2.54mm Pitch

The 2×3 Pin Female Long Header with a 2.54mm pitch is a valuable electronic component used for creating connections and interfaces in electronics projects, PCB designs, and prototyping. This female header features two rows of 3 pins each, spaced at a standard 2.54mm interval. The extended length of the header makes it suitable for applications requiring additional clearance or connection height.

Specificatoins of 2×3 Pin Female Long Header- 2.54mm Pitch:

• Connector Type: Female header with 2 row of 3 pins each (total of 6 pins)
• Pin Pitch: 2.54mm (0.1 inches)
• Pin Configuration: 2×3 configuration, meaning a two row of 3 pins
• Mounting angle: Straight needle
• Pin Length: 11mm
• Color:Black

Features of 2×3 Pin Female Long Header- 2.54mm Pitch:

• Extended Length: The 11mm length provides additional clearance or options for connecting components, making it versatile for various applications.
• Versatile Connectivity: The 2×3 pin female long header allows for various configurations, including connections to male headers, sockets, or receptacles.
• Standard Pitch: The 2.54mm pitch adheres to a widely used standard, ensuring compatibility with breadboards, modules, and PCBs.
• Usage Tip:
• Solder the 2×3 pin female long header onto a PCB to provide connection points for interfacing with other components, modules, or devices that require extra clearance or connection options. Ensure proper alignment and spacing during soldering.
• 注意：
• Take care when soldering to prevent solder bridges or cold joints that can affect connectivity. Verify proper alignment and orientation of the header pins before soldering to ensure correct connections.

How to Use 2×3 Pin Female Long Header- 2.54mm Pitch:

Pin header produced by 2.54 millimetres (0.1 in) , 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in) apart distance between the pins, which 2.54 mm apart is most common.
