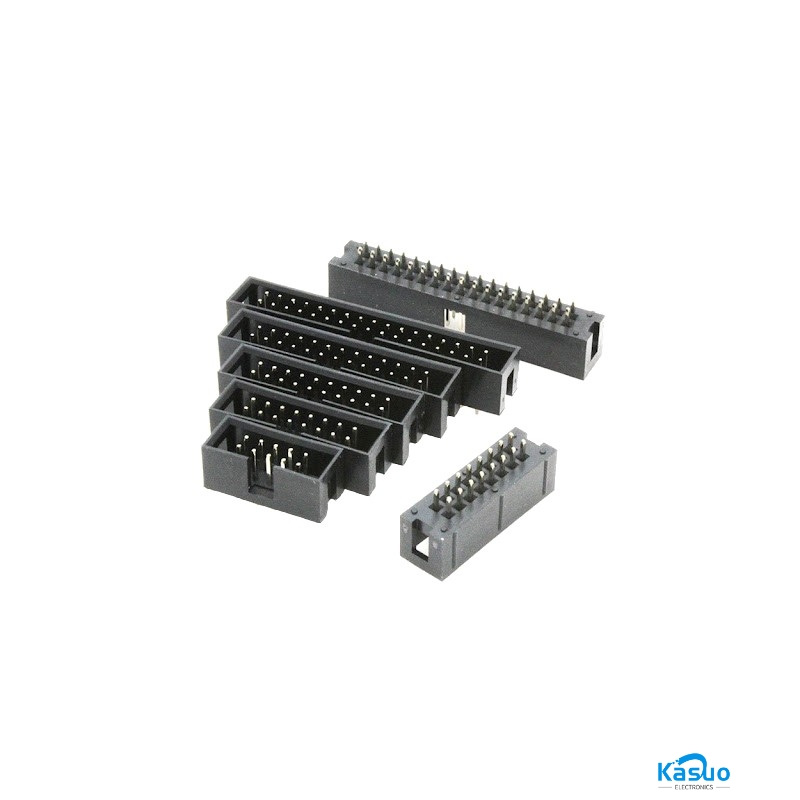

On-Board Male Box Header IDC / IDC Connector

The On-Board Male Box Header IDC/IDC Connector is a versatile and compact connector designed for use in PCB (Printed Circuit Board) applications. It features dual IDC (Insulation Displacement Contact) connectors on both ends, allowing for easy and reliable connection of flat ribbon cables directly onto the PCB. This connector is commonly used for internal board-to-board connections, allowing signals to pass between PCBs within electronic devices such as computers, peripherals, and industrial equipment.

Specifications of On-Board Male Box Header IDC/IDC Connector

• Connector Type: Male Box Header IDC/IDC Connector
• Contacts: Dual row, various pin configurations (e.g., 2×5, 2×10, etc.)
• Pitch: Standard pitch of 2.54mm (0.1 inch)
• Termination Style: Through-hole mounting
• 材料: High-quality plastic and metal
• 現在の定格: Typically 1A per contact
• 動作温度: -40°C to +105°C
• 耐久性: Up to 500 insertion/removal cycles
• 寸法: Varies based on pin configuration and manufacturer specifications
• アプリケーション: PCB connections in computers, peripherals, industrial electronics
• 特徴:
  • Secure connection with IDC technology
  • Easy assembly onto PCBs
  • Reliable signal transmission
  • Suitable for board-to-board connections
  • Compact and space-saving design
