1N4004 Diode Equivalent

This is an equivalent table of 1N4004 transistors, they are mainly used in rectifier, protection circuits.

Picture	Name	Makers	Maximum Power	Maximum Current	Maximum Voltage	Package Type
	1N4004	ON Semiconductor	5W	1A	400V	DO-41

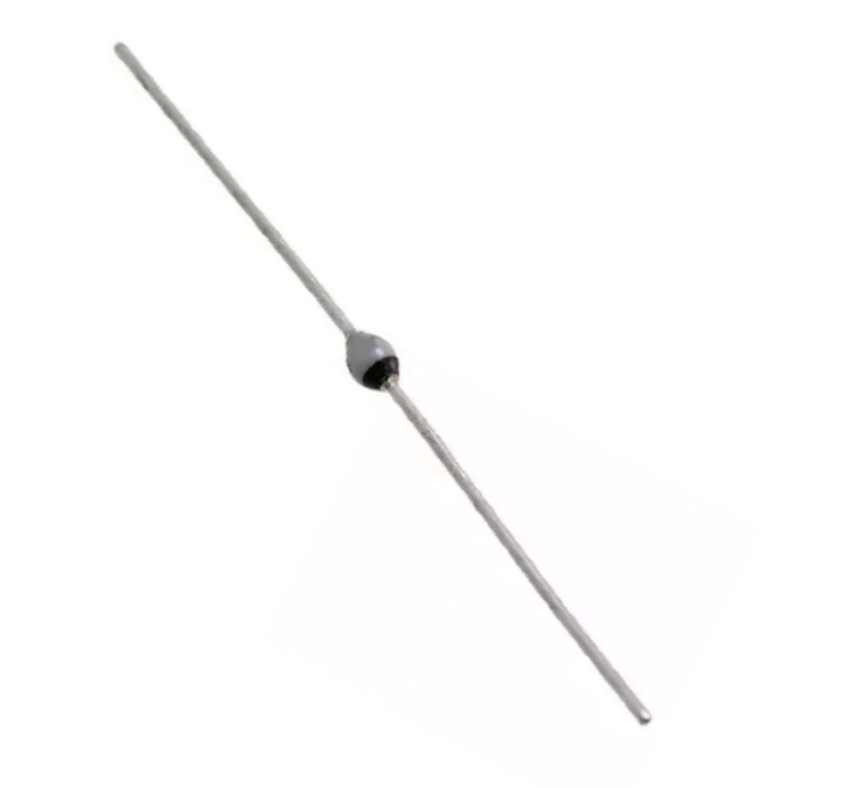

	BYV26C	STMicroelectronics	3W	1A	800V	DO-201AD
	FR104	Vishay	1W	1A	400V	DO-41
	HER104	ON Semiconductor	1W	1A	1000V	DO-41

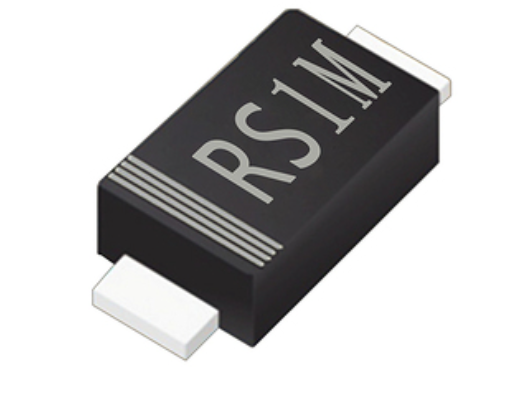

	RS1M	Diodes Incorporated	1W	1A	1000V	SMB
	SS14	Skyworks	1W	1A	40V	SMB

Note:

When using the models in the table for replacement, the actual situation in the circuit must be considered. If replacing with FR104, the maximum power in the circuit should not exceed 1W, otherwise, it may damage the FR104. If replacing with SS14, the maximum voltage, maximum power, and packaging in the actual circuit must be considered. Even if the parameters meet the replacement criteria but the packaging is different, and it cannot be installed in practice, it cannot be replaced either!
