1N5817 | Datasheet, Equivalent, Schottky Diode Fairchild Semiconductor

Discover the high-performance 1N5817Schottky diode with excellent voltage drop characteristics. Access its Reference manual for detailed specifications, including forward voltage and diode equivalent options. Find the 1N5817SMD version, along with its replacement and substitute diodes like the 1N5818 and 1N5819. Compare with other models such as 1N4001, 1N4007, and 1N4148 for your specific needs.

Brands: Fairchild Semiconductor

Download: 1N5817 Datasheet PDF

Price: inquiry

In Stock: 4,971

Voltage-DCReverse(Vr)(Max): 20 V

Current-AverageRectified(Io): 1A

Voltage-Forward(Vf)(Max)@If: 750 mV @ 3 A

Package: DO-204AC, DO-15, Axial

FREE delivery for orders over HK$250.00

Quick response, quick quotaton

Flash shipment,no worries after sales

Original channel,guarantee of the authentic products

1N5817 Diode Equivalent

1N5817 is a Schottky diode that is relatively commonly used in electronic circuits.Here are several alternative models that can replace the 1n5817.

Name	Makers	Maximum average forward rectified current (I_F(AV))	Maximum reverse repetitive peak voltage (VRRM)	Forward voltage drop (VF)	Package Type
1N5817	Texas Instruments	1A	20V	0.4V	DO-41

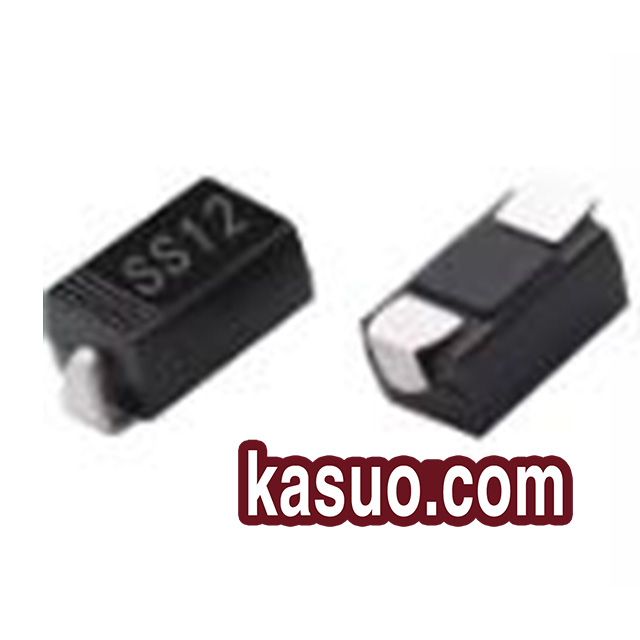

SS14	Vishay	1A	40V	0.45V	SMA (DO-214AC)
SS13	Vishay	1A	30V	0.45V	SMA (DO-214AC)

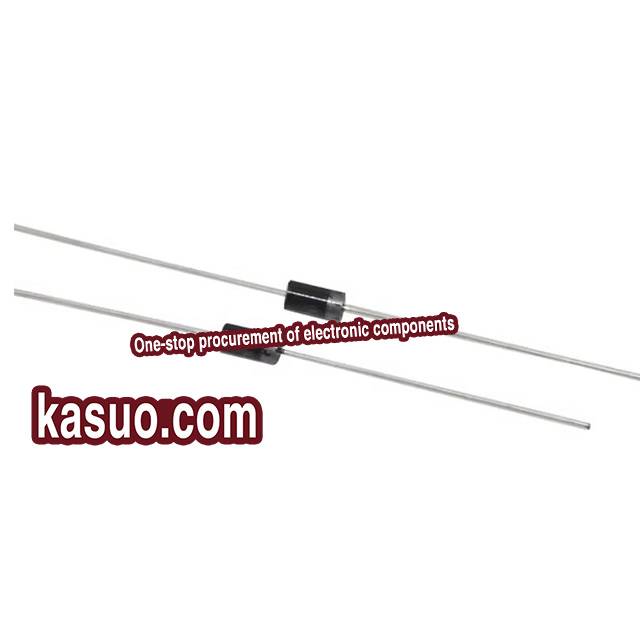

MBR130	Diodes Incorporated	1A	30V	0.4V	DO-41
SBL140	Panjit	1A	40V	0.4V	DO-214AC
1N5821	onsemi	3A	30V	0.4V	DO-201AD

NOTE:

When selecting an alternative model, consider various factors such as voltage, current, and power consumption in accordance with the specific circuit design requirements.
