1N5819 | Schottky Diode, Datasheet, Equivalent, Voltage Drop Taiwan Semiconductor Corporation
- Brands: Taiwan Semiconductor Corporation
- Download: 1N5819 Datasheet PDF
- Price: inquiry
- In Stock: 23,468
- Voltage-DCReverse(Vr)(Max): 40 V
- Current-AverageRectified(Io): 1A
- Voltage-Forward(Vf)(Max)@If: 600 mV @ 1 A
- Package: DO-204AL, DO-41, Axial
FREE delivery for orders over HK$250.00
Quick response, quick quotaton
Flash shipment,no worries after sales
Original channel,guarantee of the authentic products
1N4007 1N4148 1N4937 1N5819 1N5822 2W06 2W10 6A10 6A2 GBL406 GBP206
1N5819 Diode Equivalent
The 1N5819 is a Schottky diode, suitable for low voltage applications. Here is a table of his equivalent replacement types. They have rectification, act as switches, and protect circuits
| Picture | Name | Makers | Maximum Power | Maximum Current | Maximum Voltage | Package Type |
|---|---|---|---|---|---|---|
 |
1N5819 | ON Semiconductor | 1W | 1A | 40V | DO-41 |
 |
HER108 | Vishay | 1W | 1A | 100V | DO-41 |
 |
MBRO530 | ON Semiconductor | 3W | 3A | 50V | SMA |
 |

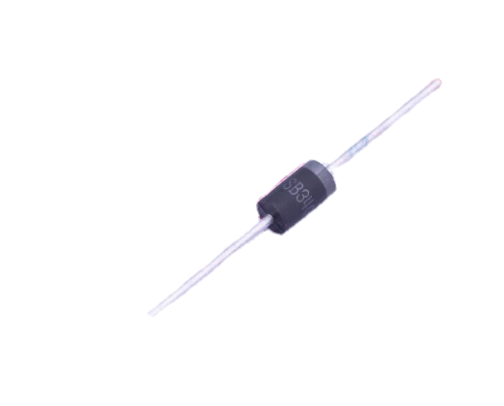

SB340 | STMicroelectronics | 3W | 3A | 40V | DO-201AD |
 |

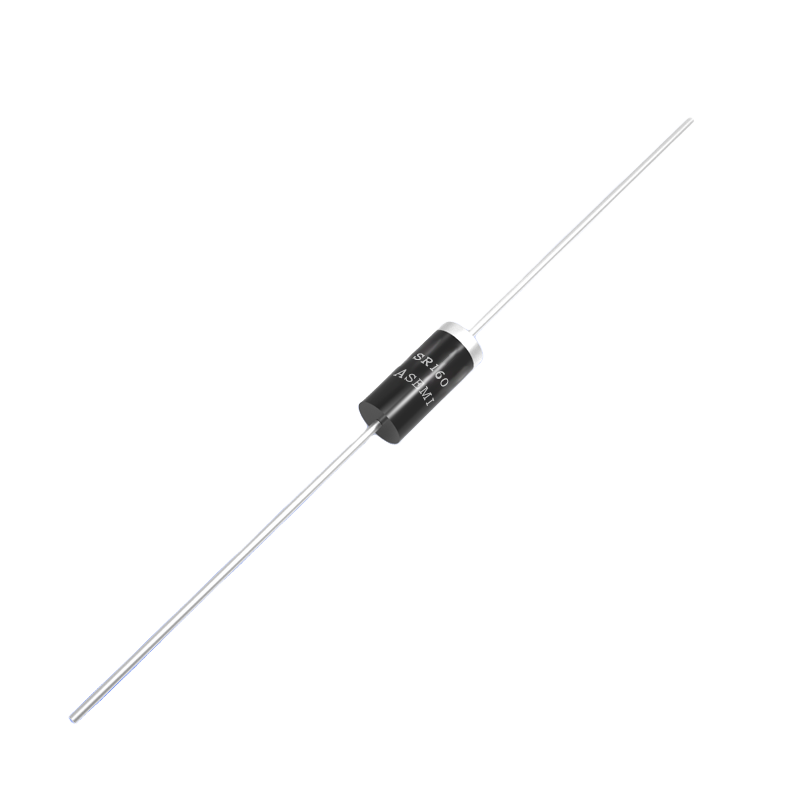

SR160 | Vishay | 1W | 1A | 60V | DO-41 |
 |

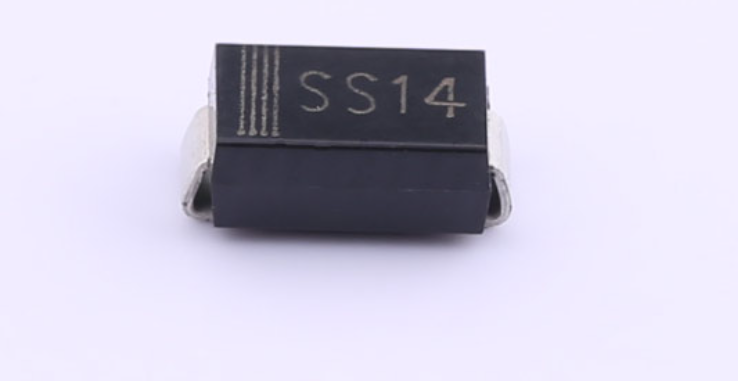

SS14 | Vishay | 1W | 1A | 40V | SMA |
Note:
From the parameter perspective, all models in the table can be directly replaced with 1N5819, but the packaging of MBRO530, SB340, and SS14 is different from that of 1N5819. Therefore, when selecting replacement models, consideration should also be given to whether they can be installed and whether the heat dissipation is good.
