1N5822 | Schottky Diode, Datasheet, Equivalent Diotec Semiconductor

The 1N5822 is a high-performance Schottky diode, offering low voltage drop and fast switching. Known for its specs, it is commonly used in power supply and rectifier applications. The 1N5822 datasheet provides detailed information on its electrical characteristics, including the diode replacement options and equivalents. For those seeking precise information, the 1N5822 PDF includes vital data on its smd packaging and performance. Explore its spice model for simulation purposes and find it available from trusted distributors like DigiKey.

Brands: Diotec Semiconductor

Download: 1N5822 Datasheet PDF

Price: inquiry

In Stock: 27,690

Voltage-DCReverse(Vr)(Max): 40 V

Current-AverageRectified(Io): 3A

Voltage-Forward(Vf)(Max)@If: 950 mV @ 9.4 A

Package: DO-201AA, DO-27, Axial

send your inquiry

FREE delivery for orders over HK$250.00

Quick response, quick quotaton

Flash shipment,no worries after sales

Original channel,guarantee of the authentic products

1N5822 schottky diode heatsinking (4 Solutions!!)

1N5822 Diode Equivalent

This is a table of 1N5822 equivalent components, there are many applications in life that require diodes, such as converting AC to DC and protecting circuits.

Picture	Name	Makers	Reverse recovery time	Maximum current	Maximum voltage	Package Type
	1N5822	Vishay	10ns	200mA	30V	DO-201AD

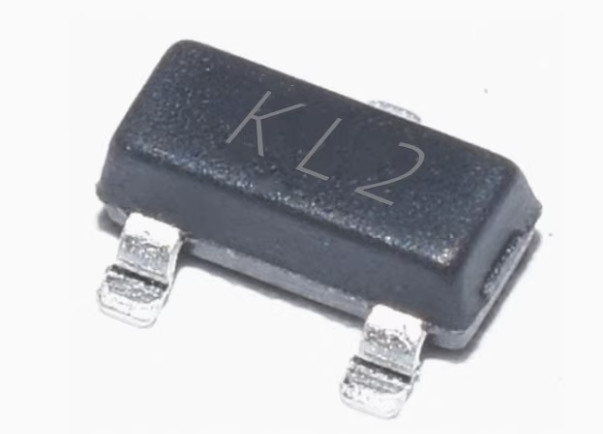

	BAT54A	ON Semiconductor	5ns	3A	40V	SOT-23
	MBR1100	STMicroelectronics	20ns	1A	100V	DO-41
	SB340	Diodes Inc	10ns	3A	40V	DO-214AC
	SR340	RECTRON	50ns	3A	40V	DO-214AC

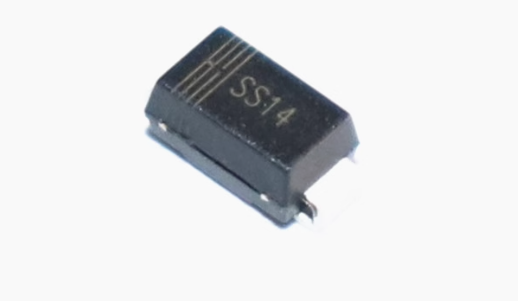

	SS14	Vishay	5ns	1A	40V	SMA

Note: The package type is important when changing the model number. Different packages can lead to some problems such as the need to change the circuit structure. If the reverse recovery time is too large in some applications that require high frequency it will not work properly.。
