2N2222 | transistor | datasheet | pinout onsemi

The 2N2222 is a widely used NPN transistor suitable for various applications. For detailed specifications, refer to the Reference manual, which includes the pinout, pin configuration, and data sheet. This BJT transistor is commonly used in switching and amplification circuits. Compare its performance with other transistors like the 2N3904. Check out the transistor datasheet for full details on the 2N2222's capabilities and characteristics. Ideal for both beginners and advanced electronics projects.

Brands: onsemi

Download: 2N2222 Datasheet PDF

Price: inquiry

In Stock: 16,704

Transistor Type: NPN

Current-Collector(Ic)(Max): 800 mA

Voltage-Collector Emitter Breakdown (Max): 30 V

Package: TO-206AA, TO-18-3 Metal Can

send your inquiry

FREE delivery for orders over HK$250.00

Quick response, quick quotaton

Flash shipment,no worries after sales

Original channel,guarantee of the authentic products

Top 5 Electronics Projects using 2n2222 transistor

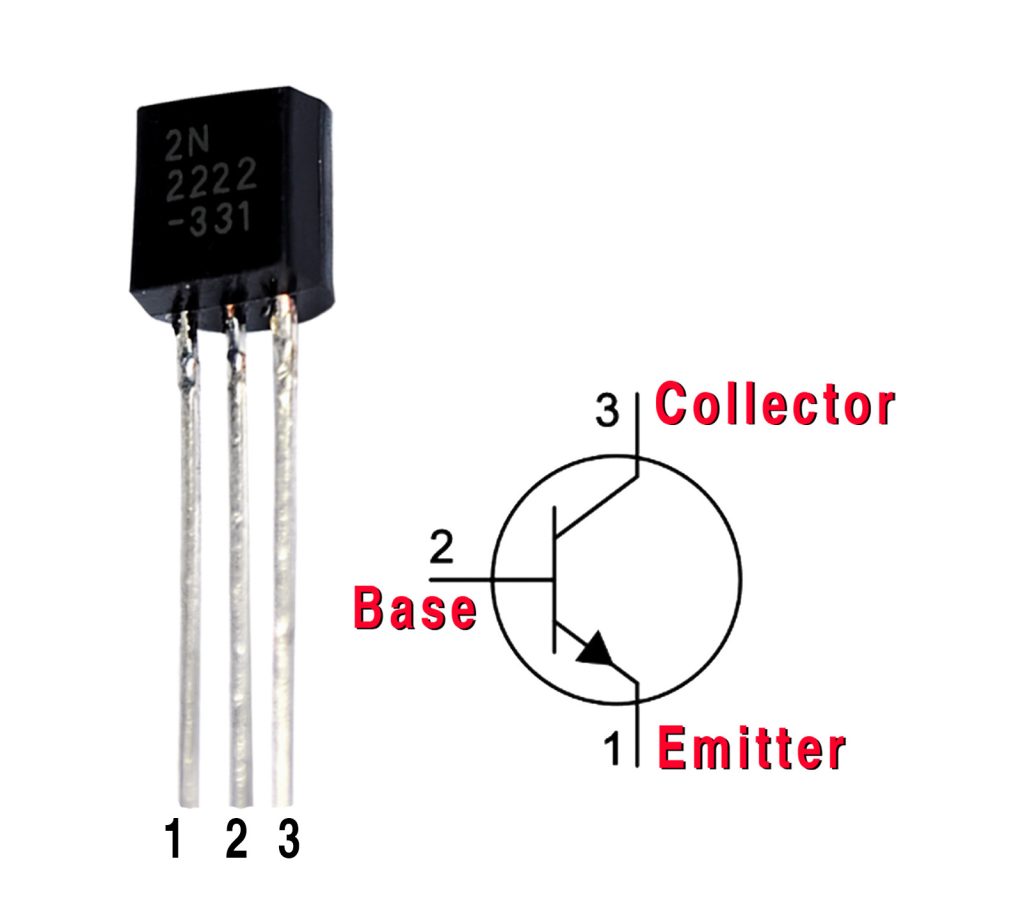

2N2222 Pinout

2N2222 pinout 1

2N2222 Pinout

The 2N2222 is a widely used NPN bipolar junction transistor (BJT). It is commonly employed in switching and amplification applications in various electronic circuits. Understanding its pinout is essential for proper integration into your designs. Below is a summary of the 2N2222 transistor’s pinout and their functions:

Pin	Name	Description
1	Emitter	The Emitter is the reference point for current flowing out of the transistor. It is usually connected to the negative side of the circuit.
2	Base	The Base controls the transistor’s switching. A small current into the Base allows current to flow from Collector to Emitter.
3	Collector	The Collector is the terminal where the current flows into the transistor. It is connected to the positive side of the circuit.

By understanding the 2N2222 pinout and how each terminal functions, you can effectively utilize this versatile transistor in your projects for a variety of applications.
