2N2222 | datasheet | transistor pinout | NPN BJT Solid State Inc.
- Transistor Type: NPN
- Current-Collector(Ic)(Max): 800 mA
- Voltage-Collector Emitter Breakdown (Max): 30 V
- Package: TO-206AA, TO-18-3 Metal Can
FREE delivery for orders over HK$250.00
Quick response, quick quotaton
Flash shipment,no worries after sales
Original channel,guarantee of the authentic products
Transistor diagram npn and pnp 2n2222 2n3904 and 2n3906 transistors pin layout explained
2N2222 Transistor Pinout

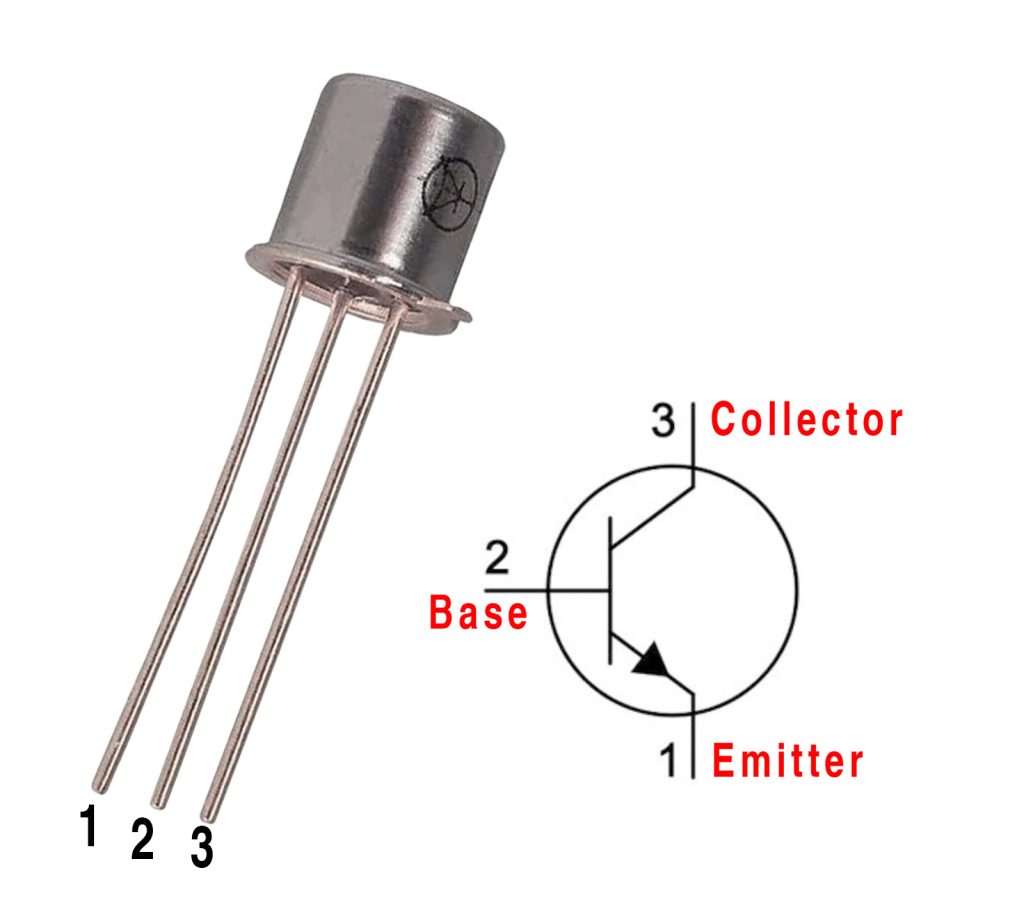

2N2222 Transistor Pinout Diagram
The 2N2222 is a popular NPN bipolar junction transistor (BJT) widely used in electronic circuits for switching and amplification purposes. Below is a brief description of its pinout:
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | Emitter | The emitter is the terminal through which current leaves the transistor. It is typically connected to a common ground or reference voltage in most circuits. In an NPN transistor like the 2N2222, current flows from the collector to the emitter when the base is biased appropriately. |
| 2 | Base | The base is the control terminal of the transistor. A small current entering the base allows a larger current to flow between the collector and emitter. The base-emitter junction is forward biased for the transistor to conduct, and the base current controls the transistor’s switching action. |
| 3 | Collector | The collector is the input terminal where current flows into the transistor. For the transistor to function as an amplifier or switch, a current flows from the collector to the emitter, which is controlled by the base current. |
The 2N2222 is a highly versatile transistor that works effectively in both switching and amplification roles, with the base controlling the transistor’s operation between the collector and emitter.
