2SC5200 Transistor | Datasheet | Amplifier Circuit | Equivalent STMicroelectronics

The 2SC5200 and 2SA1943 are essential power transistors used in audio amplifier circuits. For detailed information, refer to the Reference manual for the 2SC5200 and 2SA1943 specifications, including their pinout, wattage, and amplifier circuit diagram. These transistors are commonly used together in high-power amplifier designs, such as in 2SC5200 2SA1943 amplifier boards and PCB layouts, offering efficient performance in professional audio applications.

Brands: STMicroelectronics

Download: 2SC5200 Datasheet PDF

Price: inquiry

In Stock: 9,129

Transistor Type: NPN

Current-Collector(Ic)(Max): 15 A

Voltage-Collector Emitter Breakdown (Max): 230 V

Package: TO-264-3, TO-264AA

send your inquiry

FREE delivery for orders over HK$250.00

Quick response, quick quotaton

Flash shipment,no worries after sales

Original channel,guarantee of the authentic products

2SC5200

2SC5200 Equivalent

The 2SC5200 is a common high power NPN transistor widely used in audio, power amplifiers, and other high power electronic devices. Equivalent models may vary slightly from manufacturer to manufacturer, but the performance specifications are generally similar. The following are some common 2SC5200 equivalent models and their descriptions

picture	model number	Manufacturer	Package Type	Max Voltage (Vce)	Max Current (Ic)	Power Dissipation (Pd)

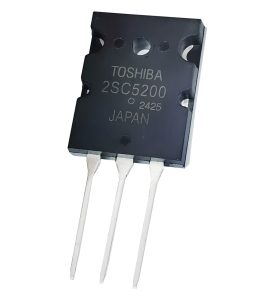

	2SC5200	STMicroelectronics	TO-3P	230V	15A	150W

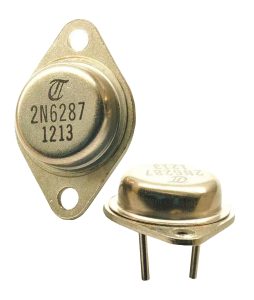

	2N6287	ON Semiconductor	TO-220	230V	15A	150W

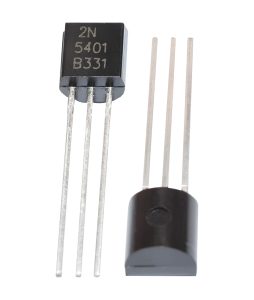

	2N5401	ON Semiconductor	TO-220	160V	10A	80W
	MJ2955	ON Semiconductor	TO-3	60V	15A	115W
	2SC3281	Sanken	TO-220	80V	15A	120W

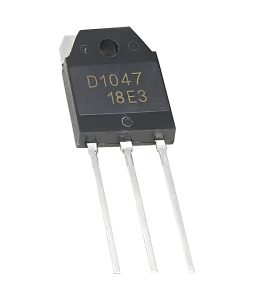

	2SD1047	Sanken	TO-220	80V	15A	120W

These equivalent models can be used interchangeably in many applications, but the selection needs to be matched to the voltage, current and power requirements of the specific circuit.
