2SD882 Equivalent

1：Overview of the 2SD882 ：

2SD882 is a medium-power NPN transistor. The operating voltage of 2SD882 Vceo is 30V. The collector current Ic is 3A. The operating temperature range of 2SD882 is from-55℃ to +150℃. There are various package types available. 2SD882 can handle high collector currents, making it suitable for circuits that require driving large current loads. Additionally, under saturation conduction, the voltage drop between the collector and emitter is low. It can be used in audio amplifiers or DC-DC converters.

2：Alternative model recommendation

BD139：

The collector current of BD139 is 1.5A, and the collector-emitter voltage is 80V. It has good linearity and current amplification ability. It is often used in audio amplification and general switching circuits. In some circuits where the current requirement is not particularly high, it can replace 2SD882.

TTC004B,Q：

The TTC004B and Q are NPN bipolar transistors produced by Toshiba, packaged in TO-126N. The maximum collector-emitter voltage of the TTC004B and Q can reach 160V, with a continuous collector current of 1.5A and a power dissipation of 10W. The highest operating temperature is 150℃. The TTC004B and Q can be used in circuits such as audio drivers and power amplifier stages.

2SD669A：

2SD669A is a medium-power transistor made of NPN silicon material, packaged in the TO-126 form for easy installation on circuit boards. Its collector-emitter voltage rating can reach 160V, and the collector current can reach 1.5A, offering excellent power handling capability. It is commonly used in audio power amplification and power supply circuits, providing stable and reliable signal amplification and power output functions.

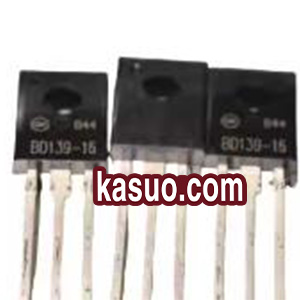

BD13916STU：

The BD13916STU is a general-purpose NPN transistor, using the TO-126 surface mount package. The Vceo of the BD13916STU is 80V, with a collector current Ic that can reach 1.5A, and a power dissipation of 12.5W. The operating temperature range of the BD13916STU is-55℃ to +150℃. The BD13916STU transistor is widely used in audio amplification and power management circuits in 3C digital devices and other fields.
