2x20 Pin Female Header - 2.54mm Pitch - Pack of 5

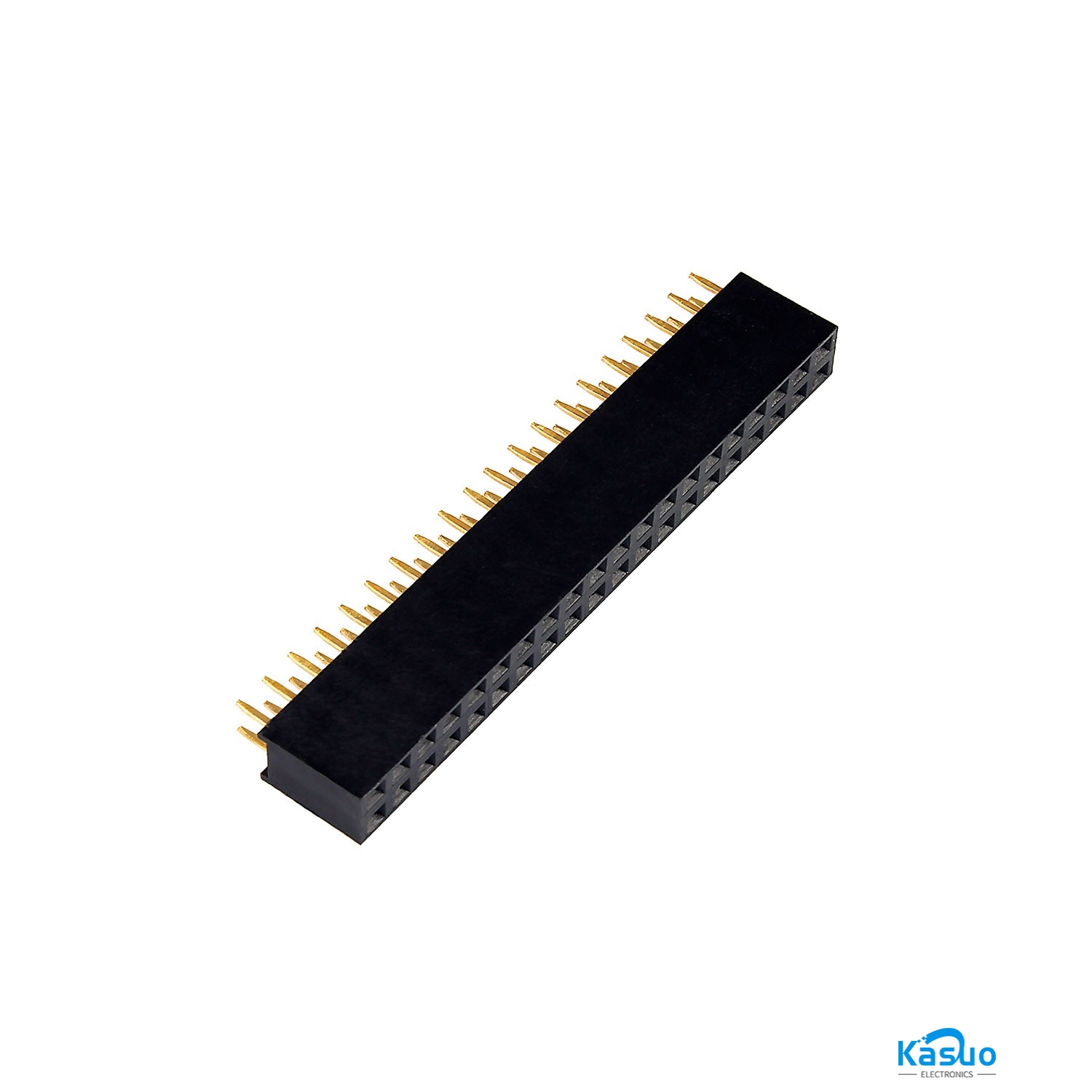

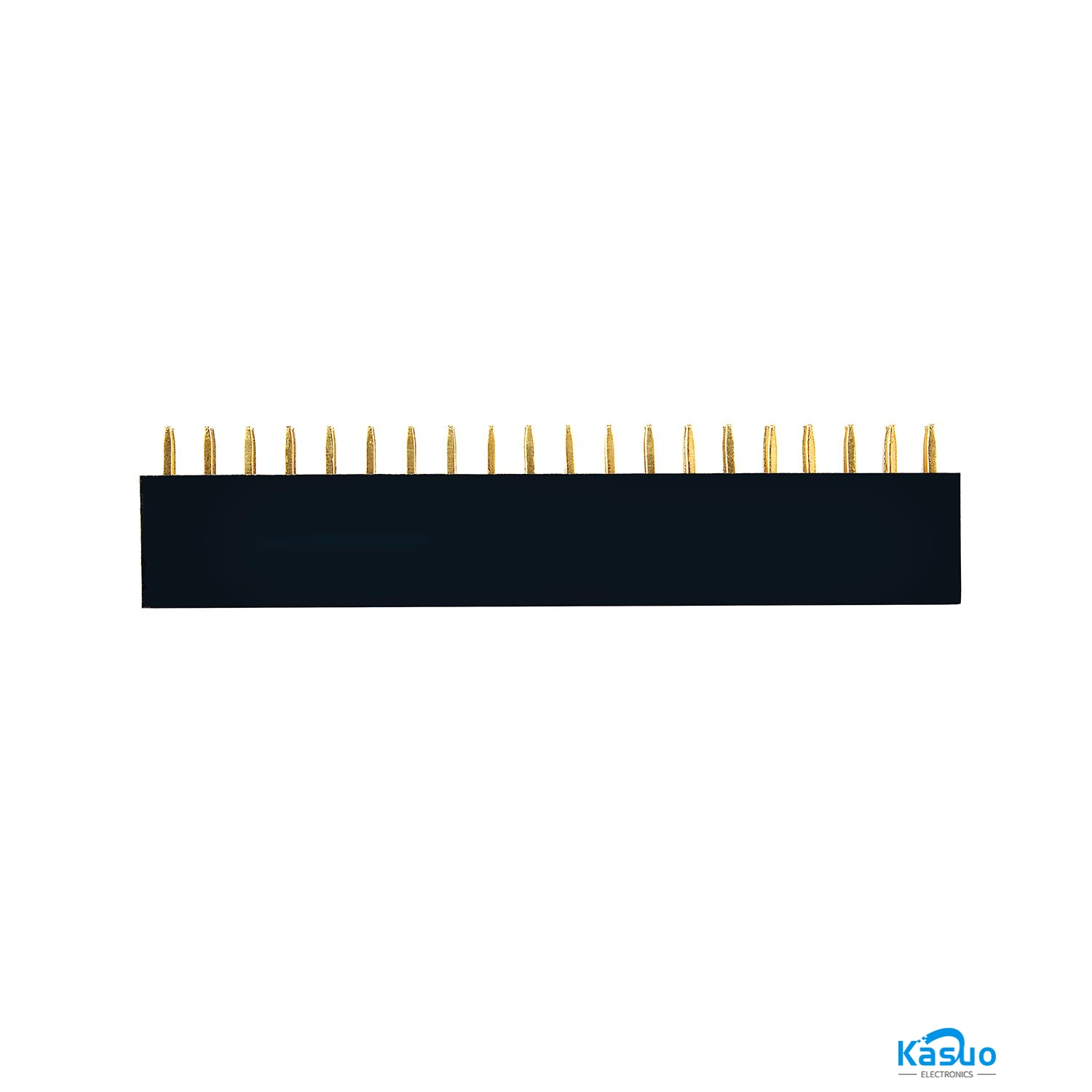

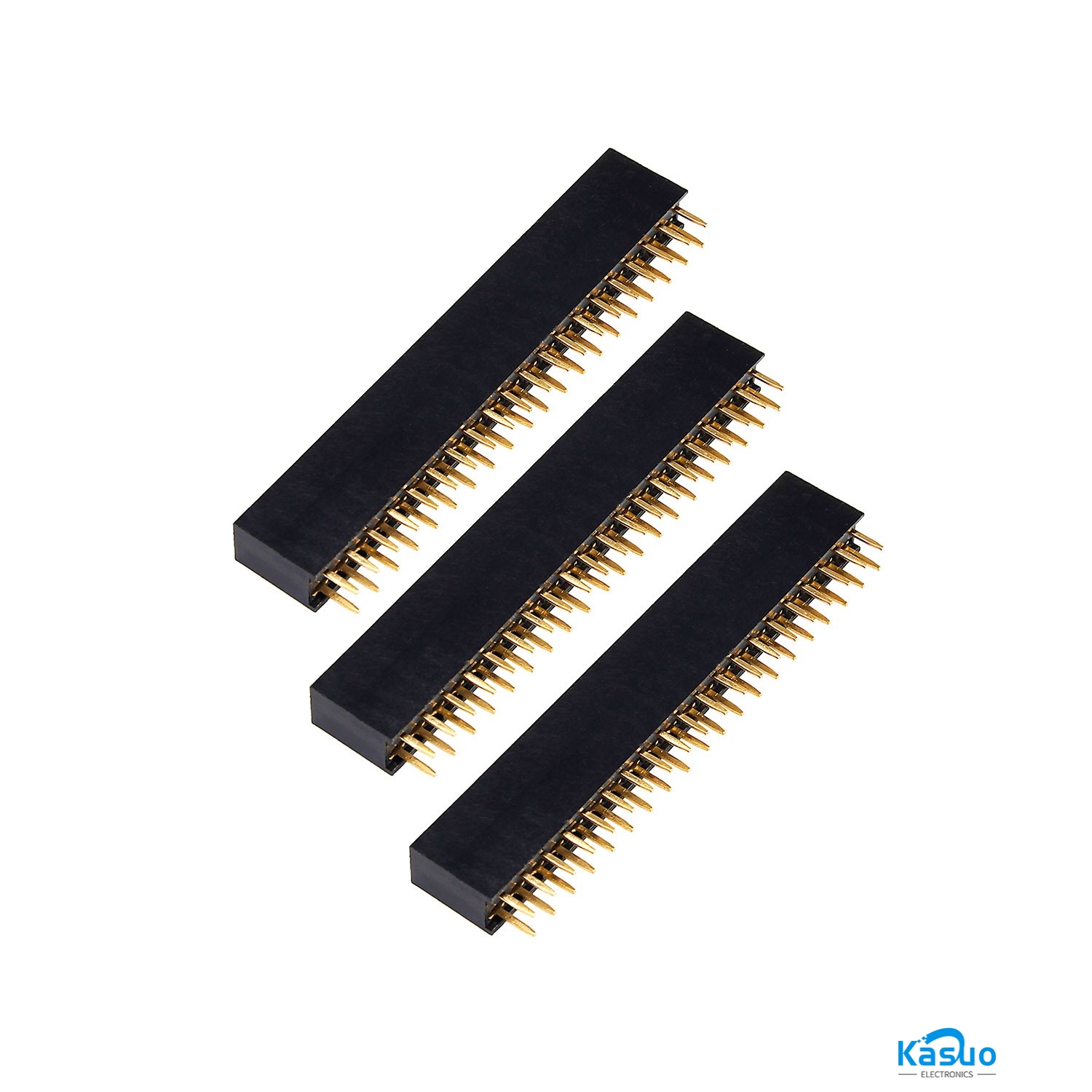

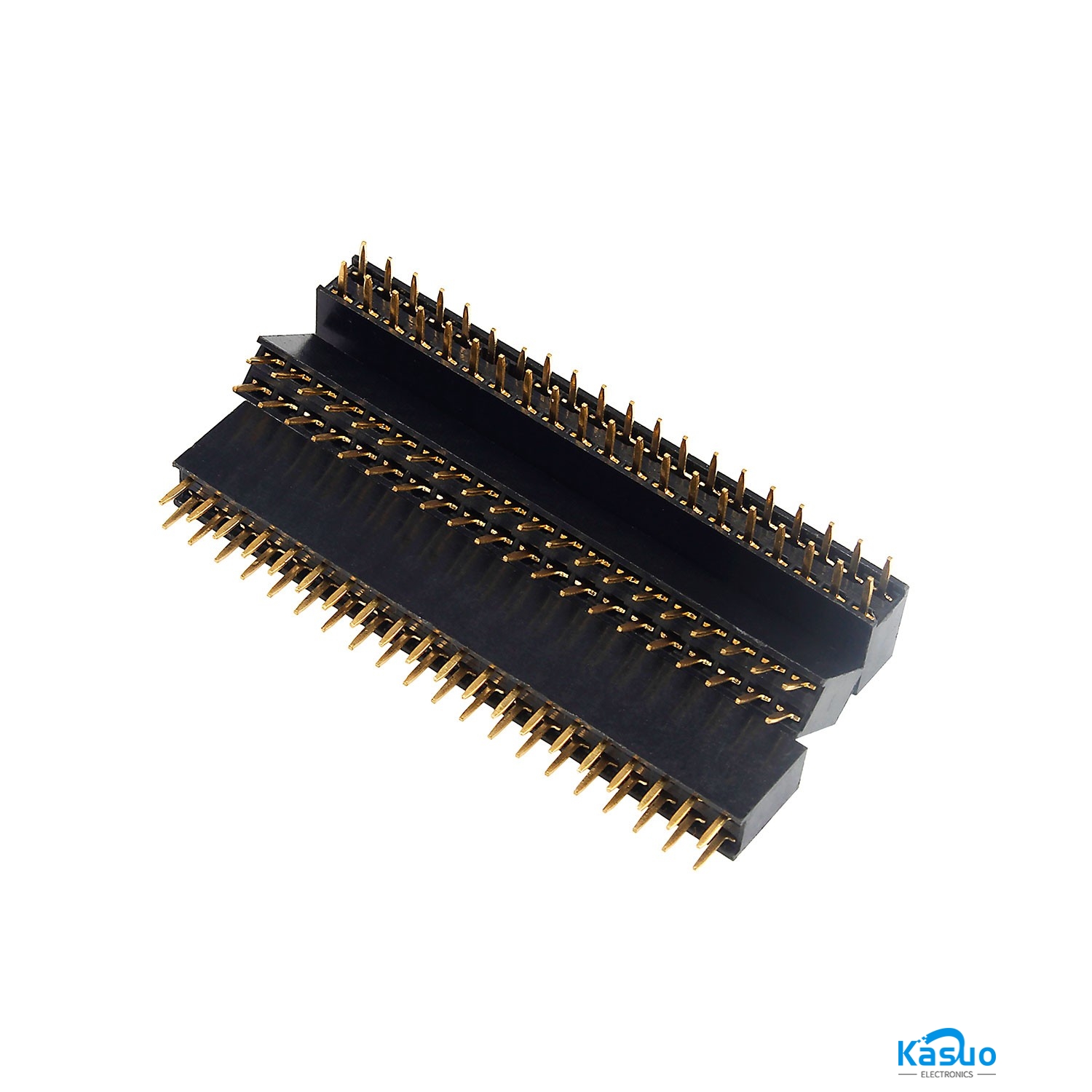

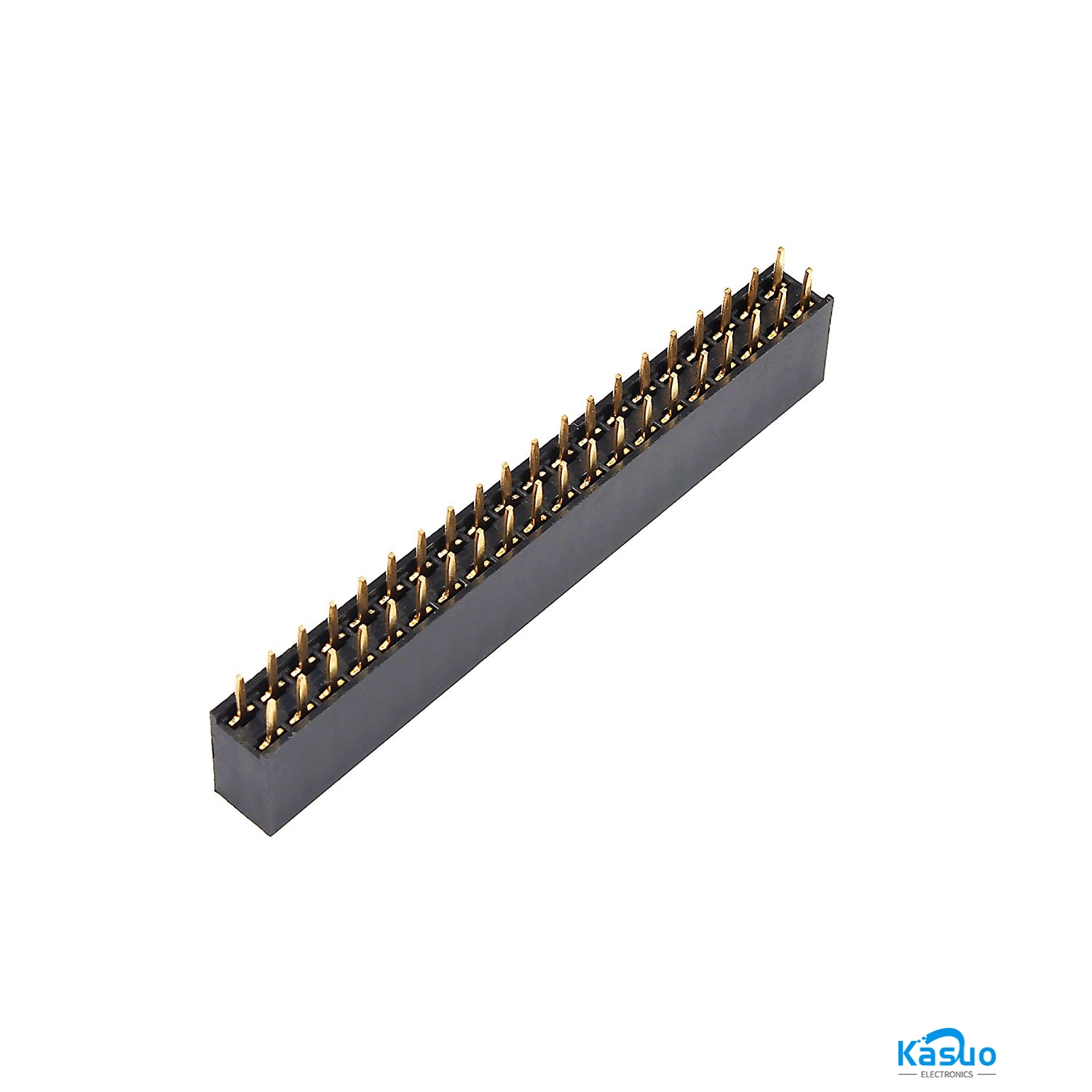

The 2×20 Pin Female Header with a 2.54mm pitch is a vital electronic component used for creating connections and interfaces in electronics projects, PCB designs, and prototyping. This female header features two rows of 20 pins each, spaced at a standard 2.54mm interval, providing a high-density solution for connecting various components, modules, or devices.

Specificatoins of 2×20 Pin Female Header – 2.54mm Pitch:

• Connector Type: Female header with 2 row of 20 pins each (total of 40 pins)

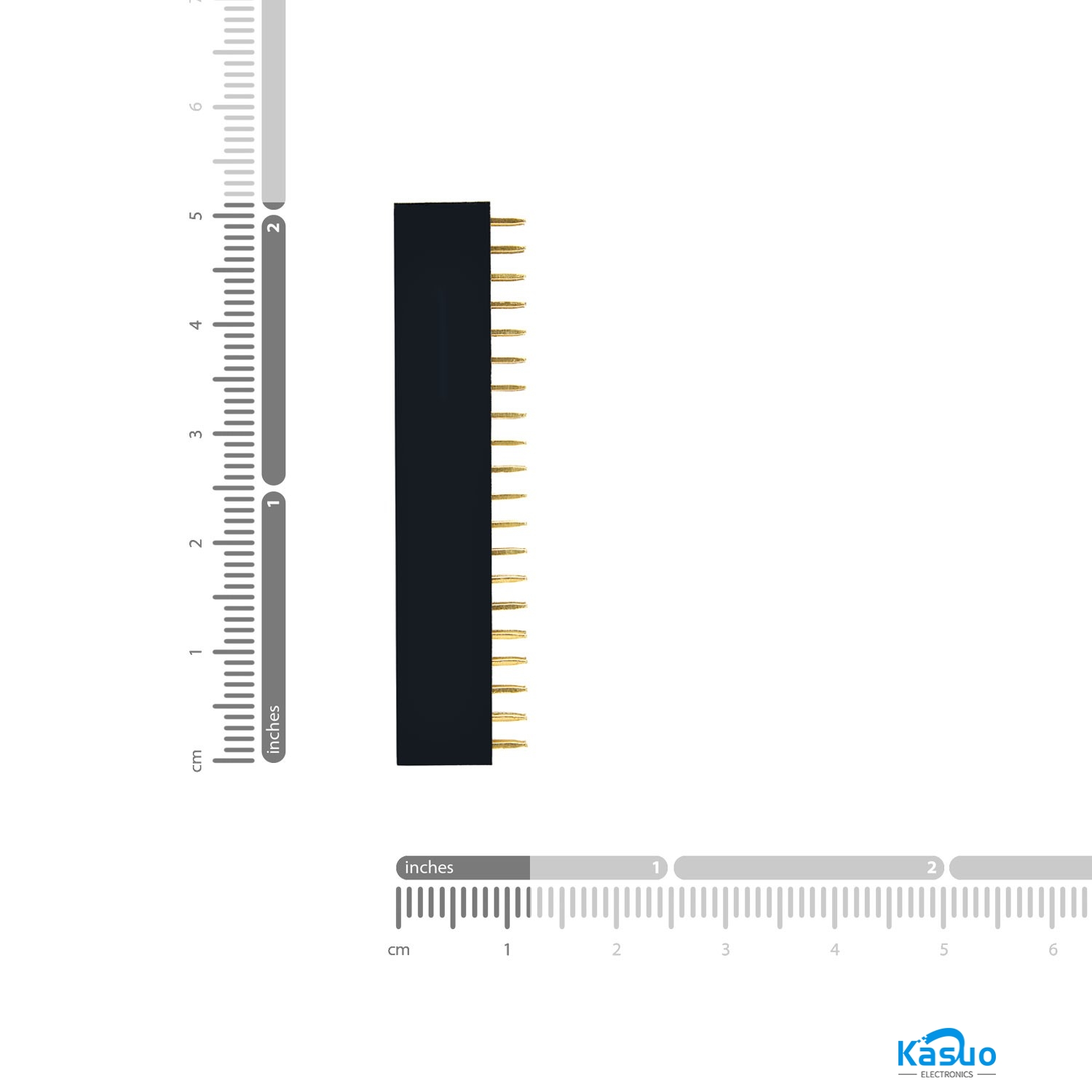

• Pin Pitch: 2.54mm (0.1 inches)
• Pin Configuration: 2×3 configuration, meaning a two row of 20 pins
• Mounting angle: Straight needle
• Color:Black

Features of 2×20 Pin Female Header – 2.54mm Pitch:

• High-Density Connectivity: The 2×20 pin female header offers a high number of pins in a compact form factor, suitable for densely packed designs.
• Versatile Interface: Use it to connect a wide range of components, modules, or devices, enabling complex circuitry and interconnections.
• Standard Pitch: The 2.54mm pitch adheres to a widely used standard, ensuring compatibility with breadboards, modules, and PCBs.
• Usage Tip:
• Solder the 2×20 pin female header onto a PCB to provide a large number of connection points for interfacing with various components, modules, or devices. Ensure proper alignment and spacing during soldering.
• Caution:
• Take care when soldering to prevent solder bridges or cold joints that can affect connectivity. Verify proper alignment and orientation of the header pins before soldering to ensure correct connections.

How to Use 2×20 Pin Female Header – 2.54mm Pitch:

Pin header produced by 2.54 millimetres (0.1 in) , 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in) apart distance between the pins, which 2.54 mm apart is most common.
