AO3400 Super Transistor!

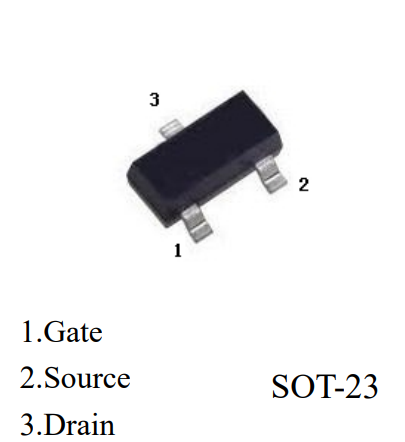

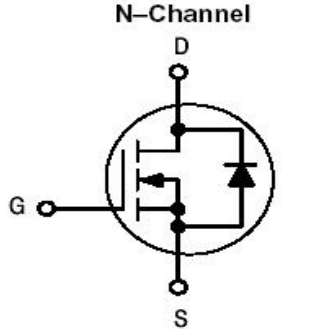

AO3400 Pinout Equivalent

AO3400 is an N-channel enhanced FET, which is characterized by low on-resistance and can pass high currents, which is commonly used in power management, audio amplification, motor drive, etc.

Note: Because the Gate pin is very sensitive to signal changes, the parasitic inductance and parasitic capacitance of the Gate pin should be reduced when designing the circuit.

AO3400 Replacement Model of the Same Type

Picture	Name	Makers	Maximum Power	Maximum Current	Maximum Voltage	Package Type

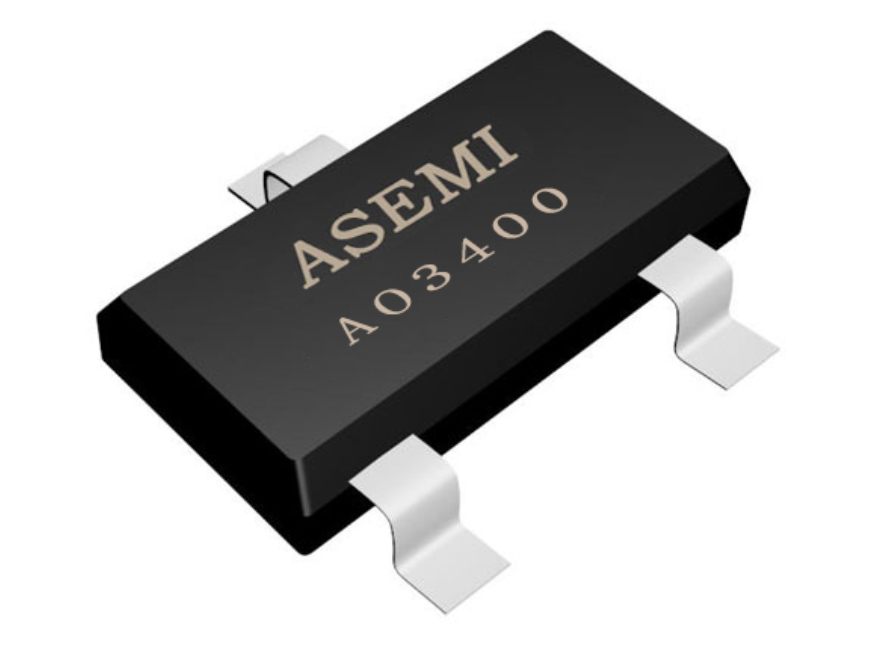

	AO3400	Alpha & Omega	1.4W	5.8A	30V	SOT-23

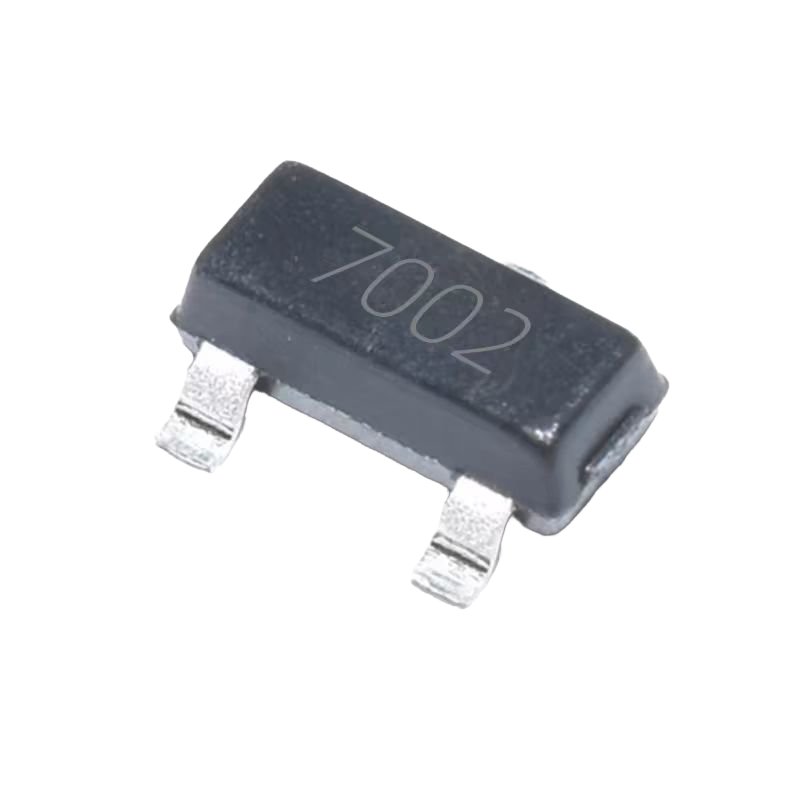

	2N7002	ON Semiconductor	0.2W	0.115A	60V	SOT-23

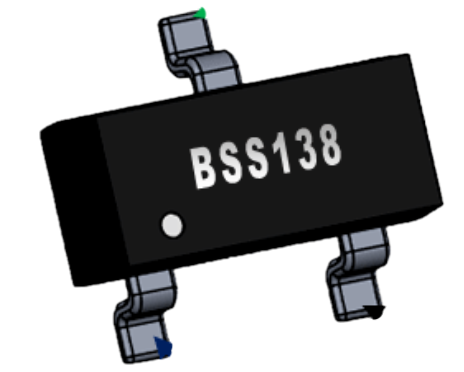

	BSS138	Fairchild	0.36W	0.22A	50V	SOT-23

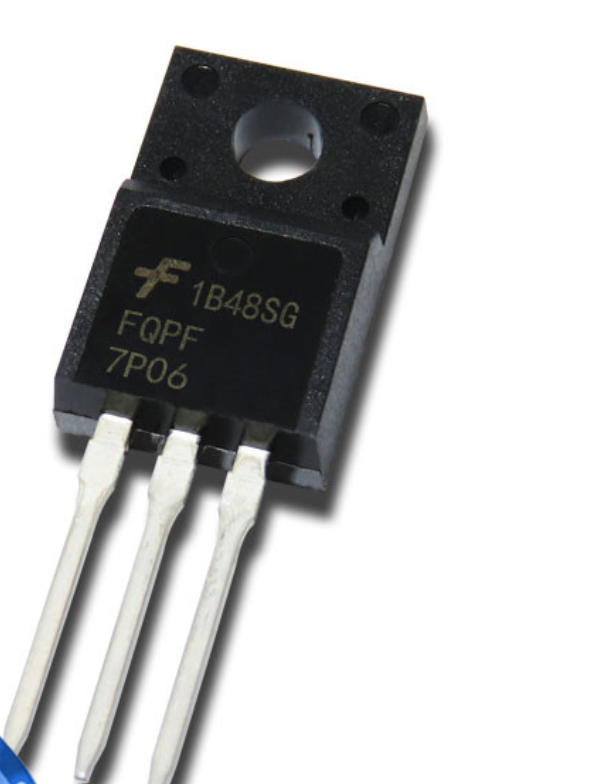

	FQP27P06	Fairchild	120W	27A	60V	TO-220AB

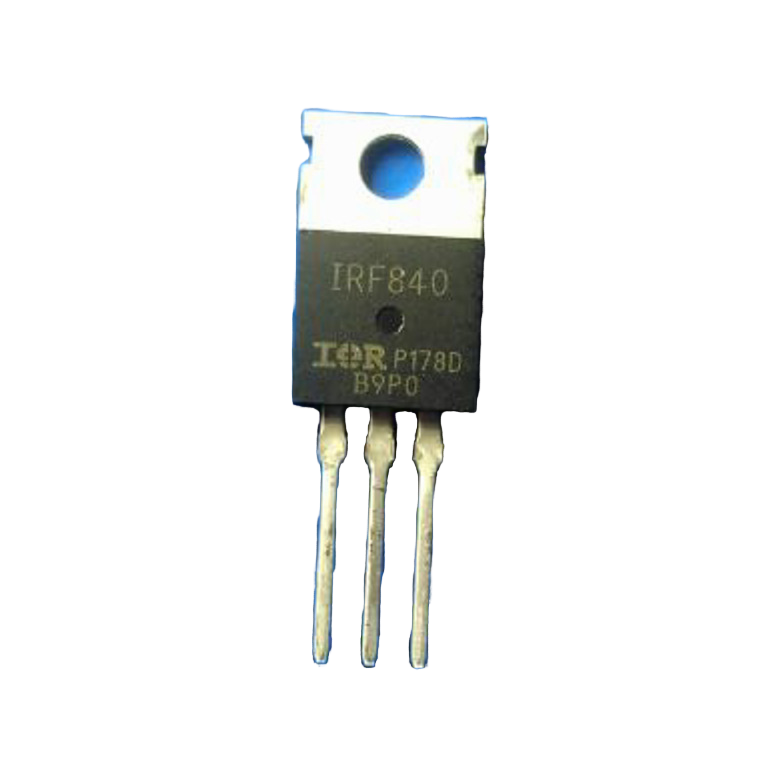

	IRF840	Infineon	134W	8A	500V	TO-220AB
	S12302	Infineon	0.4W	2.1A	20V	SOT-23

The best alternative in Table 2N7002 has a maximum voltage of 60V, which is higher than the voltage that AO3400 can withstand. Their maximum current and maximum power parameters are also the same. The packaging type of 2N7002 is also the same as AO3400.

The BSS148 component has a maximum power of 0.25W and a maximum current of 0.22A, both of which are lower than the parameters of AO3400. So if BSS148 is to be used to replace AO3400, in practical circuits, the current and face should not be higher than these two values.

The FQPF27P06 component has a maximum power of 50W, a maximum current of 27A, and a maximum voltage of 20V. Additionally, its packaging type may not be ideal as a substitute. If we want to replace AO3400 with FQPF27P06, we need to adjust the circuit.

The IRF840 component has a maximum power of 125W, a maximum current of 8A, a maximum voltage of 500V, and a packaging type of TO-220AB. Compared with AO3400, its various parameters are different, so if IRF840 is to replace AO3400, the circuit and related components need to be adjusted.

The maximum current of S12302 is less than AO3400. If the current in the circuit exceeds 2.1A, S12302 cannot meet the demand and may cause overheating or even damage.
