AO3400A Pinout

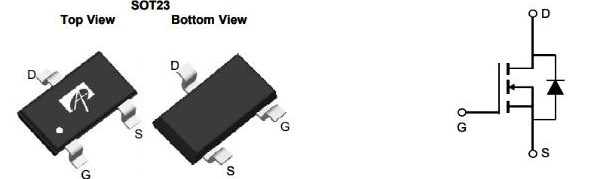

ao3400a pinout Diagram

The AO3400A is a high performance N-channel field effect transistor (MOSFET) that occupies an important position in the electronics industry for its excellent electrical performance and wide range of applications. It utilizes advanced trench technology with excellent on-resistance (RDS(ON)), low gate charge, and gate voltage operation down to 2.5 V. Suitable for a wide variety of applications requiring efficient power management, high-frequency switching, and power amplification, in the design of modern electronic equipment, the AO3400 is an important component. Specific pin definitions are as follows

Above are the detailed definitions and descriptions of the three pins (Gate, Drain, and Source) of the AO3400A. Correctly designing the circuit according to the pins and requirements is the key to a properly functioning circuit.
