ATMEGA162-16PU datasheet, pdf & price

Discover the ATMEGA162-16PU Reference Manual for comprehensive technical details, pin spacing information, and specifications. Access the PDF to explore essential data that aids in integrating this component into your projects efficiently.

Brands: Microchip Technology

Download: ATMEGA162-16PU Datasheet PDF

Price: inquiry

In Stock: 515

CoreProcessor: AVR

Core Size: 8-Bit

Peripherals: Brown-out Detect/Reset, POR, PWM, WDT

Package: 40-DIP (0.600, 15.24mm)

FREE delivery for orders over HK$250.00

Quick response, quick quotaton

Flash shipment,no worries after sales

Original channel,guarantee of the authentic products

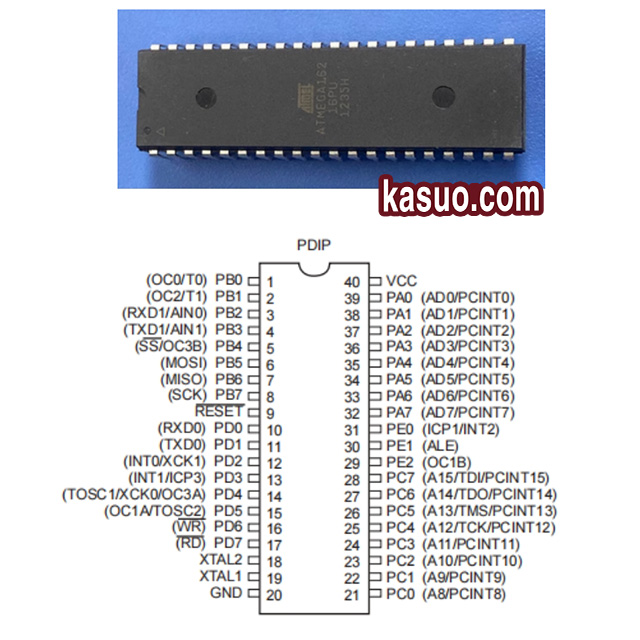

ATmega162 Pinout

atmega162 pinout 1

1：Overview of the ATmega162：

ATmega162 is an 8-bit microcontroller (MCU) based on the AVR architecture. It is a chip designed specifically for embedded applications. ATmega162 includes 16KB Flash program memory, 1KB of SRAM data memory and 512 bytes of EEPROM non-volatile memory, and supports online programming and repeated erase.

The chip is packaged in 40-pin PDIP/SOIC/TQFP and operates between 2.7V and 5.5V. The chip has a maximum frequency of 16MHz, an integrated 8-channel 10-bit ADC, SPI/I2C/UART communication interface, and watchdog timer.

Typically used in industrial control, data acquisition systems, intelligent instruments, communication interface expansion and low-cost embedded equipment development.

2：ATmega162 Important pin function definition:

Pin Number	Pin Name	Description
Pin 40	VCC	Digital supply voltage
Pin 20	GND	GND
Pin 32–39	PortA (PA7..PA0)	Port A is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The Port A output buffers have symmetrical drive characteristics with both high sink and source capability.
Pin 8–1	PortB (PB7..PB0)	Port B is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The Port B output buffers have symmetrical drive characteristics with both high sink and source capability.
Pin 21–28	PortC (PC7..PC0)	Port C is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The Port C output buffers have symmetrical drive characteristics with both high sink and source capability.
Pin 10–17	PortD (PD7..PD0)	Port D is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The Port D output buffers have symmetrical drive characteristics with both high sink and source capability.
Pin 29–31	PortE (PE2..PE0)	Port E is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The Port E output buffers have symmetrical drive characteristics with both high sink and source capability.
Pin 9	RESET	Reset input. A low level on this pin for longer than the minimum pulse length will generate a Reset, even if the clock is not running.
Pin 19	XTAL1	Input to the Inverting Oscillator amplifier and input to the internal clock operating circuit.
Pin 18	XTAL2	Output from the Inverting Oscillator amplifier.
