BAV70 | datasheet | diode | equivalent Rectron USA

Find the Reference manual for BAV70 and explore the diode specifications from trusted brands like Fairchild, Nexperia, Diodes Inc., Infineon, and Onsemi. Access BAV70 alternatives, marking, and replacement options. Perfect for engineers and component buyers.

Brands: Rectron USA

Download: BAV70 Datasheet PDF

Price: inquiry

In Stock: 15,512

Voltage-DCReverse(Vr)(Max): 100 V

Current-AverageRectified(Io)(perDiode): 215mA (DC)

Voltage-Forward(Vf)(Max)@If: 1.25 V @ 150 mA

Package: TO-236-3, SC-59, SOT-23-3

FREE delivery for orders over HK$250.00

Quick response, quick quotaton

Flash shipment,no worries after sales

Original channel,guarantee of the authentic products

BAV70 Equivalent

BAV70 is a double common-cathode Schottky diode, which means it integrates two Schottky diodes connected with a common cathode inside. It is equivalent to having two independent diodes in one package, and their cathodes are connected together.

Name	Maker	Max Forward Current (I_F(AV))	Max Reverse Voltage (VRRM)	Forward Voltage Drop (VF)	Package Type
BAV70	Hongjiacheng	200mA	30V	1.25V	SOT-23

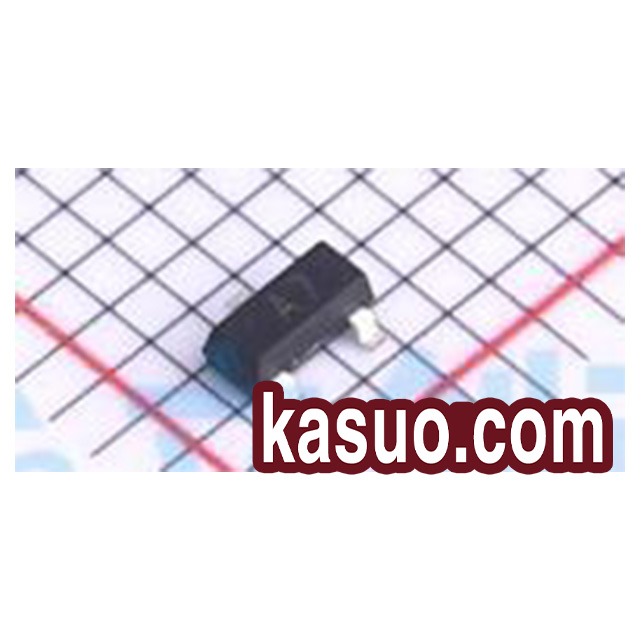

BAV99	Nexperia	200mA	70V	1.25V	SOT-23
BAS16	onsemi	150mA	75V	1.25V	SOT-23
BAT54S	Nexperia	200mA	30V	0.8V	SOT-23

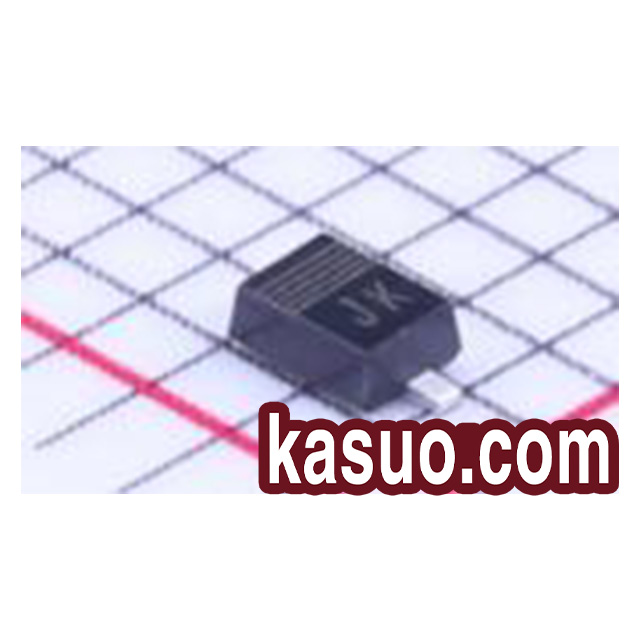

BAT46W	Nexperia	250mA	100V	0.85V	SOD-323F

NOTE:

When selecting an alternative model, consider various factors such as voltage, current, and power consumption in accordance with the specific circuit design requirements.
