BC817-40 Transistor | Datasheet | SMD | Pinout Diotec Semiconductor

The BC817-40 is a reliable NPN transistor used for switching and amplification, available in various configurations including SOT-23 and SMD packages. With options like BC817-40-TP and BC817-40-7-F, this transistor is ideal for various applications. For detailed specs, refer to the Reference manual to explore its performance, pinout, and its equivalents from Fairchild, Nexperia, and Infineon.

Brands: Diotec Semiconductor

Download: BC817-40 Datasheet PDF

Price: inquiry

In Stock: 3,000

Transistor Type: NPN

Current-Collector(Ic)(Max): 800 mA

Voltage-Collector Emitter Breakdown (Max): 45 V

Package: TO-236-3, SC-59, SOT-23-3

FREE delivery for orders over HK$250.00

Quick response, quick quotaton

Flash shipment,no worries after sales

Original channel,guarantee of the authentic products

BC817-40 Pinout

bc817 pinout

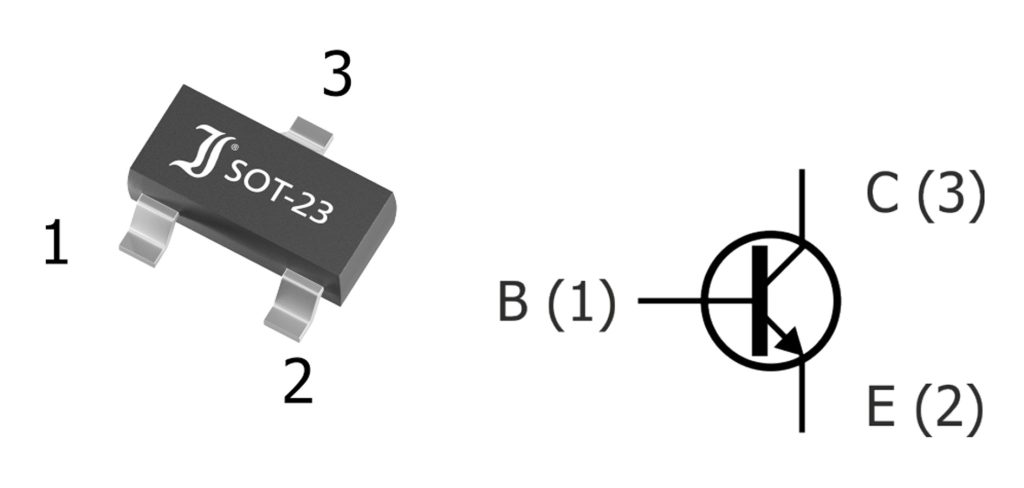

BC817-40 Pinout Diagram

The BC817-40 is a general-purpose NPN transistor housed in a SOT-23 package. It has three pins: the base (B), emitter (E), and collector (C). The base is responsible for controlling the current flow between the emitter and collector, allowing the transistor to act as a switch or amplifier in various electronic circuits.

Pin Number	Pin Name	Description
1	Base (B)	The base terminal, controls current flow through the transistor.
2	Emitter (E)	The emitter terminal, the flow of current leaves the transistor from here.
3	Collector (C)	The collector terminal, where the current enters the transistor.

End of Pinout Summary: Understanding the pinout and proper connection of the BC817-40 transistor ensures its correct functionality in circuit designs, whether it’s used for switching applications or signal amplification.
