Key Features of the BLM18PG121SN1D

The BLM18PG121SN1D is a high-performance chip inductor designed to provide excellent noise suppression and filtering in electronic circuits. With a compact size and high inductance, it’s ideal for applications that require efficient electromagnetic interference (EMI) suppression, such as in power supplies, audio systems, and communication devices. The BLM18PG121SN1D offers low DC resistance, ensuring minimal signal loss, and is optimized for high-frequency operation. Its small form factor makes it suitable for space-constrained designs while providing reliable performance across a wide range of applications.

BLM18PG121SN1D Pinout

Pinout Usage and Notes

The BLM18PG121SN1D is an inductor used primarily for noise filtering applications. Its pins are straightforward: the input pin receives the signal, the output pin sends the filtered signal, and the ground pin ensures proper circuit completion. For optimal performance, make sure to properly ground the component and ensure that the input and output pins are connected to the correct parts of your circuit. Proper placement and orientation of the inductor are crucial for effective noise suppression.

BLM18PG121SN1D Equivalent Models

Equivalent Models Usage and Notes

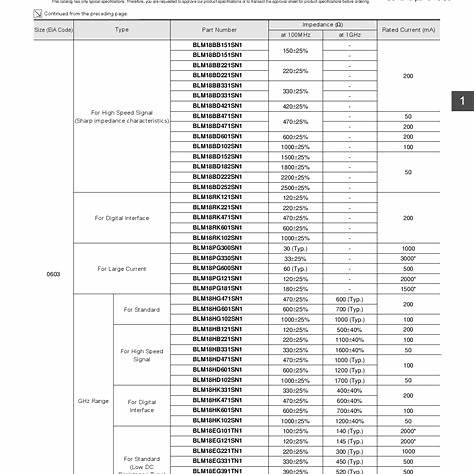

If you’re looking for an alternative to the BLM18PG121SN1D, the BLM18AG121SN1D and BLM18KG121SN1D are solid replacements. Both offer similar inductance values and are well-suited for EMI suppression and noise filtering. The BLM18KG121SN1D provides a higher rated current, which could be useful in circuits with higher current requirements. The BLM18PG121SN1D-2 offers slightly better DC resistance, which can be an advantage in low-loss applications. When choosing a replacement, ensure that the rated current and resistance match your circuit’s requirements for optimal performance.

Choosing the Right Inductor for Your Circuit

When selecting an inductor like the BLM18PG121SN1D, it’s important to match its key specs with your circuit’s needs. This inductor offers great performance for EMI suppression, but if your design requires higher current or lower resistance, alternatives like the BLM18KG121SN1D could be a better fit. With a higher current rating, it’s ideal for circuits that handle more power. Be sure to consider the inductance value, DC resistance, and current rating to ensure your replacement fits well into your design, offering reliable noise filtering and minimal loss.

BLM18PG121SN1D Circuit Diagram and Analysis

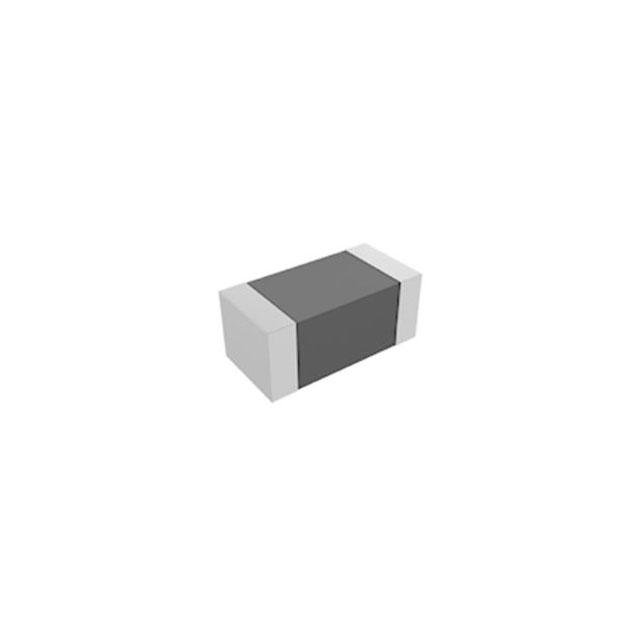

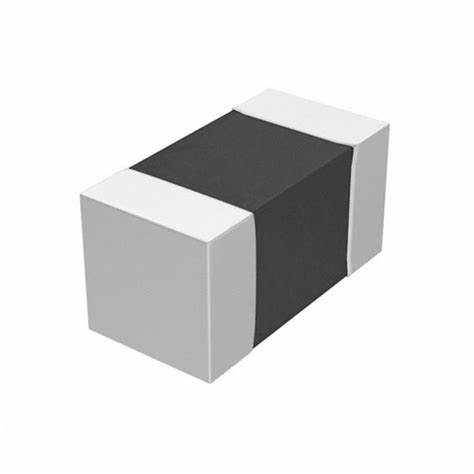

The BLM18PG121SN1D is a surface-mount ferrite bead designed to suppress high-frequency noise in electronic circuits. While specific application circuits are not provided in the datasheet, its typical usage involves placing the ferrite bead in series with the power line or signal line to filter out unwanted high-frequency noise. This component is particularly effective in power supply lines, audio circuits, and communication interfaces where EMI suppression is crucial.

Key Specifications:

• Impedance: 120Ω at 100 MHz

• Rated Current: 2A

• DC Resistance: 50mΩ (maximum)

• Operating Temperature Range: -55°C to +125°C

• Package Size: 0603 (1.6mm x 0.8mm)

Typical Application:

In a typical application, the BLM18PG121SN1D ferrite bead is placed in series with the power or signal line to attenuate high-frequency noise. Its compact size makes it suitable for space-constrained designs, and its low DC resistance ensures minimal impact on the signal integrity. When designing circuits, ensure that the ferrite bead’s impedance and current rating align with the application’s requirements to achieve optimal noise suppression.

Usage Notes:

• Placement: Position the ferrite bead as close as possible to the source of the noise to maximize its effectiveness.

• Current Rating: Ensure that the maximum rated current of the ferrite bead is not exceeded to prevent overheating and potential damage.

• Impedance Matching: Select a ferrite bead with appropriate impedance characteristics for the specific frequency range of the noise to be suppressed.

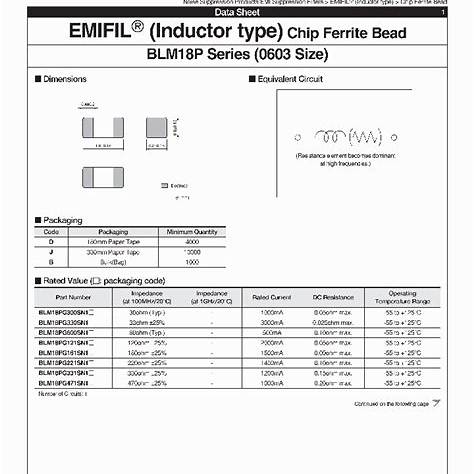

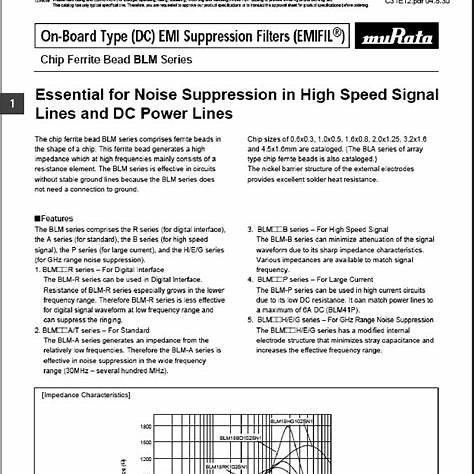

For detailed information and specifications, refer to the Murata datasheet.
