INA260AIPWR datasheet & specs

Key Features of the INA260AIPW

The INA260AIPW is a high-precision, digital current and voltage monitor designed to provide accurate power measurement in your circuits. It features an integrated shunt resistor, allowing it to measure both the current flowing through a system and the voltage across it, with minimal external components required. The device supports I2C communication for easy integration with microcontrollers, making it ideal for battery-powered systems, power supplies, and other applications requiring real-time power monitoring. With a wide measurement range and low power consumption, the INA260AIPW is perfect for applications in energy-efficient designs, helping you track power usage with ease and precision.

INA260AIPW Pinout

Pinout Usage and Notes

The INA260AIPW is designed to measure current, voltage, and power in electronic circuits. The V+ and GND pins supply power to the device, while the V- pin is used for current measurement. The SDA and SCL pins are for I2C communication, allowing the device to transmit data to a microcontroller. The ALERT pin can be used to signal when specific conditions are met, like overcurrent or overvoltage events. When using the INA260AIPW, be sure to correctly connect the shunt resistor between the V- pin and ground for accurate current measurements.

INA260AIPW Equivalent Models

Equivalent Models Usage and Notes

The INA260AIPW has several equivalent models like the INA219, LTC2943, and MAX34417 that also measure current and voltage through I2C communication. The INA219, for example, offers a slightly lower accuracy at ±1% compared to the INA260AIPW’s ±0.5%, making it a good alternative for less precision-critical applications. The LTC2943 and MAX34417 offer similar functionality with slightly larger or different package types. When choosing an equivalent, make sure to check the required accuracy, communication interface, and form factor to ensure compatibility with your design.

Choosing the Right Power and Current Monitor

When selecting a power and current monitor like the INA260AIPW, it’s crucial to consider accuracy, communication interface, and voltage range. If you need high precision, the INA260AIPW is a great choice with its ±0.5% accuracy. However, alternatives like the INA219, LTC2943, and MAX34417 can offer similar features at a lower cost or with slightly different packaging. Always make sure to match the communication interface (I2C in most cases) and check if the accuracy and range meet your design’s requirements. This way, you can select the most suitable model for your application.

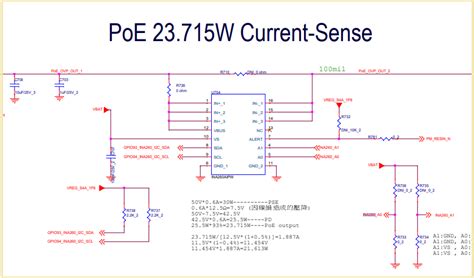

INA260AIPW Circuit Diagram and Analysis

The INA260AIPW is a precision digital current and power monitor from Texas Instruments, designed to measure current, voltage, and power in electronic circuits. While specific circuit diagrams featuring this component are not readily available, understanding its typical application and power requirements is essential for effective integration.

Key Components and Connections

• Power Supply (VCC and GND): The INA260AIPW operates with a single supply voltage ranging from 2.7V to 5.5V. Ensure a stable power source within this range to guarantee accurate measurements.

• Communication (SDA and SCL): Utilize the I2C interface for communication with a microcontroller. Connect the SDA (data) and SCL (clock) lines to the corresponding pins on your microcontroller.

• Measurement Inputs (IN+ and IN-): These pins are used to sense the voltage across a shunt resistor, allowing the INA260AIPW to calculate the current flowing through the circuit. Ensure proper placement of the shunt resistor to achieve accurate current measurements.

• Alert Pin (ALERT): This pin can be configured to signal when certain thresholds are exceeded, such as overcurrent or overvoltage conditions. Connect this pin to an interrupt-capable pin on your microcontroller for real-time monitoring.

Usage Notes

• Shunt Resistor Selection: The INA260AIPW features an integrated 2mΩ shunt resistor, providing high-accuracy measurements. Ensure that the current flowing through the device does not exceed the maximum ratings to prevent damage.

• PCB Layout Considerations: To minimize noise and ensure accurate measurements, keep the traces between the INA260AIPW and the shunt resistor as short and wide as possible. Implement proper grounding techniques to reduce electromagnetic interference.

• Thermal Management: The device can handle continuous currents up to 15A under optimal conditions. Monitor the temperature to prevent overheating, especially in high-power applications.

For more detailed information, refer to the INA260AIPW datasheet.
