IRF530 Circuit

IRF530 is an N-channel high power mos field effect tube. He is composed of gate, source and drain, he is particularly suitable for high-voltage high-current operating environment, the next introduces an example.

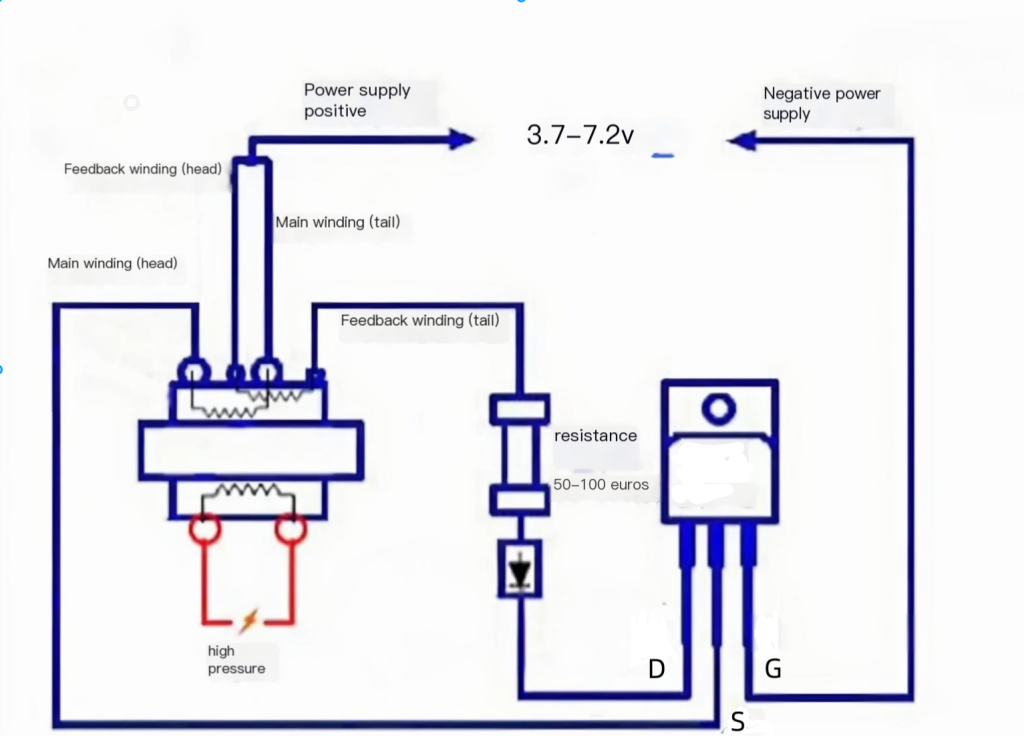

This is an electronic cigarette lighter, The basic principle of the circuit is that when the power supply is turned on, the feedback winding will produce to the induced electromotive force, and then the amplification of the transistor, you can achieve voltage amplification in the resistorthe IRF530 and other parts make the bipolar coils discharge from the tip through the starting voltage, and by discharging more high voltage electricity to break through the air, a large amount of positive and negative plasma is formed, resulting in an arc discharge generating an excitation oscillation circuit, which leads to a high voltage breakdown and fire.
The IRF530 offers designers a powerful combination of fast conversion, ruggedness, low on-state impedance and high efficiency. This makes the IRF530 universally recognised in the industry. Moreover, because IRF530 on-resistance is not greater than 0.1 ohm, often electronic engineers IRF530 as a driver chip. DIY some motor drive circuit. He also has the role of protection circuit load switching.
