The IRFP150N is a high power N-channel MOSFET transistor often used by electronic power engineers; Widely used in motor drive, high frequency switching power supply, inverter or protection circuit; In this article, we will introduce the important basic parameters, pin functions, and alternative models of the IRFP150N in detail to help readers better understand and use the device.
Important basic parameters of IRFP150N:
Type: N channel MOSFET;
The maximum voltage is (VDS) : 100V;
The maximum current flowing sustainably is (ID):42A (decreases with rising temperature, minimum 30A);
The on-resistance is (RDS(on)) : 0.036 OHM;
The on-voltage is (VGS(th)) : 2~4V;
Package: TO-247AC-3;

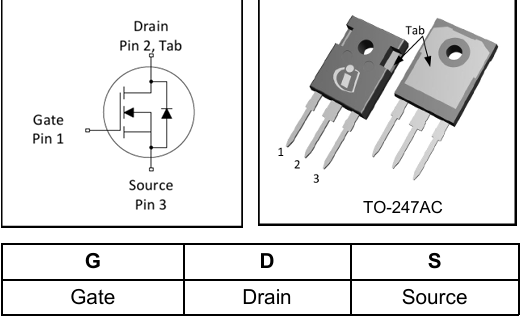

Pin menu:

IRFP150N Alternative Product Model list:

Picture	Name	Type	Vdss	Vgs (th)	Id	Pd	Package

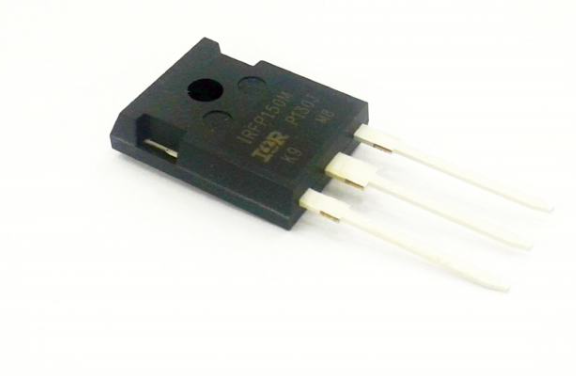

	IRFP150MPBF	N-MOSFET	100V	2V	42A	160W	TO-247AC-3

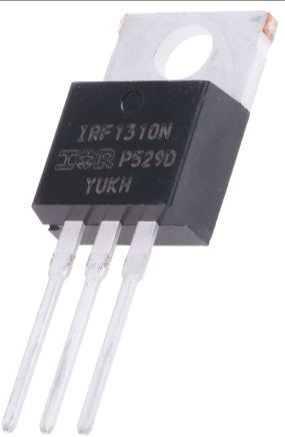

	IRF131NPBF	N-MOSFET	100V	2V	42A	160W	TO-220AB-3

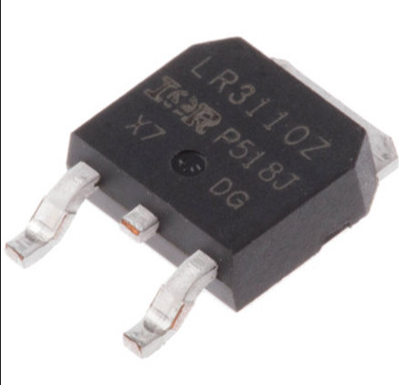

	IRLU310ZPBF	N-MOSFET	100V	2.5V	42A	140W	TO-251(IPAK)

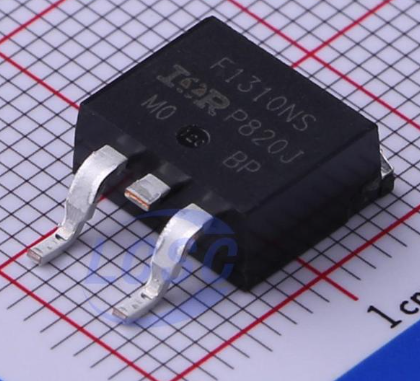

	IRF1310NSTRLPBF	N-MOSFET	100V	4V	42A	160W	D2PAK
	IRFR3710ZTRPBF	N-MOSFET	100V	4V	42A	140W	TO-252-2(DPAK)

Note:

When choosing a replacement model should pay attention to ensure that the maximum voltage and current values and power are consistent with the previous MOSFET tube (greater than or equal to the previous parameters); if the product has been mass-produced want to go to choose a replacement model, it must require the same package can be.
In high-power applications, pay great attention to heat dissipation, generally leave enough space for heat dissipation, and add heat sinks or thermal grease.
