KBPC5010 | Bridge Rectifier | Datasheet | Pinout
- Voltage-PeakReverse(Max): 1 kV
- Current-AverageRectified(Io): 50 A
- Voltage-Forward(Vf)(Max)@If: 1.2 V @ 25 A
- Package: 4-Square, KBPC
FREE delivery for orders over HK$250.00
Quick response, quick quotaton
Flash shipment,no worries after sales
Original channel,guarantee of the authentic products
R50A-B200F11B | KBPC5010 50A 1000V Bridge Rectifier diode ac to dc full wave

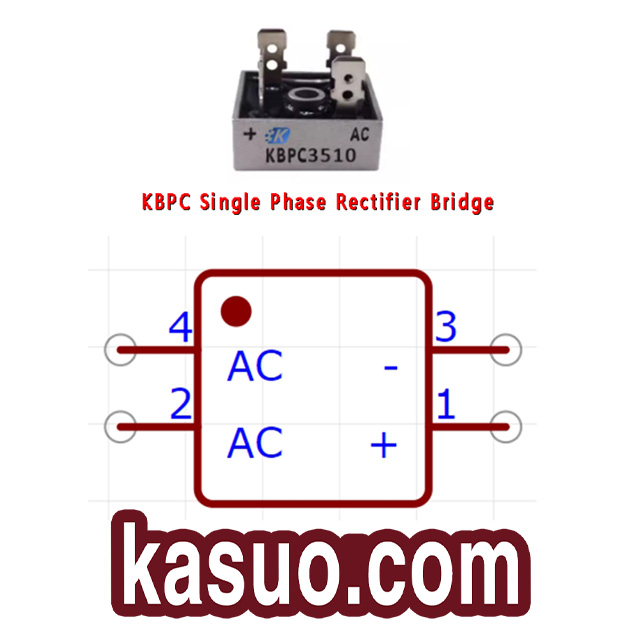

KBPC5010 Pinout
1: Overview of the KBPC5010:
KBPC5010 is a high-performance single-phase bridge rectifier module designed for high current and high voltage applications. Its key parameters include a maximum forward average rectified current of 50A and a reverse repetitive peak voltage of 1000V, making it suitable for industrial power supplies, welders, inverters, and similar equipment. It features the KBPC-4 package, which includes four silicon rectifier diodes arranged in a full bridge configuration to convert AC input to DC output.
2: KBPC5010 Important pin function definition:
| Pin Number | Pin Name | Description |
|---|---|---|
| Pin1 | + | Positive DC output (connected to the cathode of two diodes in the bridge) |
| Pin2 | AC1 | AC input terminal 1 (connected to the anode of one diode and cathode of another) |
| Pin3 | – | Negative DC output (connected to the anode of two diodes in the bridge) |
| Pin4 | AC2 | AC input terminal 2 (symmetrical to AC1, completing the bridge configuration) |
