MMBT2222A | datasheet | transistor pinout | equivalent STMicroelectronics

The MMBT2222A is a popular PNP transistor with versatile applications, offering reliable performance for various circuits. It features a comprehensive Reference manual, pinout, and a spice model for simulation. Available from trusted manufacturers like Fairchild, Diodes, NXP, and On Semiconductor, it is commonly used in designs requiring efficient switching and amplification. Explore the MMBT2222A for its equivalents, datasheet, and footprint details to enhance your project’s efficiency.

Brands: STMicroelectronics

Download: MMBT2222A Datasheet PDF

Price: inquiry

In Stock: 8,994

Transistor Type: NPN

Current-Collector(Ic)(Max): 600 mA

Voltage-Collector Emitter Breakdown (Max): 40 V

Package: TO-236-3, SC-59, SOT-23-3

FREE delivery for orders over HK$250.00

Quick response, quick quotaton

Flash shipment,no worries after sales

Original channel,guarantee of the authentic products

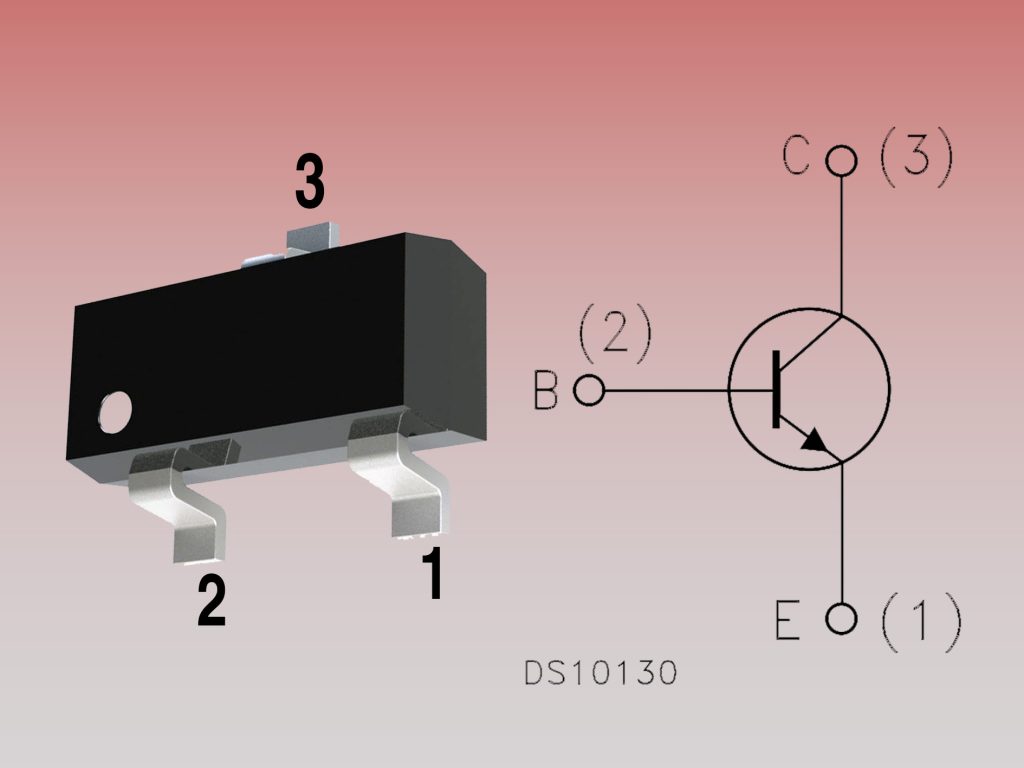

MMBT2222A Pinout

mmbt2222a pinout

MMBT2222A Pinout Diagram

The MMBT2222A is a popular NPN transistor used in general-purpose amplification and switching applications. It features three pins: the emitter, base, and collector. Understanding the function of each pin is essential for proper integration of the transistor into your electronic circuits. The table below provides the detailed pinout configuration and descriptions of each pin.

Pin Number	Pin Name	Description
1	Emitter	The emitter pin is the source of current in an NPN transistor. It is connected to the lower voltage in the circuit.
2	Base	The base pin controls the current flowing between the collector and emitter. A small current into the base will allow current to flow from the collector to the emitter.
3	Collector	The collector pin is where current flows out of the transistor. It is connected to the higher voltage in the circuit.

The MMBT2222A is widely used due to its reliability and versatility in various electronic circuits. By understanding the pinout and its respective functions, you can effectively use this transistor for applications such as signal amplification and switching tasks. Ensure the correct connection of the pins as per the described functionality for optimal performance in your projects.
