STPS20H100CT | datasheet | price | pdf STMicroelectronics

Explore the STPS20H100CT with its Reference manual for detailed information, including its diode, transistor, and pinout. Get the pdf version of the datasheet and discover equivalents and circuits for better understanding.

Brands: STMicroelectronics

Download: STPS20H100CT Datasheet PDF

Price: inquiry

In Stock: 6,110

Voltage-DCReverse(Vr)(Max): 100 V

Current-AverageRectified(Io)(perDiode): 10A

Voltage-Forward(Vf)(Max)@If: 770 mV @ 10 A

Package: TO-220-3

FREE delivery for orders over HK$250.00

Quick response, quick quotaton

Flash shipment,no worries after sales

Original channel,guarantee of the authentic products

STPS20H100CT Pinout

stps20h100ct pinout

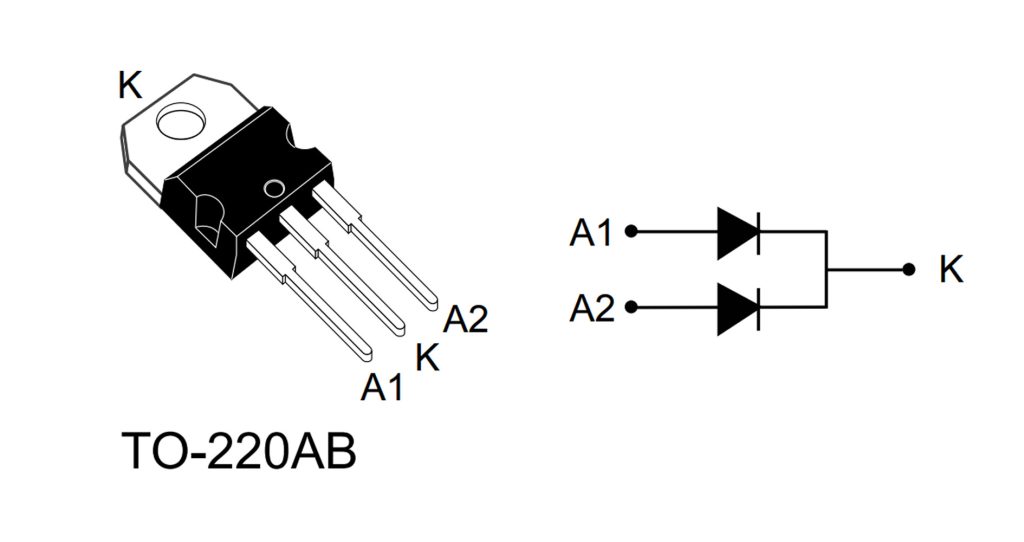

STPS20H100CT Pinout Diagram

The STPS20H100CT is a high-performance power diode in a TO-220AB package, commonly used in power conversion and rectification applications. Below is the pinout configuration detailing the connections for the anodes and cathode.

Pin	Description	Detail
A1	Anode 1	The first anode connection for the diode, connects to the positive side of the circuit.
A2	Anode 2	The second anode connection for the diode, connects to the positive side of the circuit.
K	Cathode	The cathode connection for both diodes, connects to the negative side of the circuit.

This pinout table provides the necessary details for connecting the STPS20H100CT in your circuit. Ensure correct pin alignment to ensure efficient power rectification and performance.
