TIP120 Transistor | Pinout | Arduino Circuit | Darlington Transistor NTE Electronics, Inc

The TIP120 is a popular NPN Darlington transistor, ideal for motor control, LED circuits with Arduino and Raspberry Pi. This power Darlington transistor features a low voltage drop and can handle high current, making it suitable for amplifier circuits and H-bridge configurations. Detailed Reference manual and schematic are available for easy integration. Its pinout, base resistor calculator, and SPICE model assist in precise circuit design, while TIP120 equivalents and alternatives offer flexibility for various applications.

Brands: NTE Electronics, Inc

Download: TIP120 Datasheet PDF

Price: inquiry

In Stock: 226

Transistor Type: NPN - Darlington

Current-Collector(Ic)(Max): -

Voltage-Collector Emitter Breakdown (Max): 60 V

Package: TO-220-3

FREE delivery for orders over HK$250.00

Quick response, quick quotaton

Flash shipment,no worries after sales

Original channel,guarantee of the authentic products

[SGeC] TIP120 NPN Power Transistor 60V-5A-65W

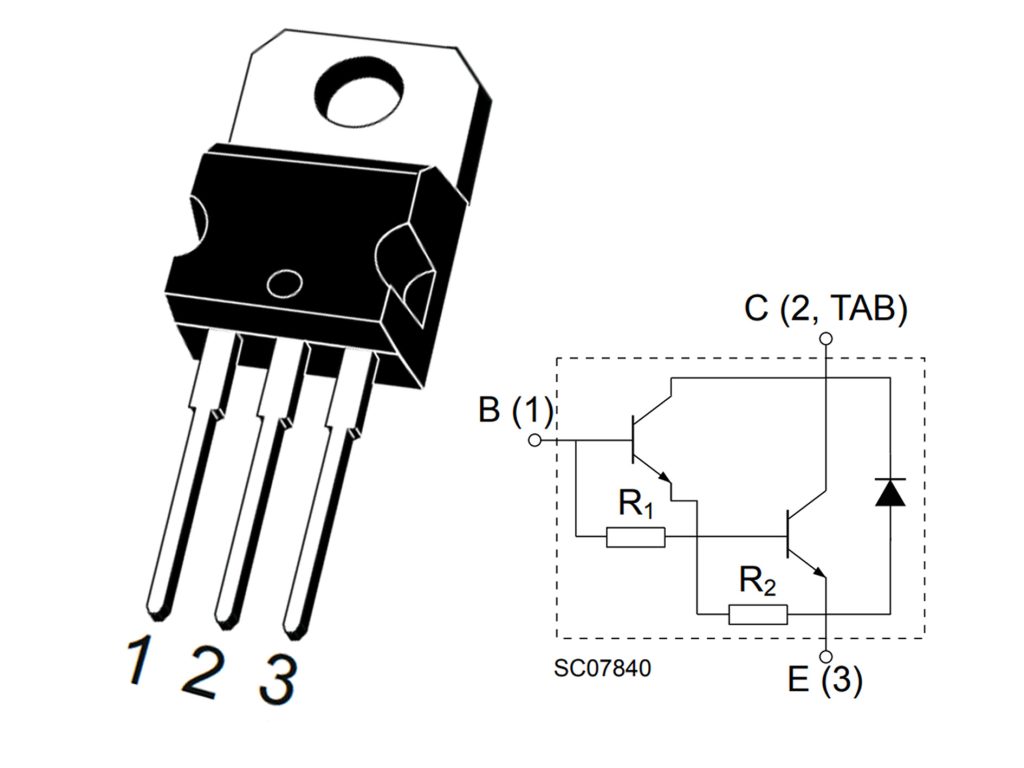

TIP120 Pinout

tip120 pinout

TIP120 Pinout

The TIP120 is a Darlington NPN power transistor commonly used in electronic projects for switching and amplification purposes. It is often utilized in applications like motor control, relays, and other high-current switching circuits. Below is a summary of the TIP120’s pinout and its functionalities:

Pin Number	Symbol	Description
1	B (Base)	Controls the transistor’s conduction
2	C (Collector)	Connected to the load (TAB is also connected to the collector)
3	E (Emitter)	Usually connected to ground

By understanding these pin configurations, you can effectively use the TIP120 in your projects to control high-power devices while ensuring the safety and efficiency of your circuit design.
