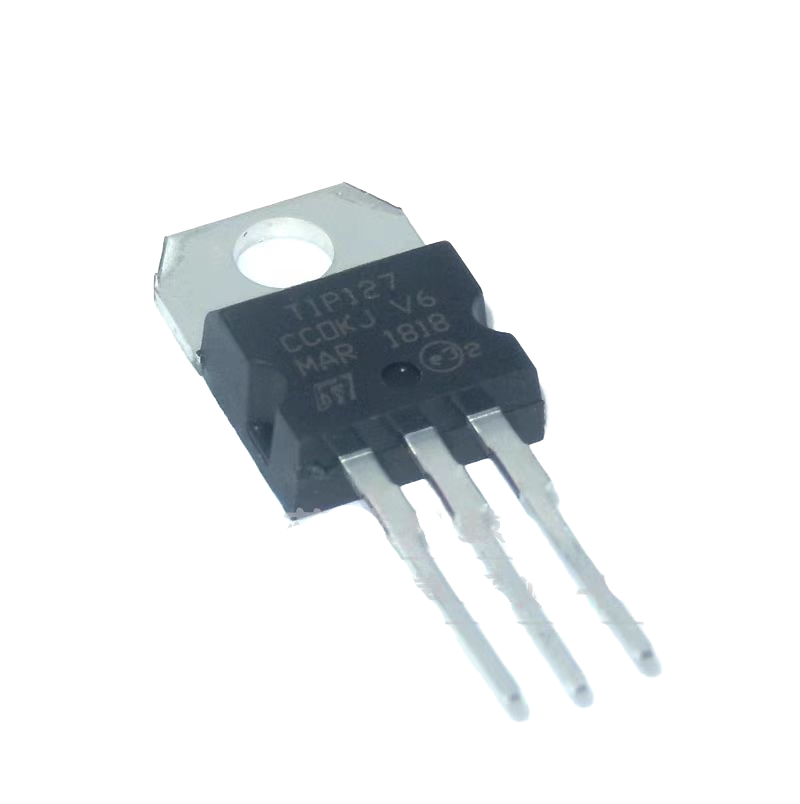

TIP127 | transistor equivalent | circuit diagram | datasheet onsemi

The TIP127 is an epitaxial Darlington PNP transistor ideal for various applications, including audio amplifiers and H-bridge circuits. It is often used alongside the TIP122 in circuits such as the TIP122 TIP127 amplifier circuit and TIP122 TIP127 audio amplifier circuit. The TIP127 provides excellent performance for switching and polarity reversal applications. For comprehensive details, refer to the Reference manual for specifications and application notes.

Brands: onsemi

Download: TIP127 Datasheet PDF

Price: inquiry

In Stock: 9,816

Transistor Type: PNP - Darlington

Current-Collector(Ic)(Max): 5 A

Voltage-Collector Emitter Breakdown (Max): 100 V

Package: TO-220-3

send your inquiry

FREE delivery for orders over HK$250.00

Quick response, quick quotaton

Flash shipment,no worries after sales

Original channel,guarantee of the authentic products

TIP 127 Power transistor

TIP127 Equivalent Components

This is a TIP127 equivalent components table, they are PNP-type Darlington transistors, the main role is to amplify high power, switching power supply, motor drive, etc.

Picture	Model	Makers	Maximum Power	Maximum Current	Maximum Voltage	Package Type
	TIP127	STMicroelectronics	65W	5A	100V	TO-220
	BD650	STMicroelectronics	36W	4A	100V	TO-126

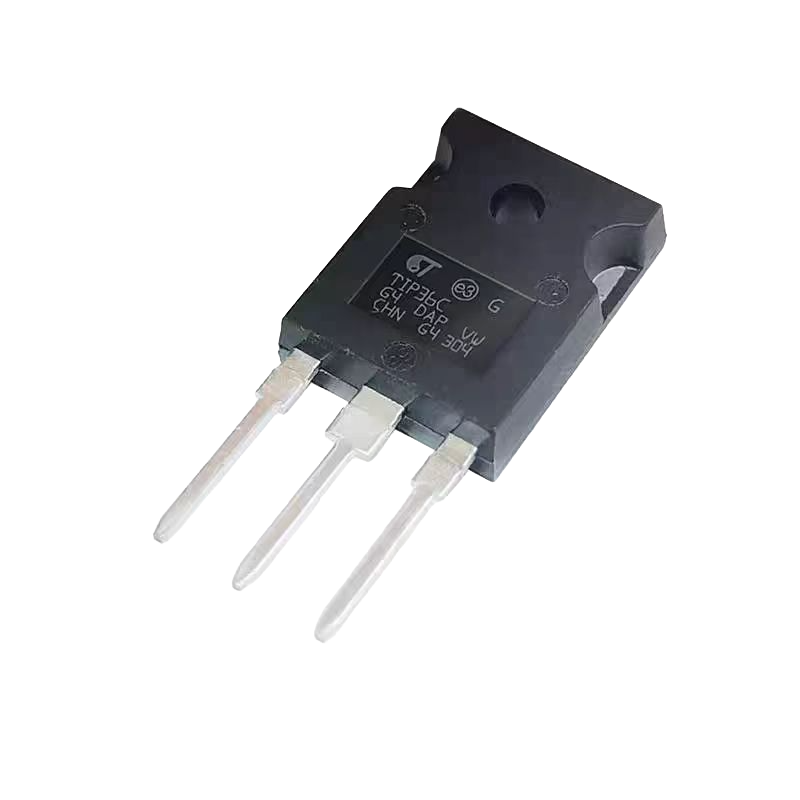

	TIP36C	STMicroelectronics	125W	25A	100V	TO-3P
	BDX54C	STMicroelectronics	65W	8A	100V	TO-220
	MJD127	ON Semiconductor	65W	5A	100V	TO-220
	BDW83C	Fairchild	100W	12A	100V	TO-220

Note:
1. Replacement should check whether the parameters match.
2. Whether the package is the same, whether to adjust the pin position.
3. When choosing other replacement components, pay attention to whether the polarity is the same.
