TIP32C Transistor Equivalent

The TIP32C is an PNP type power transistor, which has a low voltage drop between collector and emitter to reduce energy loss; the maximum withstand voltage value is 100V, and the maximum current allowed to flow is 3A; these good performances make the TIP32C commonly used in medium power and medium current switching applications. It is made of silicon material with high current and power. The TO-220 package makes the TIP32C easy to mount and dissipate heat.

TIP32C Driver Circuit

The simplest application of the TIP32C power transistor is as an amplifier, which can amplify a weak electrical signal by a certain factor, but of course this conversion still follows the conservation of energy, it just converts the energy of the power supply into the energy of the signal. An important parameter in this calculation is the current amplification factor β. When a small current is applied to the base of the TIP32C, a current β times the inflow current, the collector current, is obtained at the collector.
TIP32C drive two main ways, through the voltage or current drive mode (generally more voltage-driven, as shown in Figure TIP32C Driver Circuit), the main advantage of voltage-driven is flexibility and universality.

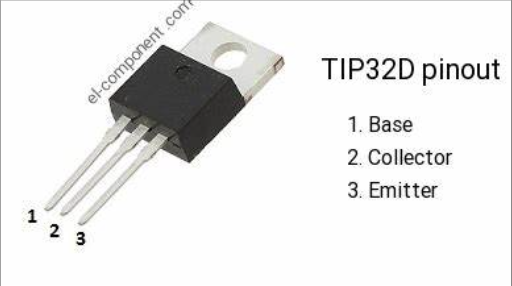

TIP32D Picture

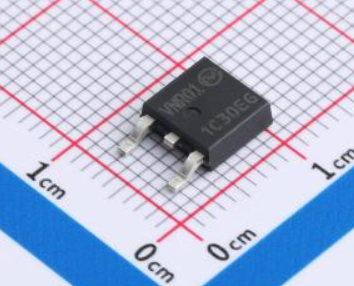

NSS1C300ET4G Picture
