[SGeC] TIP35C NPN Power Transistor 140V-25A-90W

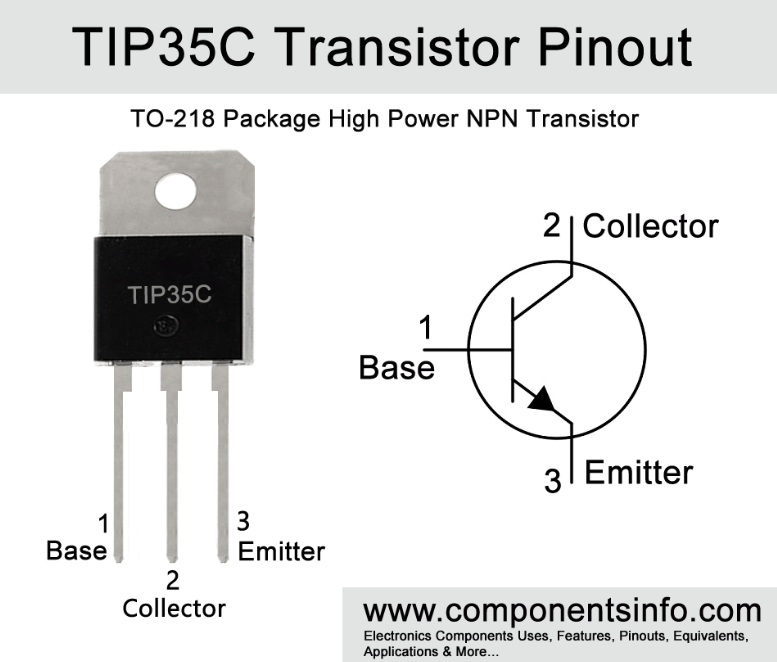

TIP35C Pinout

tip35c Picture

The TIP35C is an NPN type transistor manufactured by STMicroelectronics in the U.S.A. The main advantages include: low noise, high current amplification and high frequency response.

Main application circuits:

Power amplifiers: e.g. audio amplifiers, RF amplifiers, current-voltage amplifiers, etc.
Switching circuits: used to control the operating state of devices such as motors, relays or LED lights.
Ldo or dcdc circuits: Used in linear regulators or DCDC circuits (where they act as a fast switch to lower or raise the voltage).

Circuit design considerations:

Heat Dissipation: The TIP35C consumes a relatively large amount of power, so pay attention to the heat dissipation of the device in high power applications (temperatures exceeding the junction temperature can burn out the device).
Drive Current: Make sure that the base drive current is sufficient to ensure full conduction of the transistor (incomplete conduction may result in significant efficiency loss).
Voltage and current limits: Avoid exceeding the maximum collector-emitter voltage (VCEO) and maximum collector current (IC).
