How a 2-Way Switch Works: Wiring Diagrams, Installation, and Safety Tips

Введение

Once you start working with electrical circuits, you are likely to encounter switches. One such switch is the 2-way switch, a type of light switch that allows the user to control a light or other electrical appliances from two different locations. For example, you can have one in the hallway or staircase so that you can turn on or off the light from either end.

How Does a 2-Way Switch Work?

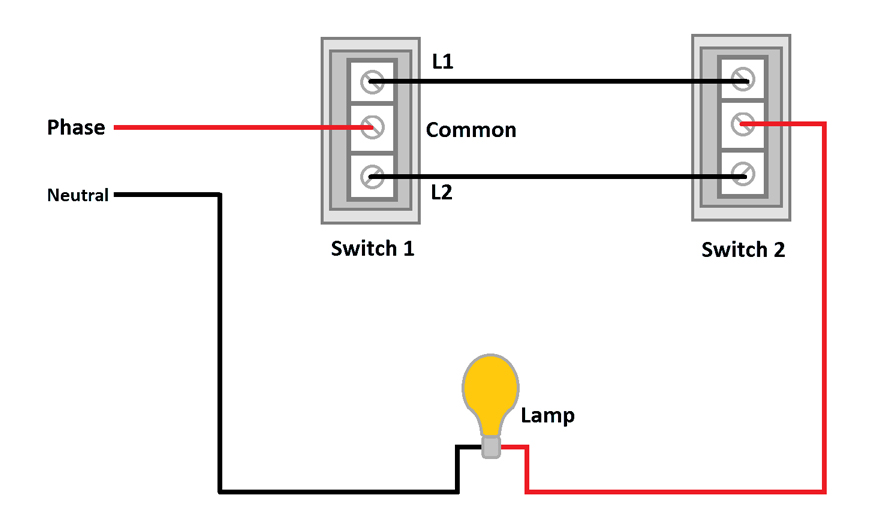

As explained above, a 2-way switch allows for controlling a light fixture from two locations. This is possible because of how the 2-way switch wiring connection is done. You will have two switches each with three terminals, a common terminal and two terminals referred to as L1 and L2 (traveller terminals).

The common terminal is used for connecting to the light fixture or power source. The traveler terminals are the other two terminals that connect to each other in the switches using two wires.

So, when both switches are in the same position, the circuit is complete and the light turns on. However, when the switches are at different positions, the circuit is broken and the light turns off.

Flipping either switch changes the state of the light regardless of the position of the other switch.

Applications of a 2-Way Switch

You are likely to come across a 2 way switch in many places around the house or commercial spaces. For example, the staircases. In this case, you would want one switch at the bottom and the other at the top of the staircase so that it is easy to control the light.

Hallways and large rooms with multiple entrances also use 2 way switches to make it easy to use the lights. You are looking at the convenience of turning on and off the lights in the room.

The same thing applies to bedrooms and outdoor lighting where you feel it is necessary to have the 2 way switches.

2-Way Switch Benefits

• You can enjoy convenience and flexibility whenever you use the switch in applications with long hallways, large rooms, staircases, and rooms with multiple entrances.
• There are potential energy-saving benefits. This is because people can easily turn off the lights from different places, which minimizes the chances of leaving them on when they are not needed.
• You will have enhanced safety features, especially for applications such as staircases. The last thing you need is to go down a staircase at night with no light. You can easily turn on the light on either side of the stairs.

How to Install a 2-Way Switch

Now that you know what a 2-way switch is, the next question is mind is how do I wire a 2-way switch? Well, the process is not hard as we shall discuss below.

1. Turn off the power to the circuit before starting any electrical work. Use a voltage tester to check if all the wires have no power.
2. It is time to wire the switches. First, identify the wires so that you know which goes where. The breaker will have a neutral wire, a hot wire, and a ground wire. Two traveler wires will connect the two switches.
3. Start by connecting the hot wire to the common terminal of one of the switches. It is likely to be marked with the letter C. Next, connect two traveler wires to the other two terminals labeled L1 and L2 on both switches.
4. Next is to connect the neutral wire directly to the light fixture. Connect the other end of the hot wire that was already connected to the common to the light fixture. Do not forget to connect the ground wires.
5. Connect the wire from the second switch’s common terminal to the light fixture’s hot terminal. Then, connect the neutral wire from the power source to the light fixture’s neutral terminal.

Common Mistakes to Avoid When Wiring a 2-Way Switch

2-way light switches need to be wired correctly, or you might end up with a few problems. Here are some of the common mistakes people make, which you should avoid.

1. Incorrect wire connections

Confusing between common and traveler wires during the wiring process means the switch will not work and might create dangerous situations by having the power go through the wrong route.

Some people also cross the traveller wire and wire it to the common terminal and vice versa, causing the switch not to work as intended.

The same applies to incorrect terminal connections. For example, you may get someone reversing the hot and neutral wires at the switch or light fixtures. You will end up with reverse polarity even if the light seems to work.

2. Loose or Faulty Wiring

One of the most common faults in wiring is called double-stacking wires. In this case, you connect two wires under the same screw terminal. It is against code and may lead to loose connections, fire hazards, and arcing.

Back wiring or pushing the wires into the holes on the back of the switch is highly discouraged. This may lead to a loose connection as well. Make sure that you use the provided screws to hold the wire in place.

When you have loose connections, it can lead to the lights flickering or electrical arcing.

3. Wrong cable type and size

It is vital to always use the correct wire size and type depending on the application. If the wire is too thin, it may lead to overheating and potentially fire outbreaks.

We also do not recommend ignoring grounding, as it is part of electrical safety; you should always make sure it is done right.

Safety Tips for Working with Electrical Switches

If you are going to wire a dimmable 2 way switch or any other type, you will need several safety tips to ensure your safety is paramount. Here is what to do.

• Always have the light turned off first to avoid the risk of electric shock
• Use insulated tools such as insulated handles to protect against electric shock
• Wear the appropriate PPE, such as gloves, safety glasses, and any other specialized PPE, to prevent injury from electrical hazards.
• Inspect the equipment and wiring regularly to check for loose connections, frayed cords, and exposed wiring.
• Do not overload the circuits. This means you should not plug in too many devices into one outlet or using multiple extension cords.

Заключение

A 2-way switch stands out as an important type of switch for applications where you need to turn on and off the light at two different places. It all comes down to the wiring. It is vital to ensure that you do it correctly. It should not take long before you are done if you are professional. In case you are still unsure about how to wire a 2 way switch, hire a professional electrician to help with the process.
