What is a 3 Pin Connector? Types, Pinouts, How It Works, and Applications

Введение

А 3 pin connector is a type of electrical connector featuring three contact points. It is commonly used for connecting to a power source or other electronic components. You may have come across it in computer fans, audio equipment, power supplies, and many others.

Structure and Components of a 3 Pin Connector

The 3 pin electrical connector consists of three pins: live, neutral, and earth. Live is for carrying the electrical current to a device, while the neutral provides a return path for the current to complete the circuit.

Earth or ground is key for connecting the metallic casing of the device to the ground. This offers a safety measure against an electrical short if a fault were to happen.

Other than the pins, the other important parts include the housing, wiring, and cable grip.

The housing consists of the outer casing and insulators. The outer casing is made of a durable material such as plastic. It protects the internal components and provides a grip for inserting and pulling the plug.

The insulators help to separate and insulate the pins from each other and the housing, ensuring proper electrical safety.

There is also the cable grip, which secures the electrical cable to the connector. This prevents the wires from easily being pulled out and possibly damaging the internal connections.

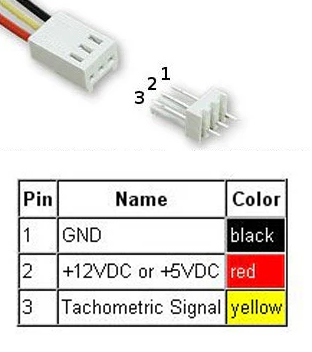

The wires in the 3 pin fan connector help you understand which wire does what. Mostly, they will be color-coded. For example, you can have brown for live, yellow or green for earth, and blue to neutral.

There is also the terminal block in the connector where the wires are attached to the pins.

Types of 3 Pin Connectors

3 pin connectors are largely categorized based on application. Right now, we have 3 pin connectors for various uses, including mains power supply, audio connectors, industrial connectors, thermocouple connectors, and others.

The mains power connections are the most common. For the Chinese market, we have options such as Type G, Type D/M, NEMA, and Type I. The connector shape is likely to vary, but the job remains the same: to provide a power supply to an electrical component.

Audio connectors, such as XLR connectors, are also common. They are used to connect microphones and related audio equipment.

For industrial connectors, PowerCON is an example. It is a locking connector with three pins used for connecting professional audio and lighting applications.

Thermocouple 3-pin connectors are specially designed for connecting thermocouple sensors. These specialized pins ensure that there are no incorrect connections.

Other pin types include fan connectors and sensor connectors.

Advantages of 3 Pin Connectors

• The 3-pin Molex connector helps to ensure there is better safety with its grounding feature. This is the third pin that connects the appliance to the earth to help divert stray or leaking electricity to the ground.
• There is also a reduced risk of shock because the wires are put in a metal casing, especially for an appliance that might be used in a damp environment.
• The various 3-pin connector types are designed to handle high current and voltage, making them good for different applications where power is needed.
• The connectors also provide a robust construction that ensures a secure and stable connection, minimizing the risk of loose connections.
• Reduced interference since the pin connection provides a reliable and interference-free connection that works well for many electronic components.

Limitations of 3 Pin Connectors

• Sometimes the 3-pin connector might overheat or even melt where the current is too high
• There might be compatibility issues depending on the shape and type of the connector

3 Pin Connector Wiring Guide

Wiring a 3 pin XLR connector или 3 pin LED light connector is all the same. You can follow the process mentioned below to do it right.

• Identify the wires. The three wires are color-coded so that you know how to connect them correctly. The brown wire is for live, the blue is for neutral, and the green/yellow is for earth.
• Carefully strip the wires so that you expose about ½ inch of copper.
• Connect the wires to the terminals. The terminals are usually marked L for live, N for neutral, and E for earth, making the wiring part easy.
• Secure the connections by ensuring all the wires are securely fastened correctly and there are no bare wires exposed.
• Plug in the 3 pin connector to ensure that it is working. If it is not, troubleshoot these new connections you have made to ensure they are working correctly.

How to Choose the Best 3 Pin Connectors

1. Look at the voltage and current requirements of your application. This ensures you get the right contact size and material that can comfortably handle the application.
2. Sometimes, you may want to consider the contact material, too. Opting for gold plating allows for high reliability. Other materials, such as tin, can be used for contacts, but they are suitable for applications with fewer cycles.
3. The operating environment is key as well. The last thing you need is to work with a connector that may not be able to handle harsh conditions. So, always ensure it has the appropriate IP rating and sealing where necessary.
4. Connector design and features are also important. Different 3-pin connectors might have different shapes and designs. Check to ensure they are compatible with what you need.

Заключение

3 pin connectors are vital in many applications that need a secure electrical joint with safety in mind as well. You may come across many types of this connector, but choosing one should depend on your compatibility needs. Check to ensure the 3 pin amp connector will easily plug into the existing female connector and vice versa. Also, take the time to check the various connector options available to ensure you only get high-quality options.
