CR2430 Battery: Complete Guide to Specs, Equivalents, and Uses

Introduction

The CR2430 battery is a small yet powerful 3-volt lithium coin cell that powers many of our everyday electronics. About the size of a coin, 24mm wide and 3mm thick, it’s compact enough to fit perfectly in devices like watches, key fobs, fitness trackers, and small gadgets.

This guide focuses on understanding the CR2430 battery —its uses, equivalents, and more.

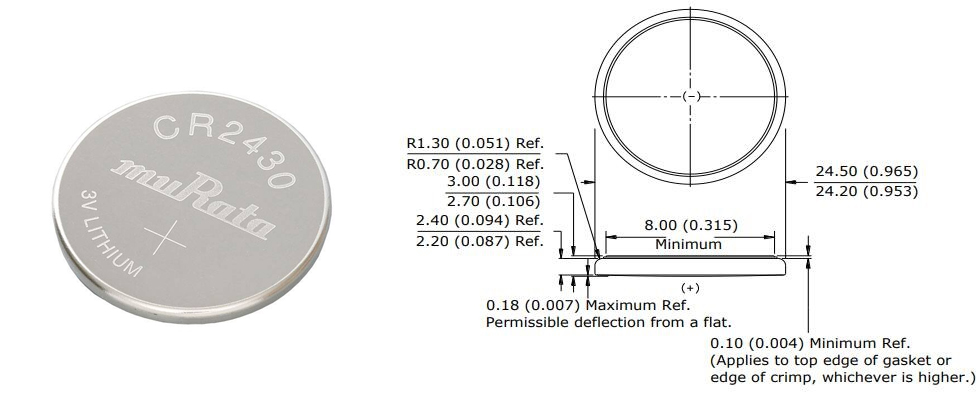

Specifications of the CR2430 Battery

We have already mentioned the diameter and height. However, there are many other technical specifications below.

Key Applications of the CR2430 Battery

The 2430 battery is useful in a wide range of applications. Below are the common applications:

• Automotive applications such as car key fobs and smart keys. It also works great for the tire pressure monitoring systems.
• Medical and health devices, including blood glucose monitors, fitness trackers, and digital thermometers.
• Smart home and IoT devices, such as wireless sensors, wireless light switches, and tracking devices.
• Consumer electronics also use this type of battery. Such devices are calculators, remote controls, motherboards, and watches.

CR2430 Battery Lifespan and Efficiency

The lifespan and efficiency of the CR2430 battery depend largely on the device’s power consumption and usage patterns. If you keep using the device more often, you can expect the battery to last less time.

The shelf life of the CR2430 battery is around 10 years. This is because the battery loses less than 1% per year. Just make sure the battery is stored in a cool, dry place.

The operational lifespan depends on the device’s power demand. For example, the low-drain devices would have batteries lasting several years. You are looking at around seven years.

As for high-drain devices such as car key fobs, the lifespan is generally shorter. The key fob battery may last 1 to 2 years.

How about the efficiency?

The CR2430 battery should be quite efficient in terms of performance. Expect it to maintain a nominal voltage of 3.0 volts during its operational life. Such a voltage must be maintained so that the electronic devices function properly. However, when the voltage drops below 2.5 volts, it is best to replace it.

The battery still comes with high energy density. This means it can store a large amount of energy despite its compact size and lightweight nature.

The CR2430 batteries are generally engineered to perform reliably across a wide temperature range. Keep in mind that extreme temperatures can affect the battery’s overall performance. Its robust design allows it to work effectively still.

The battery remains leakage-resistant due to its leak-proof construction. This is to prevent damage to sensitive electronic devices.

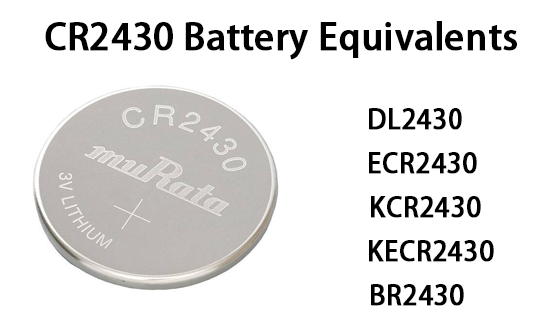

CR2430 Battery Equivalents

Sometimes you may find it hard to get the 2430 battery in your area. The alternative would be to buy the CR2430 battery equivalents. These are batteries with similar performance and dimensions, suitable as substitutes.

Examples of the CR2430 battery substitutes include:

• DL2430 – This is Duracell’s branded version of the CR2430 battery
• ECR2430 – This is the branded version of the CR2430 battery from Energizer
• KCR2430/KECR2430 – This is another equivalent battery from brands like Toshiba and Sony
• BR2430 – This one has a different battery chemistry of lithium carbon monoflouride

The CR2430 Battery vs. Other Button Cell Batteries

The CR2430 battery works quite well for its applications. However, how does it compare with the other types of batteries? Here is what to expect.

• CR2430 vs CR2450 battery

The most significant difference between the CR2430 and CR2450 batteries lies in their thickness and capacity. Both have a 24mm diameter, but the CR2430 is slimmer at 3.0mm thick, while the CR2450 is a bit bulkier at 5.0mm.

When it comes to capacity, the CR2430 offers about 320 mAh, whereas the CR2450 packs nearly double at around 620 mAh, meaning it can last longer in high-drain devices.

• CR2430 vs CR2032

The CR2430 and CR2432 batteries are quite similar, differing only slightly in size and capacity. The CR2430 measures 3.0mm thick, while the CR2432 is just a bit thicker at 3.2mm.

In terms of diameter, the CR2430 is 24mm wide, compared to 20mm for the smaller CR2032. Although their capacities are nearly the same, the difference in size means they can’t be used interchangeably in most devices.

• CR2430 vs Rechargeable Coin Cells

The CR2430 battery is non-rechargeable. This makes it single-use. You have to dispose of it once you are done with it. How does it compare to the rechargeable versions, such as ML2430 or the LiR2430?

Here is a quick table showing the difference.

Replacing a CR2430 Battery: Step-by-Step

Always make sure you have bought a high-quality CR2430 battery you will use to replace the old battery. With that in mind, follow these steps.

1. Power down the device if necessary
2. Locate the battery compartment and open it using a screwdriver or a small pry tool
3. Note how the battery is oriented. Most of the time, the positive side will be facing up and marked
4. Install the new battery into the compartment. Press it down gently to ensure it seats securely
5. Close the compartment, ensuring the cover is well secured by screwing it back on or snapping it into position.
6. Test the device to check if it is working correctly

Testing and Troubleshooting A CR2430 Battery

The best way to test the CR2430 battery is by using a digital multimeter. Here is how you can do it.

• Set the multimeter to the DC voltage mode
• Connect the probes to the battery. The positive red probe to the positive terminal and the black probe to the negative side.
• Read the voltage on the screen
• For a new battery, the voltage should read 3 to 3.2V, indicating it is full
• A depleted battery will be below 2.7V
• Any battery with a voltage of 2.5V or less is dead, which should be discarded.

Best CR2430 Battery Brands and Where to Buy

The best brands selling CR2430 include Duracell, Energizer, Panasonic, Renata, and Maxell. If you come across a lesser-known brand, make sure to do more research to understand what you would get with such a brand.

You can buy CR2430 batteries from online retailers such as Amazon, Walmart, and others. You can still buy from specialty battery websites that sell the batteries in bulk.

In-person stores are also a good alternative. We are talking of large retailers such as Walmart, Costco, and Target.

Conclusion

The CR2430 battery is a good battery type to use in multiple devices. It is designed to deliver high energy efficiency across different types of devices. You should always get the best battery from top brands to ensure the performance is the best. Keep in mind it is not rechargeable, so once it is depleted, dispose of the battery right away and replace it with a new battery.
