Magnetic Pogo Pin Connector single row

$0.6500

In stock:3,493

Buy 100 for $1.4000 each and save 7%
Buy 300 for $1.3600 each and save 9%
Buy 500 for $1.3300 each and save 11%
Buy 1000 for $1.3000 each and save 13%

Buy 100 for $0.6500 each and save 7%
Buy 300 for $0.6300 each and save 10%
Buy 500 for $0.6200 each and save 11%
Buy 1000 for $0.6000 each and save 14%

Buy 100 for $0.6100 each and save 6%
Buy 300 for $0.6000 each and save 8%
Buy 500 for $0.5900 each and save 9%
Buy 1000 for $0.5700 each and save 12%

Buy 100 for $0.6100 each and save 6%
Buy 300 for $0.6000 each and save 8%
Buy 500 for $0.5900 each and save 9%
Buy 1000 for $0.5700 each and save 12%

Number of Pins

4Pin

2Pin

5 Pin

3Pin

- +

Add to Cart

Ships in 2-3 business days, then:

Free delivery in 10-15 days by YunExpress on orders over $35.

Free delivery in 5-7 days by DHL on orders over $200.

More shipping info

Custom circuit boards available upon request. Please Contact customer service

All Info 細節

細節

The Magnetic Pogo Pin Connector in a single-row configuration is designed for precision and reliability. With a compact design featuring a pitch of 2.54mm or 2.8mm, this connector is built using high-temperature and corrosion-resistant materials, ensuring longevity and performance in various demanding environments. The spring-loaded, gold-plated pins offer excellent conductivity and mechanical durability, making it ideal for use in semiconductor devices, mobile phones, communication equipment, and automotive electronics. It supports a maximum voltage of 12V and a current of up to 3A, making it suitable for a wide range of electronic applications.

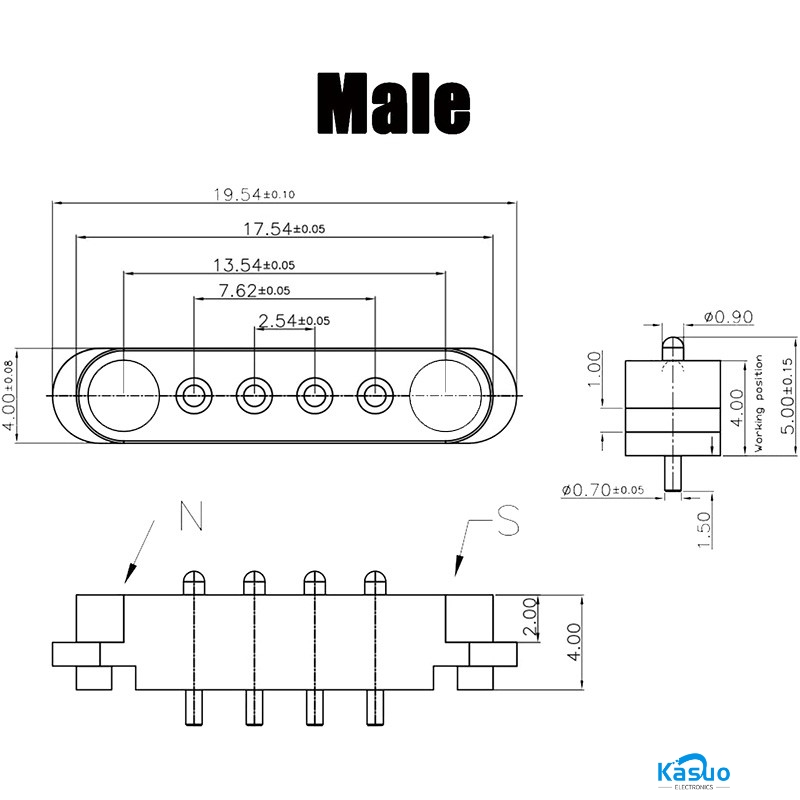

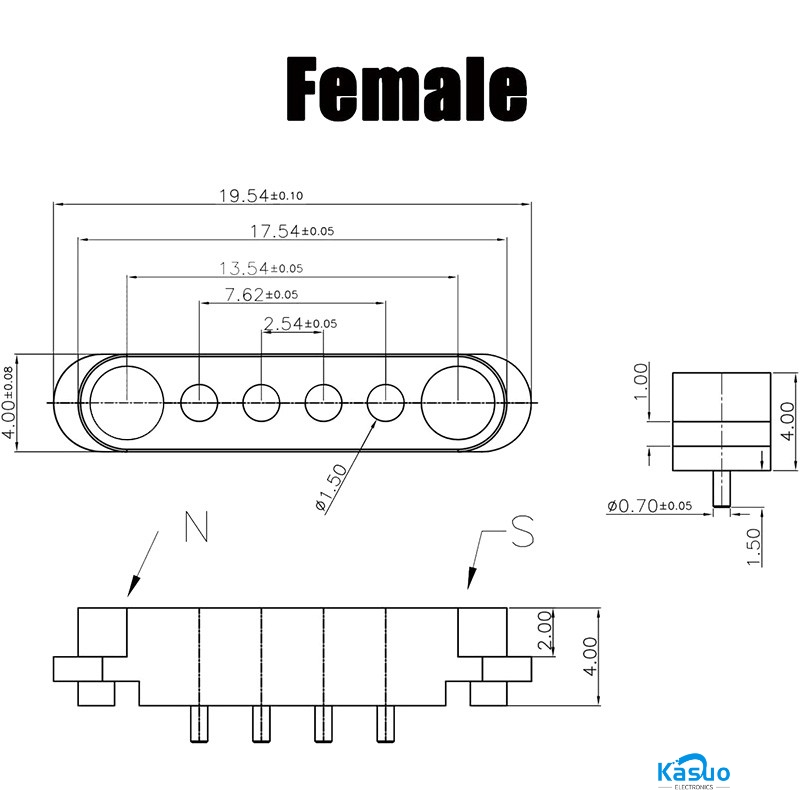

Specifications of Magnetic Pogo Pin Connector – Single Row

Pitch: 2.54mm / 2.8mm
Materials: High-temperature and corrosion-resistant materials
工作電壓: 12V max
Operating Current: 3A max
Contact Resistance: 50mΩ max
Plating: Gold-plated contacts for improved durability
應用: Semiconductor devices, mobile phones, communication equipment, automobiles, precision electronics
