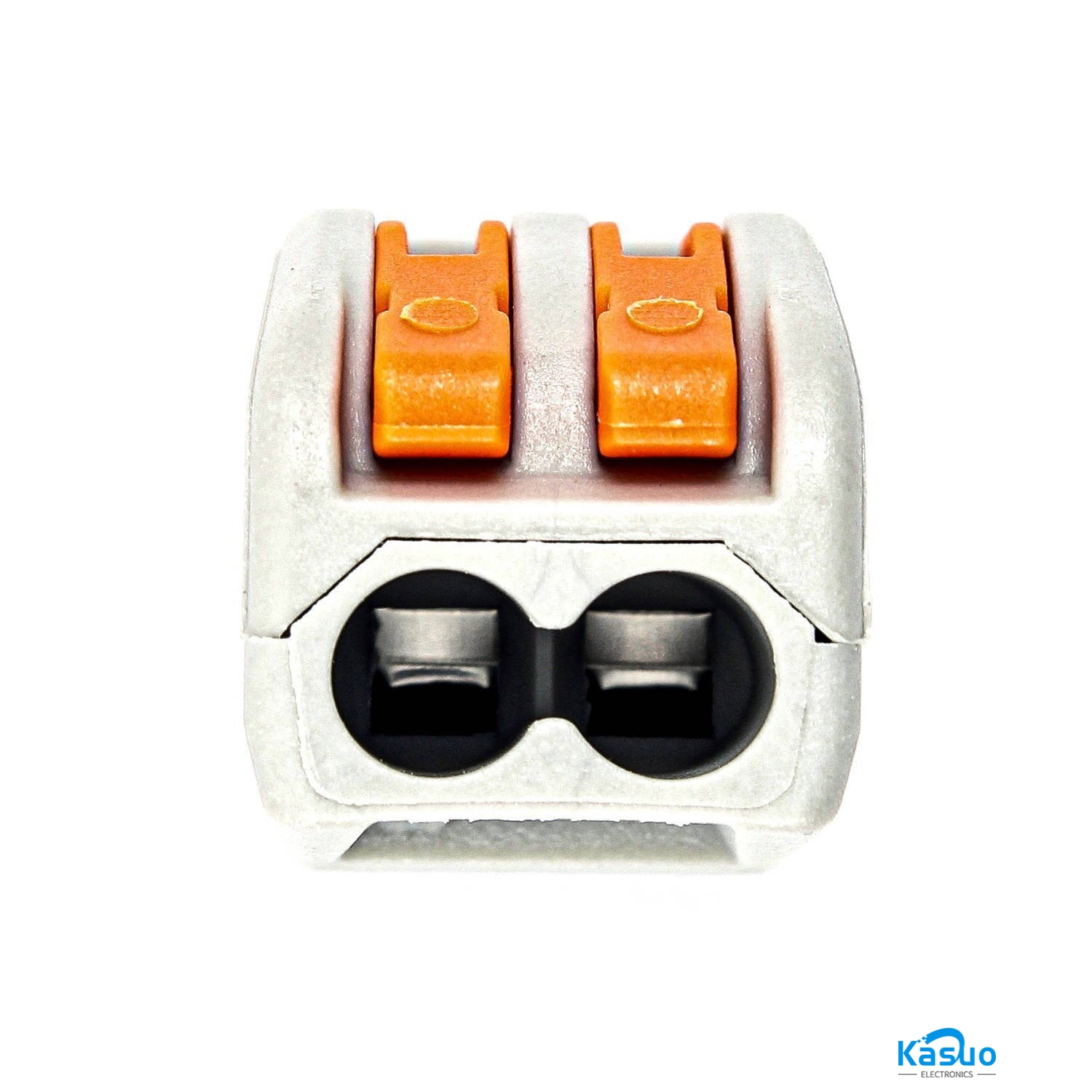

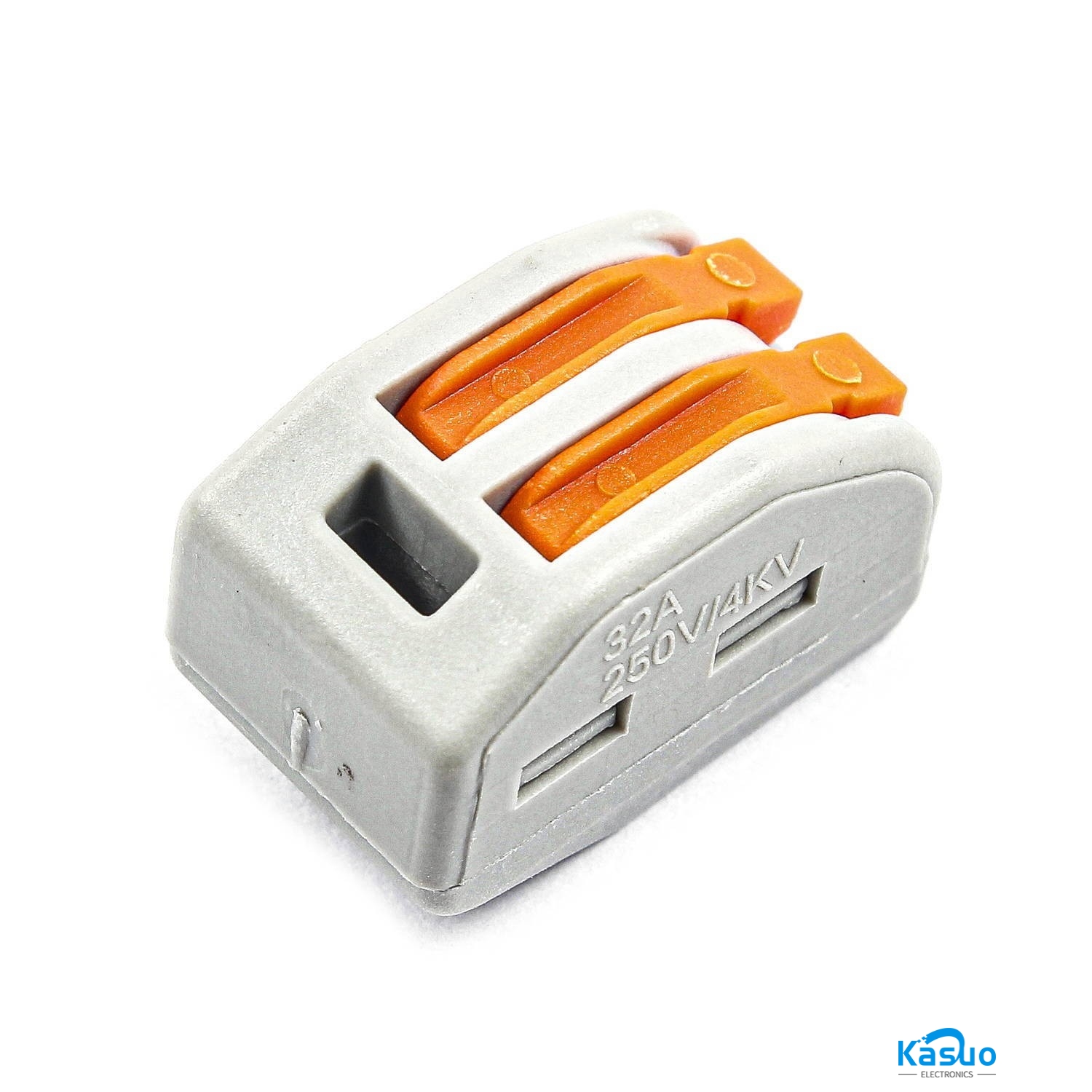

PCT-212 Push Wire Connector - 2-Pin Conductor

PCT Spring Lever Connector package contains of a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 2.5mm2 area or soft wire with 0.08mm to 4.0mm2 area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A, result in maximum 7KW Power. This connector consists of a PA shell, copper thin surface cathode diversion, and a spring lever from nickel-chromium alloy steel. Its insulation shell can tolerate a high voltage up to 4kV. Because of the tranparent shell, diagnosing and troubleshooting of wire connection is visual and so easy. This connector is easy to use and achieve strongly connection.

Features of PCT-212 Push Wire Connector – 2-Pin Conductor:

• Type: Wire connector
• Model: PCT-212
• Port Number: 2
• Suitable hardwire: 0.08 to 2.5 mm2
• Strip length: 9 – 11 mm
• Rated Voltage: 250V
• Rated Current: 32A
