What Are RCA Connectors? Types, Uses, and How They Compare to Other Connectors

There are different ways to transmit audio and video signals. You are likely to come across many options, including RCA connectors, 3.5mm audio jacks, HDMI, and others. Each option has different capabilities and when to use it. For today, our focus is on the RCA connectors to understand how best we can use them for various applications. Here is what you can expect.

What Are RCA Connectors?

RCA connectors are electrical connectors used commonly for transmitting video and audio signals. They get their name from the Radio Corporation of America (RCA), which introduced these connectors in the 1930s. The connectors come with a male plug and a female jack.

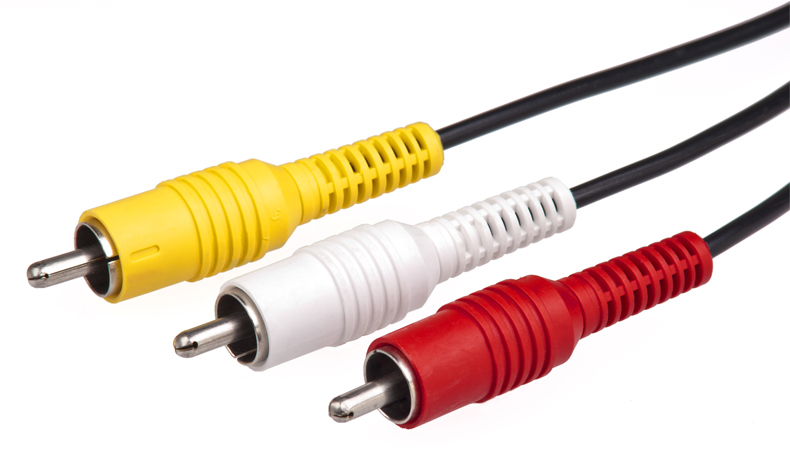

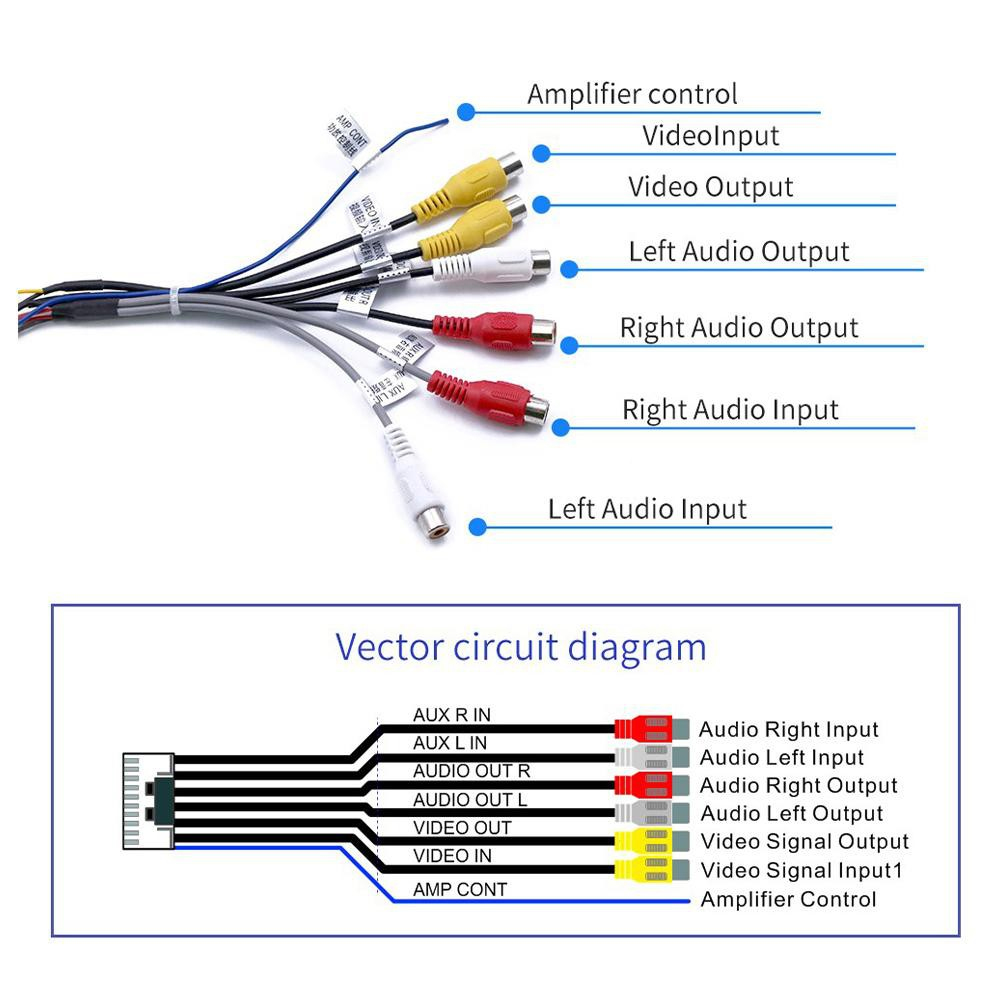

They are widely recognized based on their colour-coded design, including red, white or black, and yellow connectors. Red and black or white are mainly for transmitting audio signals while the yellow cable is for composite video signals.

So, what is more about an RCA connector? Below, we look at the types, applications, how to troubleshoot, and much more.

Types of RCA Connectors

RCA cable connectors can be classified based on how they work. Below are some of the common types you will come across.

Stereo RCA Connectors

These are the common type RCA connectors in the market. They are commonly used for transmitting left and right audio channels. This is the kind of setup you get in audio systems such as amplifiers and CD players.

Mono RCA Connectors

Such connectors are used for single-channel audio signals such as microphones and other mono-audio sources.

Subwoofer RCA Connectors

This RCA connector jack works best for low-frequency signals. Expect it to have thicker insulation and shielding vital for better performance, especially with subwoofers.

Composite Video

The famous yellow RCA cable connector is used for carrying the composite video signal. This includes both the chrominance and luminance information to display the video content in the end.

Component Video

This is an improved version that uses three RCA connectors to carry video information. For this connector, the signal is separated into two-color difference components and luminance for a higher video quality.

Digital Audio

This is often an orange RCA connector. Its work is to transmit digital audio signals such as S/DIF, which offer improved audio quality.

How RCA Connectors Work

Before you can use RCA connectors for audiophiles, let us first understand the components. We have the male RCA plug and female RCA jack that makes up the whole system.

The male RCA plug connector is at the end of the cable and features a central pin with a surrounding metal ring. As for the female RCA jack, it is a socket on a device with a corresponding central hole for the male pin and a metal ring for grounding.

Signal transmission works when you insert the male RCA plug into the female RCA jack. The central pin carries the audio or video signal, while the outer ring completes the circuit as the ground connection.

There is also a plastic insulation layer that separates the signal pin from the ground ring, thus preventing short circuits.

Common Uses of RCA Connectors

With the definition of what is RCA connector in mind, let us look at what the common uses are:

• Connecting stereo audio components such as speakers, amplifiers, and CD players
• Used for video transmission in older devices such as DVD players and VCRs.
• Linking audio sources such as DVD players to receivers and speakers
• We can also use it in connecting head units to subwoofers and amplifiers in cars
• Professionals also use RCA connectors for connecting mixers, studio monitoring equipment, and DJ controllers.
• Digital Audio, such as S/DIF connections

RCA Connector vs. Other Connector Types

RCA jack connectors are not the only way to transmit video and audio signals. Other options may be even better. Here is a quick comparison to help you understand the differences.

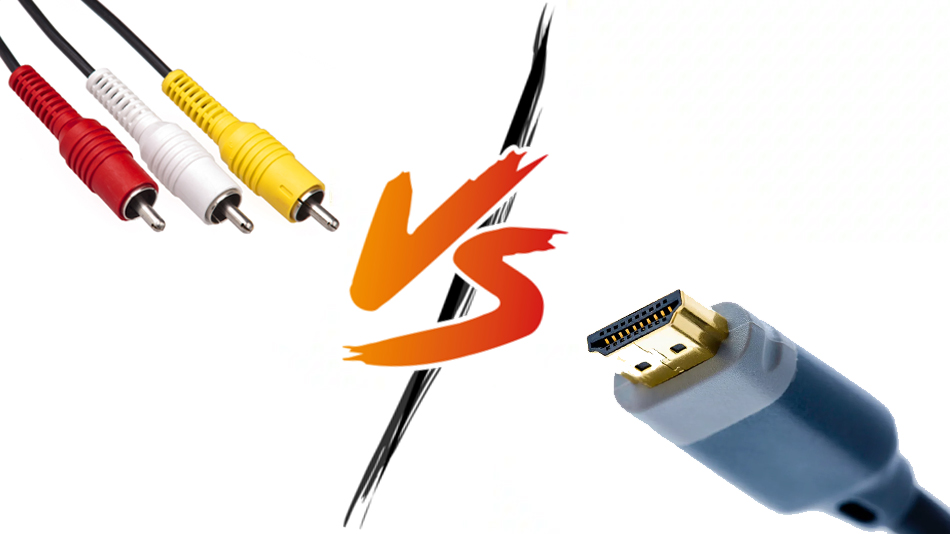

● RCA vs. HDMI

RCA cables are built to carry separate analog audio and composite video signals compared to HDMI, which carries both high definition audio and video signals in one cable. Also, HDMI is preferred for modern devices such as gaming consoles, TVs, and PCs as it has a higher bandwidth and supports digital signals.

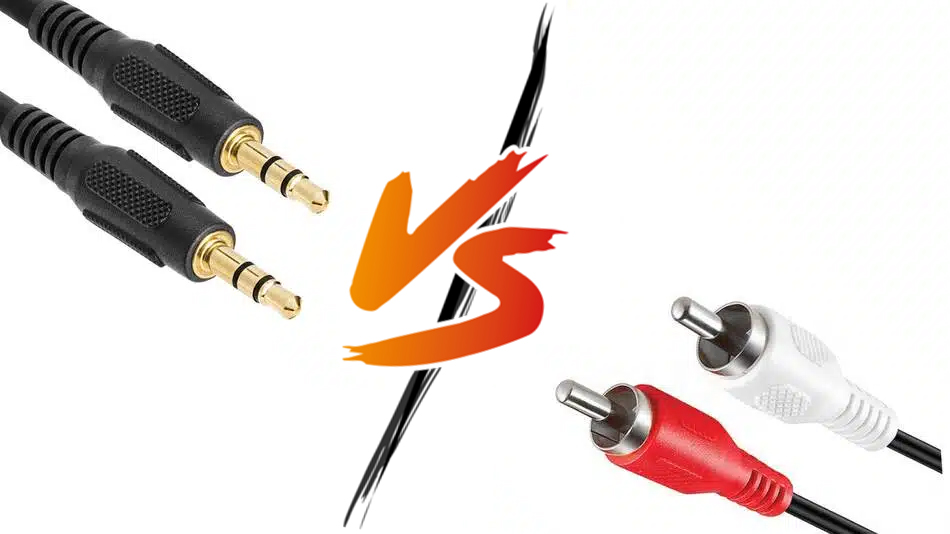

● RCA vs 3.5mm jack

RCA connectors are designed for both stereo audio and composite video in home theater setups or older devices. The 3.5mm jacks are more commonly used for headphones, portable devices, and microphones. You should find them also being used for stereo audio and microphones with TRRS connections.

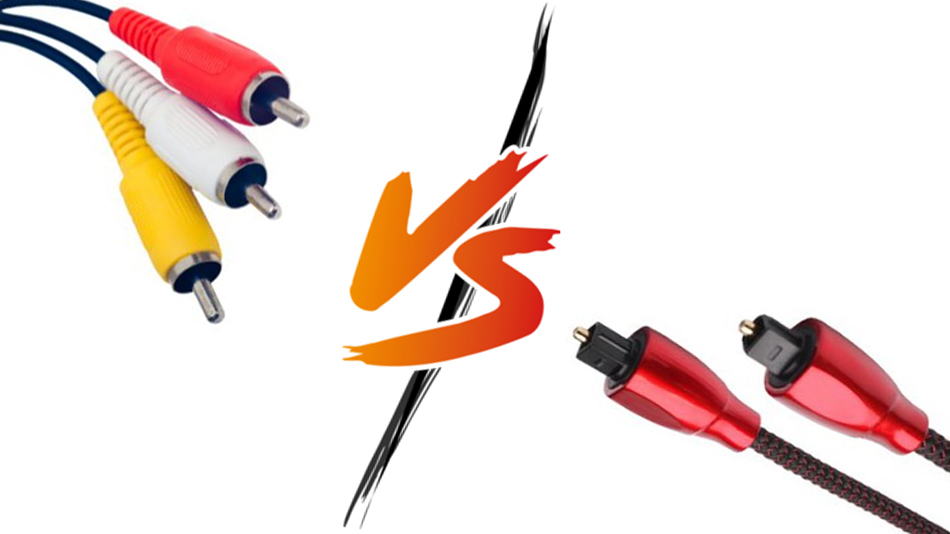

● RCA vs. Optical (TOSLINK)

RCA connectors are used for carrying both digital and analog signals. This is not the same for optical cables, as they only transmit digital audio signals using light pulses. Using light pulses makes the optical cables more resistant to electromagnetic interference. As such, they can offer high-quality audio transmission in home theater systems.

Pros and Cons of RCA Connectors for Modern Setups

Pros

• RCA connectors offer simplicity and ease of use. They are quite straightforward in how they work. Simply plug in and use. Just make sure you follow the color-coded connectors, and you should be okay.
• Compatibility is also wide. You can use them for a wide range of audio and video equipment. This is mostly for older devices such as VCRs, DVD players, and also in newer devices that allow for RCA connectors.
• The cables for RCA connectors are generally inexpensive compared to some other alternatives. They are also readily available, offering budget-friendly options mostly for basic setups.
• RCA connectors are also versatile. They can transmit both audio and video signals, making them suitable for home theater and stereo setups.

Cons

• The cables are mostly used for transmitting analog signals, which may not offer the best performance compared to digital formats such as HDMI.
• They can also be susceptible to interference such as electromagnetic interference leading to buzzing, static, and visual distortions.
• Signal degradation can also happen over longer distances. This may lead to potential signal loss.

How to Use RCA Connectors Properly

Below are steps to take if you want to use the RCA connector from Best Buy correctly.

1. Turn off all the connected devices before making any new connections.
2. Identify the connections based on their color codes. Red and white or black are used for transmitting audio channels, while yellow is for composite video. Since the female RCA jacks are also color coded, it is easier to match them.
3. Next is to match the output to the inputs. This means connect one end of the RCA cable to the input and the other to the corresponding output such as a speaker or television.
4. Gently but firmly push the RCA connector plugs into their corresponding jacks. Having a snug fit is important to ensure they work correctly.
5. Once everything is set up correctly, test the connection to see how well it works.


How to Troubleshoot RCA Connectors

When the RCA connectors do not work as expected, you can troubleshoot by following these steps.

• Do a visual inspection to understand what could be the problem. In this case, check for bent or broken pins. This can be a sign that it is time to replace the RCA connector.
• Assess for loose connections. Connections can become loose over time due to wear and tear or mishandling. So, check to see if the plug is firmly held in place.
• Are there any signs of corrosion? Continuous exposure to moisture could have led to corrosion. If so, replace the RCA cable connector to restore performance.
• Double-check if the cables are correctly set up. Some people might mix up the jacks with plugs even when they are color-coded. Follow the color codes when setting them up for proper performance.
• Check nearby electrical equipment that might be causing any interference to the signal transmission by the RCA connectors.

How to Buy the Best RCA Connectors

There are a couple things you may want to keep in mind if you want to end up with the best RCA connectors. Here are a few of them.

1. Connector Material and Quality

The overall material used in making the connectors can determine the performance of the RCA connectors. Other than the usual materials, you can come across gold-plated connectors. These connectors are important to prevent corrosion and ensure there is a consistent and reliable connection over time.

Make sure there is a snug fit as well with high quality materials. This helps prevent signal loss and reduces the chances for loose connections.

The material can also influence durability. Look for RCA connectors with a robust construction that can withstand repeated use and handling.

2. Shielding

This is another crucial part of RCA connectors that prevents interference from external sources such as electronics. Various types of RCA connectors exist, some with braided and foil shielding methods. This makes them more robust and handle interference better.

Make sure to prioritize cables that offer good shielding, especially if you will use them near other electronics that might introduce interference.

3. Length and Signal Loss

With wired connections, the shorter the cable, the better. An increase in cable length can cause signal degradation. If possible, always choose a shorter cable that is comfortable to connect devices.

You can measure the distance between different components to buy the right length of cables, avoiding unnecessary lengths that might compromise signal strength.

4. Budget and Application

There are various options in the market that will cost differently based on a few things. So, make sure you have the right budget. Sometimes it is okay to spend a little bit more so that you can get the best RCA connectors.

Consider cables from top brands, which ensure that overall performance remains the best even when the cable is used several times over the years.

Conclusion

An RCA connector remains a common option for those looking to transmit audio and video signals. The use of color codes makes it easier to connect an input and output device quickly. It is hard to connect wrongly when the cables and jacks are color-coded. Also, these cables are generally affordable and readily available, making it easy to use them whenever possible. Good care and maintenance practices will leave you with a long-lasting setup for a long time.
