AG1 Battery: Specifications, Applications, and Equivalent

Introduction

The AG1 battery is a small cylindrical button cell battery with alkaline chemistry used in many small electronic devices such as watches, toys, and calculators. The battery is also known as the LR621 battery with impressive performance that makes it stand out. Its silver-oxide version is known as the SR621SW battery.

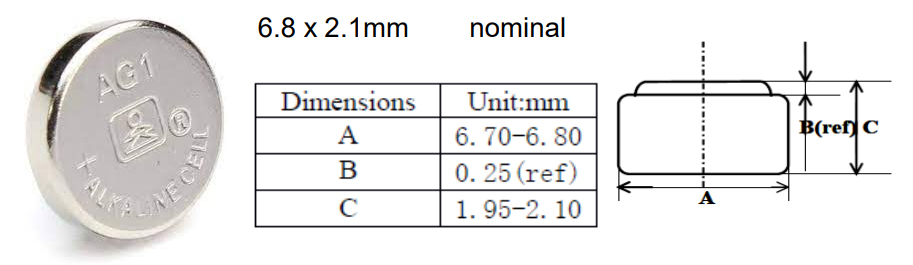

Technical Specifications of the AG1 Battery

For you to get the right AG1 battery equivalent, you have to look at the technical specifications first. This is because the equivalent battery should match all these specifications.

Here are the key specifications of the AG1 button cell battery.

AG1 Battery Chemistry: Alkaline vs. Silver Oxide

The AG1 battery is available as both alkaline and silver oxide battery chemistries. They might look similar in terms of dimensions, but the working is different. We do a quick comparison below to help you understand what each battery chemistry can do.

Choosing the right AG1 batteries is important and mostly depends on the device you need to power. For those who need consistent power, the silver oxide is the right choice while if you want to save money, the alkaline option is the right pick.

Silver oxide AG1 batteries work best for:

• Watches: It helps to keep the analog watches running correctly and operating with high accuracy as the voltage remains stable for long periods.
• Medical devices: This ensures that devices such as glucose meters and digital thermometers offer a reliable performance.
• Precision electronics: It helps with powering complex devices that need a constant stage voltage for proper functioning.

The alkaline battery chemistry works best for:

• Low cost electronics: Such electronics have a low-demand in terms of power. Examples include small toys and calculators.
• Short-term or non-critical use devices: The AG1 battery will also be budget-friendly option if it is made of alkaline chemistry. It will work well for non-frequently used devices or those that are non-critical.

AG1 Battery Equivalents

The AG1 alkaline batteries are the more affordable option you can get today, but they will have a shorter lifespan. This usually makes them suitable for low-drain devices. The most common alternatives include:

• LR621: This is the direct equivalent on the AG1 battery since it has the same chemical composition, size, and voltage.
• LR60: This is another common name that shows it is the same battery.

The other names to watch out for as alternatives include the 164, G1A, L621, and the LR620.

There are also the silver oxide equivalents. These offer a longer lifespan with a consistent voltage output. The common alternatives are:

• 364: This is the common designations to the silver oxide version of the AG1 battery.
• SR621SW: This is another option that manufacturers use to the label the silver oxide version of the AG1 battery.

The other names for the silver oxide battery equivalent include SR60, V364, D364, and GP364.

How to Replace an AG1 Battery

It is quite simple to replace the AG1 battery in a device. You simply need to follow these steps to complete the process.

1. Start by removing the cover of the battery compartment
2. Remove the old battery. It depends on the design. Some have a small spring that easily pops the battery once the compartment is open.
3. Insert the new AG1 battery. Take note of the orientation. Keep the positive side facing up just as the old one was.
4. Ensure the battery is well aligned in place before closing the battery compartment.
5. Turn on the device and check to see if it is working as expected.

Common Problems and Troubleshooting

Battery leaking is possible if the batteries have been stored in extreme temperatures. The same can happen if you mix old and new batteries. Also, mixing different types of batteries in the same device may lead to leaking.

You can also prevent these leaks by making sure you remove the batteries if you will not be using the device more often. Also, always make sure you are using the same type and brand of battery in a device.

Also, the device might not work after replacing the battery. The issue mostly is because of wrong polarity. You might have inserted the AG1 batteries with the positive side facing down. It should be up or as the old battery was inserted.

The device itself may has sustained dmage from the old leak. This is especially when it is left in that state for a long time. Always clean any battery leaks before inserting a new battery.

How about the battery swelling? A swollen battery may indicate there is a build-up of internal gas pressure. This is largely because of overcharging for the rechargeable types, extreme heat, and internal damage. In this case, stop using the device. Do not charge or use a swollen battery.

How to Identify Fake or Low-Quality AG1 Batteries

1. Check the battery packaging to find signs of counterfeit. Examples include mispelled works, inconsistent fonts, blurry printing, and more. Expect the genuine products to have high-quality packaging with clear branding and security seals.
2. Authentic batteries often come with professional seals. The aim of these seals is to ensure you have a quality product. Fake batteries generally feel lifer and flimsy because of the inferior materials.
3. How about the performance? Of course the counterfeit batteries will not perform as good as the original batteries.
4. We recommend buying from a trusted seller or authorized dealers. Check out the official brand website for recommendations of their dealers or buying from the company direct if it allows.

Conclusion

The AG1 battery is good in many ways. We can see that it works quite well in many devices by providing stable power to keep the devices working correctly. Always check out the AG1 battery equivalents to ensure that you can always get the right AG1 batteries for your device. Also, always buy from top brands to get the desired performance.
